| Prod Model: |

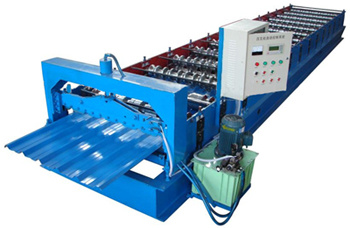

metal tile forming machine |
Product Description
Technical Parameters
1. Material spec: Aluminium, colored steel and galvanized steel
2. Thickness of coil sheet: 0.2 - 0.8 mm
3. Coil width: 1000mm
4. Working speed: 12m/min
5. Power requirement:
A) Main motor power: 3kW
B) Hydraulic station power: 3kW.
6. Passive uncoiler max. Capacity: 4, 000kg
7. Quantity of stands: 14 groups
8. Controlling system: PLC
9. Ype of cutting: Roll-formed and length-set cutting
10. Machine dimension: About 8, 000 x 1, 800 x 1, 400mm
11. Total weight: About 9, 000kg
12. Voltage: 380V 3 phase 60Hz or at buyer's requirement
13. Working flow: Decoiling the sheet-sheet guiding-roll forming-measure length -cutting the panel-panels to the supporter.
Guangdong Huaxia Building Materials Co., Ltd., is a subsidiary of Huaxia Group, which is one of the largest light structure product manufacturers in Southern China. We are located in Zhanjiang, the biggest port city in southern China.
Our main export business scopes cover following items:
1)Metalllic sheets: Stone-coated roofing tile, steel coil sheets, sanwich panel, metallic tile sheets, corrugated sheets, floor decking sheets, C&Z purlins, H beams, steel structures
2)Roll forming machines: The products are mainly used in steel structure industry for producing wall and roof protective structure colorful steel plate, C&Z shape purlin, load-bearing plate of buildings.
3)Aluminum windows and doors.
4)Car Muffler: Many sorts of car muffler made in aluminized steel, galvanized steel and stainless steel.
Our factory cover about over 30000 m2, and has a group of experienced building, professional design and management personnel, capable of undertaking various kinds of contracted construction and decoration projects of such materials, meeting the demands of different industries for high-class and new type building products.
We has passed the evaluation of ISO9001: 2000 certification. We have been done building and steel business over 10 years. Over the past years, we have been sticking to the tenet of "quality first, credit standing first and service first", wholeheartedly providing domestic and foreign clients with quality services based on solid power, consummate techniques, advanced technological facilities, quality products and excellent reputation.
We warmly welcome friends from all over the world to enquire, to hassle and to bargain with us on basis of mutual benefit.
