Product Description
Corrugation Machines, Barrel or Drum type Rib Corrugation Machines,

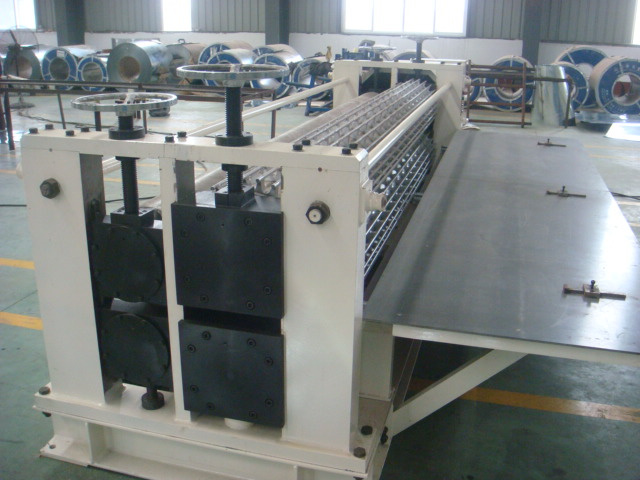

This is Barrel type Corrugation Machines or may call Drum type Corrugation Machines or Metal Sheet Corrugation Machines, made for full hard, semi hard and soft G. I. Sheets
Title:
BARREL/DRUM TYPE/METAL SHEET CORRUGATION MACHINE
Category:
General Category
Specification:
Coil Material G I Sheets or Aluminium Sheets
Coil Weight N. A.
Sheet Thickness Range 0.11 to 2.0
Sheet Width Range 750mm - 1220mm
Sheet Quality 10'/12' / 14' / 16
Description:
MAIN PARAMETRES
Barrel or Drum type Corrugation Machines or G I Sheet Corrugation Machines are made on the following thickness ranges:
0.11 mm. - 0.16 mm.
0.18 mm. - 0.35 mm.
0.18 mm. - 0.63 mm.
1.0 mm. - 2.0 mm.
Title:
BARREL/DRUM TYPE/METAL SHEET CORRUGATION MACHINE
Category:
General Category
Specification:
Coil Material G I Sheets or Aluminium Sheets
Coil Weight N. A.
Sheet Thickness Range 0.11 to 2.0
Sheet Width Range 750mm - 1220mm
Sheet Quality 10'/12' / 14' / 16
Description:
MAIN PARAMETRES
Barrel or Drum type Corrugation Machines or G I Sheet Corrugation Machines are made on the following thickness ranges:
0.11 mm. - 0.16 mm.
0.18 mm. - 0.35 mm.
0.18 mm. - 0.63 mm.
1.0 mm. - 2.0 mm.
Input Sheet:
Length of the Sheet - 10'/12' / 14' / 16'
Width of the Sheet - 750 mm. - 1, 000 mm. OR 1, 220 mm.
Standard profile dmensions Large Corrugation:
Depth of Corrugation - 18 +/- 1.0mm.
Pitch of Corrugation - 76 +/- 1.5mm.
Small Corrugation:
Depth of Corrugation - 9.5 +/- 0.5mm
Pitch of Corrugation - 31.5 +/- 1.0mm.
Or as per customer choice
Quality of Sheets - Full hard / Semi hard / Soft
No. Of Sheets per feeding - 1-4 PCS. Depends on sheet thickness
Motor Capacity - 7.5HP / 10HP / 15HP
Wt. Of the Machine - 6, 000 Kgs. To 7, 000 Kgs.
DESCRIPTION:
NO. OF ROLL STAND 2 ( FABRICATED )
NO. OF CORRUGATION ROLL 2
NO. OF PLAIN ROLL 2
FABRICATED BASE FRAME 1
FEEDING TABLE 1
TABLE SUPPORTING BRACKET 2
MECHANICAL SCREW WITH HAND WHEEL FOR ROLL LIFTING ( ADJUSTMENT )
TABLE BETWEEN CORRUGATION ROLL AND PLAIN ROLL
EXIT TABLE GEAR TRAIN AND GEARED MOTOR
