| Prod Model: |
cx1000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

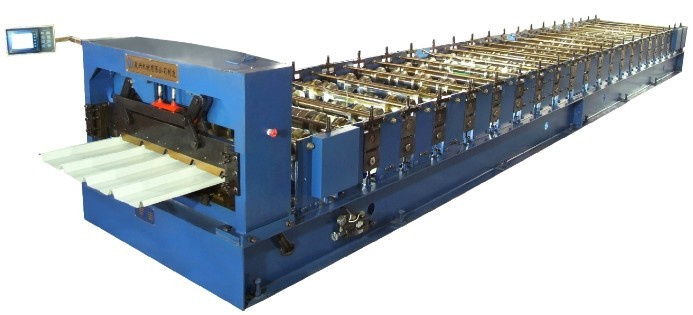

Product Description
(1)Range of product(mm): 1220(1250mm)× (0.4-0.8mm)
(2) Working speed: 10-12m/min
(3) Number of roller stations: 22 stands
(4) Material of roller: Chromeplated 45 STEEL
(5) Material of main shaft: Hardened and tempered 45 STEEL
(6) Main motor power: 2.2 kw
(7) Hydraulic pressure: 10~12 MPa
(8) Electrical control system: PLC
(9) The main shaft diameter: 76mm
(10)Main Motor Power: 4kw
(11) Cutter Material: Tempered Cr12 iron
(12) Machine Length: 9300mmX1400mmX1300mm
Jiangsu Chenxing Machinery Company is a joint and Science & Technology enterprise with 30 years manufacturing experience to in research, produce and sale automatic roll forming machine, Slitting and Dividing Production Line and PU Foaming Machine Line. Chenxing is carrying out ISO9000: 2000quality administration system and CE Electric administration system. Now chenxing wenzhou factory is 40 minutes driving to wenzhou airport. For 2008, we start to build a new factory of 30000 square meters at Nantong (1.5 hours to Shanghai). Chenxing have a good team for international service. Chenxing machinery company is eager to establish solid relationship in cooperation with customers home and aboard and create resplendence together.
