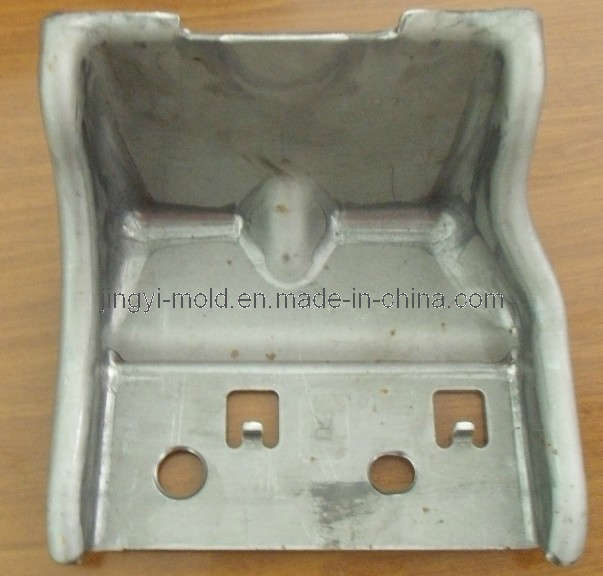

| Prod Model: |
JY-34 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Process: |
Forming Process |
| Industry: |
Stamping Material |
Product Description
with over ten years of experience to draw upon, Jingyi Mold is an internationally recognized leader specializing in the design and construction of exceptional quality tooling and component products. Our services include Tool and Die, CNC machining, Stamping, Wire EDM and Tooling Design.
Product material: SPCC, SUS304/303, SECC, carbon steel, CRS, HRS, mild steel, spring steel, aluminum, brass, copper, etc.
Product thickness: 0.05mm~12mm
Standard: DANLY, KALLER, FIBRO, MISUMI, etc
PROCESS: Purcahse order, Engineering appraise and Request for change, Layout design, New product meeting, Die design and Material plan, Incoming material check, Die processing, Die Assembly, Die trial, Sample check, Sample internal approval, Sample submission, Die Buyoff
FINISH: Hard chrome/Nitrogen/TD treatment etc...
INSPECTION: Layout will send to customer for approval before die making. 5~10 Samples with full dimension report send to customer for approval before delivery. CD record with construction/part drawing will be delivered with the dies.
PACKAGING: Wooden case, fumigation treatment.
LEADTIME: 15~60 days (depending on different products)
|
Description of our products |
|
Product material |
SPCC, SUS304/303, SECC, carbon steel, CRS, HRS, mild steel, spring steel, aluminum, brass, copper, etc. |
|
Product thickness |
0.05mm~12mm |
|
Standard |
DANLY, KALLER, FIBRO, MISUMI, etc… |
|
PROCESS |
Purcahse order→ Engineering appraise and Request for change→ Layout design→ New product meeting→ Die design and Material plan→ Incoming material check→ Die processing→ Die Assembly→ Die trial→ Sample check→ Sample internal approval→ Sample submission→ Die Buyoff |
|
FINISH |
Hard chrome/Nitrogen/TD treatment etc... |
|
The type of surface treatment depends on the volume or according to customer' s requirement |
|
INSPECTION |
Layout will send to customer for approval before die making. |
|
5~10 Samples with full dimension report send to customer for approval before delivery. |
|
CD record with construction/part drawing will be delivered with the dies. |
|
PACKAGING |
Wooden case, fumigation treatment. |
|
LEADTIME |
15~60 days (depending on different products) |
Dongguan Jingyi Mold Co., Ltd., is a manufacturing company in which Jingyi Industrial (Hong Kong) Co., Ltd., invested, funded in 1996, located in Banhu Community, Huang jiang Town, Dongguan City, Guangdong Province. With its own independent factory (total area of 8, 000 square meters), the company has mold department, heat treatment department, machining department, stamping department. The company has ISO9001-2000 international certification system since 2002.
We specializes in progressive die, transfer die, high-speed punching die and line die for presses in range from 110 ton to 400 ton in various field, such as precise metal mould, automotive, communications-equipment, office facilities, monitor, mainframe-box, terminals, shrapnel, stretching and so on.
The company not only has its own strong technical force and good management, also brings in the advanced equipment from Japan, Taiwan and Europe. We have processing machine, precise CNC, slow precise wire cutting machine (SODICK), grinding machine, drilling machine, hand-grinding machine, 100T-400T punching machine. We have separate heat treatment workshop, imported vacuum furnace for heat treatment. We have many detection devices, such as Three-D measuring instrument, measuring projector and microscope. All of which serve to guarantee the product quality and delivery.
We continue to absorb well experience from European and Japanese counterparts, learn from their advanced technology and management mode, to meet the demands for high product quality.
We have customers from all over the world and have won the support and trust from customers of all walks with first rank product, scientific management and consummate service
With the principle of "quality first, integrity, cooperation and continual improvement", we will provide our customers with high quality products and100% on-time delivery, let us join together to create greater glory.
