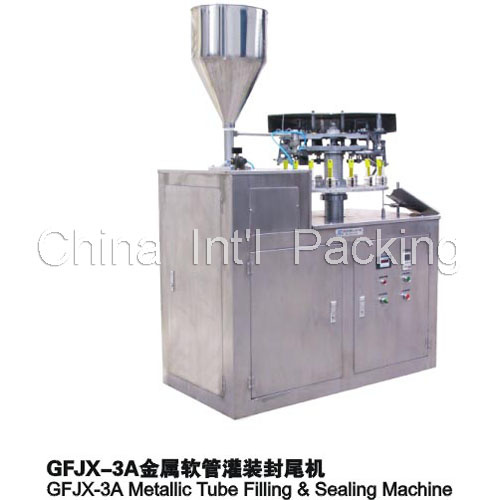

Metallic Tube Filling Machine

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Metallic Tube Filling & Sealing machine is used for fill liquid material into metal tube with fixed quantity and fold the tube end. It is widely used for the packing of pharmaceutical, cosmetic, foods, and chemical industry. For example: Ointment, gooey, AB Glue, super glue, epoxy glue, skin oil, hair dye, shoeshine, toothpaste, etc. Liquid and poultice materials.

Work Course:
Manual Insert the metal tube into the index plate tube base ( 16 place), using the machine drive automatism locomotion, photoelectricity inspect that confirm tube basel have tube and then automatism filling the tube, after four-fold sealing.

Structural features:
The filling quality easy to adjust, the filling quality is tunable, the computation precision is higher, stability is well. If Instead pedestal that is apply the filling and the sealing of the all kinds of metal tubes, sealing figure is beauty and trim, the sealing is tightness. This machine adopt the high-quality stainless steel material to make of contacting the material.

Specification:
1. Power supply: AC 220V 50Hz
2. Working temperature: 5_50
3. Filling quantity: 5ml__180 ml
4. Quantity error: < 1%
5. Motor power: 1.1kw
6. Compressed air: Pressure 0.6--0.7Mpa
7. The capacity: 10-50tubes/min(adjustable)
8. Dimension: 1000x600x1700(mm)
9. Weight: 400kg
