Product Description

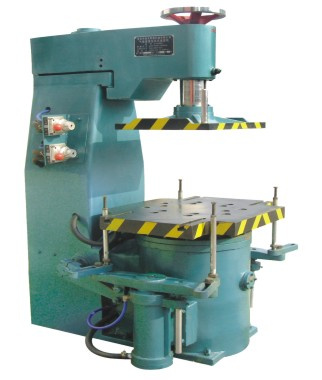

Z145WA/B Microseism Squeeze Molding Machine
Technical characteristics:
Optimal design of the structure, the fuselage of the machine adopt the square chest and frame structure, so it can significantly increase the rigidity of the fuselage!
The machine adopt the jolting technology, so it can significantly increase the compressive stress to make the hardness up to HB90 and upgrade one level about the surface roughness, so it can guarantee the quality
The shock part of the machine is buffer spring, so it can effectively reduce the impact to foundation
The pattern drawing mechanism adopt the cylinder, crank, connecting rod, synchronizing shaft to achieve the synchronism
The control part, it adopts all pneumatic components to achieve the global function, simple operation and convenient to maintenance
The machine is convenient to operate, itcan visual the sand mould, human operation, so it is effective to increase the productivity
Technical parameters:
Type Z145WA Z145WB
Foundry flask maximum dimension(mm) 500X450X200 550X450X200
Worktable size(mm) 600X550 600X550
Jolting load(kgf) 300 300
Compressive stress(kgf) 5000 6300
Molding process(mm) 180 200
Productivity(box/h) 40-60 40-60
Jolting cylinder diameter(mm) 150 150
Compress press 160 160
Consumption of free air(M ³ /box) 0.4 0.4
Overall dimension(LXWXH)mm 1300X800X1700 1200X800X1680.
Our company is the leader of shot blasting, foundry machinery industry in Qingdao, China.At present is the foundry machinery industry technical content in the most high, most of all, yield most largest production base, a Chinese "offshore" project and the Beijing 2008 Olympic Games"nest", the "water cube" engineering contractor cooperative enterprise.Our company has 470 staff, 120 professional and technical staff, our factory covers an area of 120acres, and has a kind of mechanical processing and manufacturing equipment for more than 200sets, with an anual output of more than 1500 mechanical device(set of) production capacity, products have been sold in Europe, North America, East Asia, Southeast Asia, 12 Countries and regions, and ISO9001:2008 international quaility system certification.We have 40 years experience in the mechanical production, capable of design, technology experts, skilled machining, the installation team, adoption of international standards on the manufacture of the production process, perfect pre-sale and after sale service.
