Prod Model: |
15A |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Application: |
Mineral Melting |
Capacity: |
1-2kg |
Working Time: |
5 Mins |
Smelter: |
Provided |
Plier: |
Provided |
Crucible Furnace: |
Provided |
Product Description

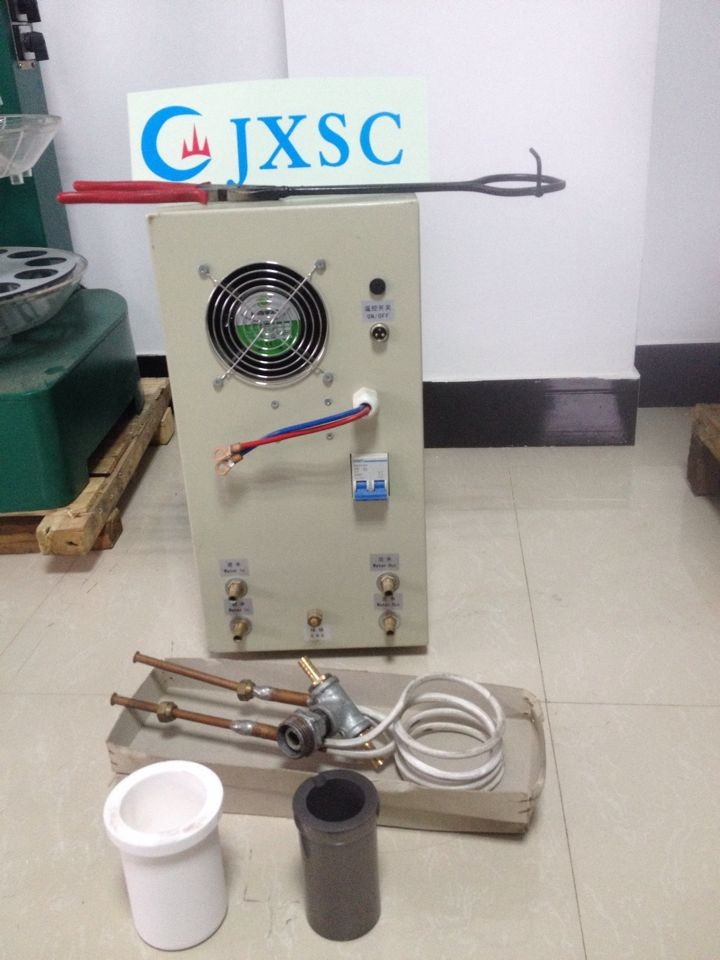

Gold melting induction furnace, gold melting furnace is mainly used for melting, refining, purification, reverse mold by casting crucible after heating the metal container instantly begins to melt, and sprinkle beads granulation processes.
Gold melting induction furnace, gold melting furnace is mostly used to smelt metals:
Platinum, palladium, rhodium, gold, silver, copper, steel, aluminum, activated carbon gold gray, Sands, electrolysis mud, gold and silver powder, tin ash dross and so on.
Working conditions of small gold melting furnace, portable gold melting crucibles, gold machine:
1. A single molten metal quantity: 1g to 100 kgs.
2. A single melting time: 2 minutes to 40 minutes
3. Maximum temperature: 1500-2000 degrees.
Fetures of small gold melting furnace, portable gold melting crucibles, gold machine:
1. Adopts all-solid-state power conversion module Siemens IGBT technology.
2. With full range of protection features such as: Over-current, water shortages, overheating, over-voltage, short circuit, lack of protection, greatly improving the reliability of the equipment and convenient equipment maintenance.
3. Portable, Small, space-saving, light weight, eacy to move.
4. No need debug, After connectting through electrical&water can be used.
5. Easy operation, suitable for factory, family, institute & Laboratory smelting experiments
6. Can melt various kinds of metals.
7.24 hours continuous smelting capacity.
Model |
15A |
25A |
35AB |
45AB |
60AB |
80AB |
100AB |
120AB |
Power |
2kw |
5kw |
10kw |
15kw |
20kw |
30kw |
45kw |
70kw |
Voltage |
220V |
380V |
380V |
380V |
380V |
380V |
380V |
380V |
High Frequency |
30~50KHZ |
Mid Frequency |
1~15KHZ |
Machine Weight |
15KG |
25KG |
35KG |
70KG |
70KG |
90KG |
120KG |
150KG |
Capacity of the mineral |
1~2kg |
1~4kg |
1~8kg |
1~15kg |
1~25kg |
1~40kg |
1~50kg |
1~100kg |
Working Time |
≤5mins |
≤5mins |
≤10mins |
≤15mins |
≤20mins |
≤30mins |
≤40mins |
≤40mins |
