| Prod Model: |
ML1800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Price: |
Best |
| Imprinting Type: |
Platen |
| Placing Form Of Template: |
Horizontal |
| Die Cutting Tool: |
Metal Mold |
| Automatic Grade: |
Semi-Automatic |
| Application: |
Paper Packaging Materials |
Product Description
Product Description:

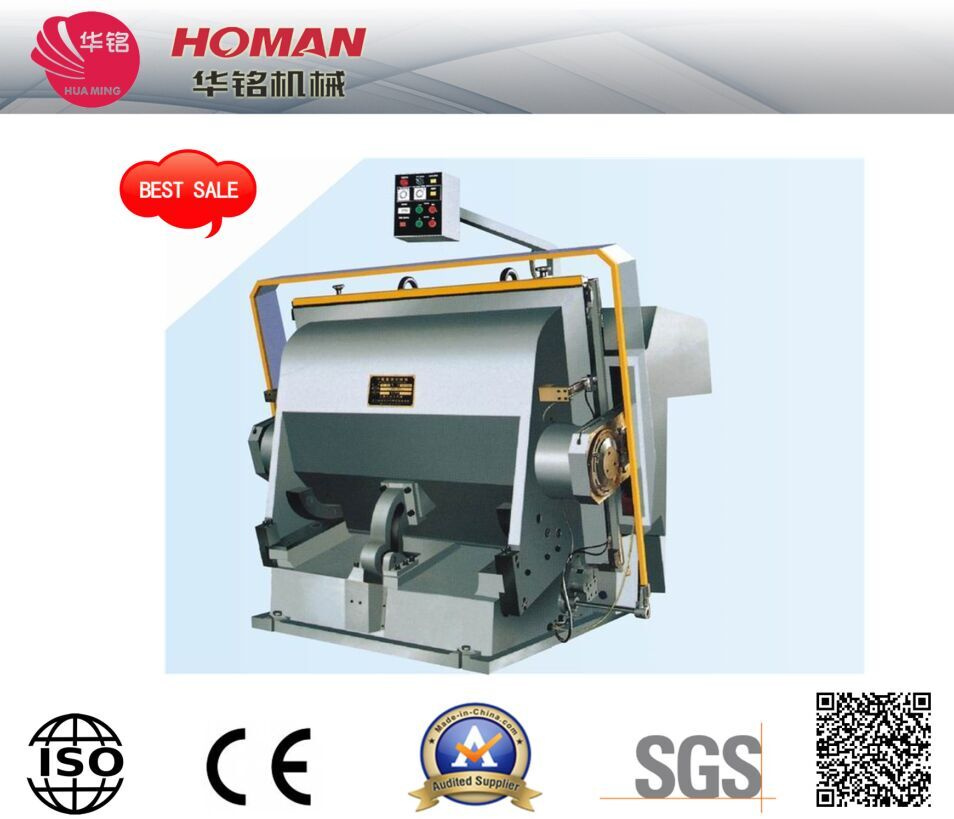

Creasing and Die Cutting Machine is special equipment for creasing and cutting ordinary cardboard, corrugated board, plastic and leather. It's very applicable to printing packaging decoration and plastic industries. The machine has compact structure, in workmanship, big pressure, high precision and easy and reliable operation etc.
Main Specification :
* High strength due to one piece casting by using top quality material for the machine body.
*Smooth running, big pressure and low noise are obviously remarked as lnter gear input and helical gear output mechanism is adopted.
*Single plate electromagnetic clutch is sensitive and reliable.
*Operational altitude is reasonably arranged, movable platen opens to its optimum.
*The electrical system is designed in conformity with IEC standard.
*With functions as single, continuous operation and opening dwell. And the dwell time is adjustable.
*The safety system is reliable.
*With concentrated lubricating system.
Model |
Inner Chase Size |
Speed |
Max.Rule Length |
Motor Power |
Machine Weight |
Overall Dimensions |
PYQ401C |
750×520mm |
25 |
15m |
2.2kw |
2000kg |
2300×1500×1500mm |
PYQ203C |
930×670mm |
23±3 |
25m |
4kw |
3000kg |
2350×1900×1800mm |
PYQ203A |
930×670mm |
23±3 |
30m |
5.5kw |
3500kg |
2350×1900×1800mm |
ML1040 |
1040×720mm |
23±3 |
30m |
5.5kw |
3800kg |
2350×1900×1900mm |
ML1100 |
1100×800mm |
20±2 |
35m |
5.5kw |
4500kg |
2450×2100×1900mm |
ML1200 |
1200×820mm |
20±2 |
35m |
5.5kw |
5000kg |
2500×2100×1900mm |
ML1300 |
1300×920mm |
15±2 |
40m |
7.5kw |
6000kg |
2550×2100×1950mm |
ML1400 |
1400×1000mm |
15±2 |
45m |
7.5kw |
6500kg |
2650×2100×2000mm |
ML1500 |
1500×1050mm |
14±2 |
45m |
7.5kw |
7000kg |
2700×2100×2150mm |
ML1500A |
1500×1150mm |
14±2 |
45m |
7.5kw |
7300kg |
2700×2100×2200mm |
ML1600 |
1600×1250mm |
13±2 |
50m |
11kw |
11500kg |
2800×2250×2300mm |
ML1800 |
1800×1280mm |
13±2 |
60m |
15kw |
13000kg |
3000×2250×2350mm |
ML2000 |
2000×1400mm |
12±2 |
65m |
15kw |
15500kg |
3100×2330×2600mm |
ML2500 |
2500×1400mm |
12±2 |
70m |
18kw |
18500kg |
3600×2330×3100mm |
*Shipping time
Delivery within20 days upon your payment.
*Packaging
Plastic film wrap and export standard wooden case
