| Prod Model: |
ML2800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Price: |
Best |
| Imprinting Type: |
Platen |
| Placing Form Of Template: |
Horizontal |
| Die Cutting Tool: |
Metal Mold |
| Automatic Grade: |
Semi-Automatic |
| Application: |
Paper Packaging Materials |
Product Description
Product Description:

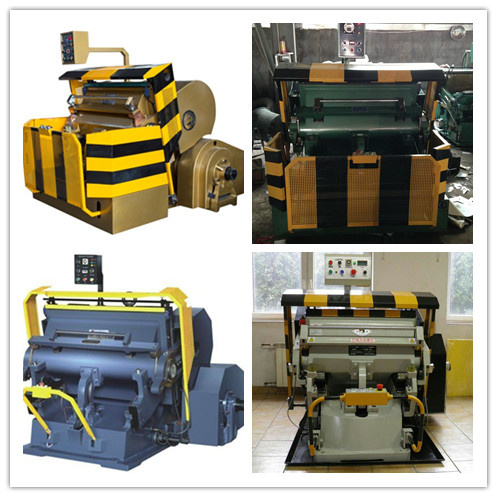

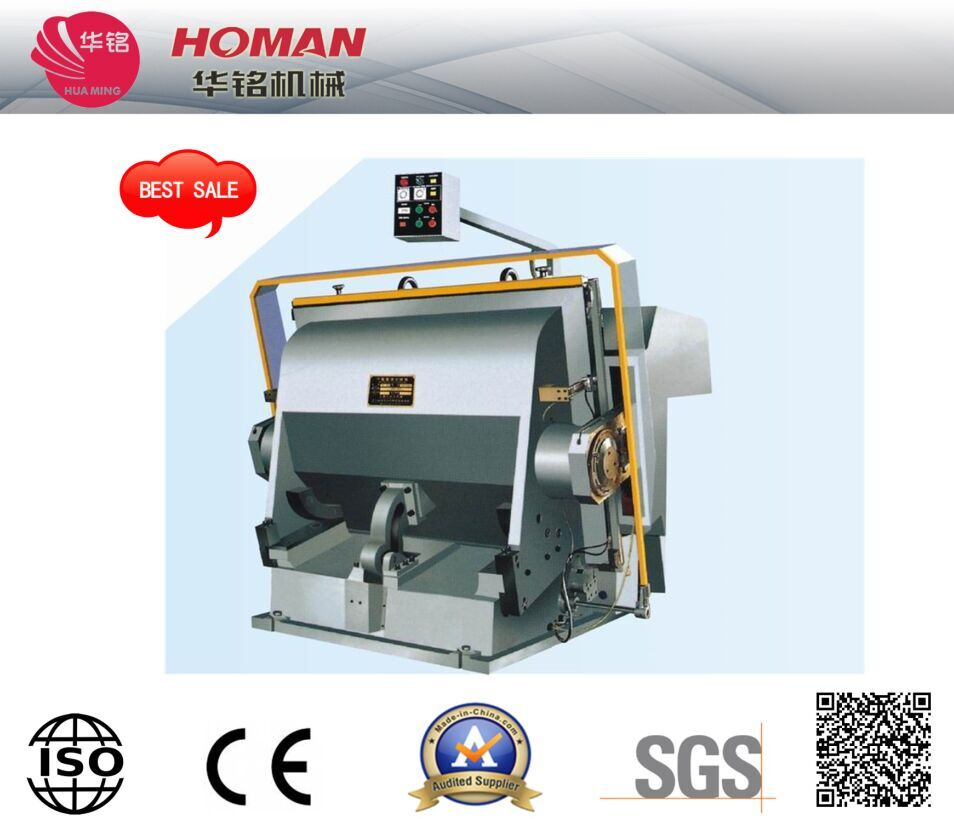

Creasing and Die Cutting Machine is special equipment for creasing and cutting ordinary cardboard, corrugated board, plastic and leather. It's very applicable to printing packaging decoration and plastic industries. The machine has compact structure, in workmanship, big pressure, high precision and easy and reliable operation etc.
Main Specification :
* High strength due to one piece casting by using top quality material for the machine body.
*Smooth running, big pressure and low noise are obviously remarked as lnter gear input and helical gear output mechanism is adopted.
*Single plate electromagnetic clutch is sensitive and reliable.
*Operational altitude is reasonably arranged, movable platen opens to its optimum.

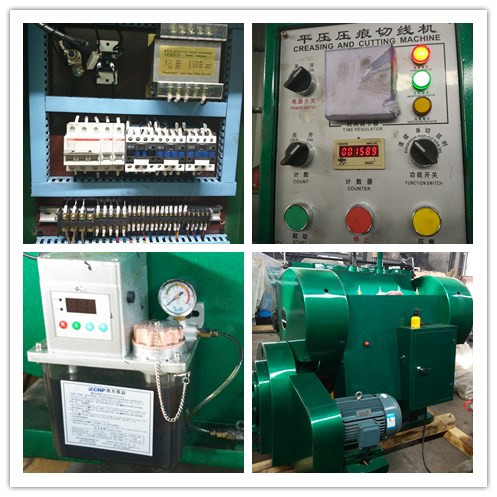

*The electrical system is designed in conformity with IEC standard.
*With functions as single, continuous operation and opening dwell. And the dwell time is adjustable.
*The safety system is reliable.
*With concentrated lubricating system.
Model |
Inner Chase Size |
Speed |
Max.Rule Length |
Motor Power |
Machine Weight |
Overall Dimensions |
PYQ401C |
750×520mm |
25 |
15m |
2.2kw |
2000kg |
2300×1500×1500mm |
PYQ203C |
930×670mm |
23±3 |
25m |
4kw |
3000kg |
2350×1900×1800mm |
PYQ203A |
930×670mm |
23±3 |
30m |
5.5kw |
3500kg |
2350×1900×1800mm |
ML1040 |
1040×720mm |
23±3 |
30m |
5.5kw |
3800kg |
2350×1900×1900mm |
ML1100 |
1100×800mm |
20±2 |
35m |
5.5kw |
4500kg |
2450×2100×1900mm |
ML1200 |
1200×820mm |
20±2 |
35m |
5.5kw |
5000kg |
2500×2100×1900mm |
ML1300 |
1300×920mm |
15±2 |
40m |
7.5kw |
6000kg |
2550×2100×1950mm |
ML1400 |
1400×1000mm |
15±2 |
45m |
7.5kw |
6500kg |
2650×2100×2000mm |
ML1500 |
1500×1050mm |
14±2 |
45m |
7.5kw |
7000kg |
2700×2100×2150mm |
ML1500A |
1500×1150mm |
14±2 |
45m |
7.5kw |
7300kg |
2700×2100×2200mm |
ML1600 |
1600×1250mm |
13±2 |
50m |
11kw |
11500kg |
2800×2250×2300mm |
ML1800 |
1800×1280mm |
13±2 |
60m |
15kw |
13000kg |
3000×2250×2350mm |
ML2000 |
2000×1400mm |
12±2 |
65m |
15kw |
15500kg |
3100×2330×2600mm |
ML2500 |
2500×1400mm |
12±2 |
70m |
18kw |
18500kg |
3600×2330×3100mm |
*Shipping time
Delivery within20 days upon your payment.

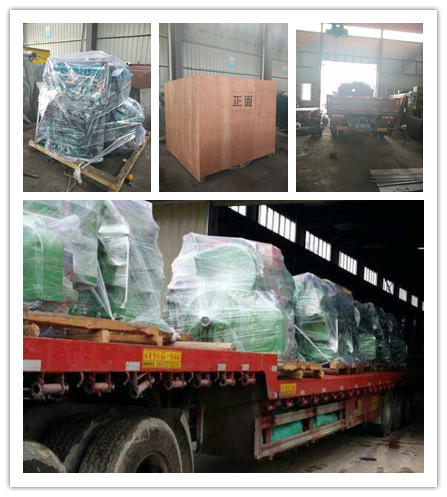

*Packaging
Plastic film wrap and export standard wooden case
Huaming Machinery Co., Ltd. is a professional manufacturing plant of post-printing equipment which was recently invested by Ruian Huadu Printing Machinery Co., Ltd. The original Company was founded in 1999. It integrates R&D, design, manufacturing, sales and services into one. Over the past 15 years, the Company has been committed to the R&D of high and new technologies and manufacturing of products, constantly introducing the most advanced foreign technologies, and combining with the advanced technologies, rich experience and leading manufacturing techniques of domestic senior engineers to build and launch a new generation of high-efficient post-printing equipment.
The equipment manufactured by Huaming includes die cutting machine(heating system), hot foil stamping and die cutting machine, film laminating machine, UV coating machine. Our equipment are sold to 50 foreign countries. We have established 96 sales outlets and 8 offices around the country, as well as 68 agents around the world, so as to provide high-quality and fast before-sale and after-sale services for our customers.
Huaming has become a national hi-tech enterprise by constantly drawing advanced technologies from international similar products and giving play to their own outstanding innovation ability. Its products owns 23 national patent technologies and have successively passed the ISO9008 system certification, CE certification and other professional quality certifications. Huaming manufacturing base II is located in the Ruian, Wenzhou City, Zhejiang, covering an area of over 13000 square meters and construction area of over 20000 square meters. It has more than 200 employees, including 20 senior engineers in the R&D center. By implementing the 5S site management mode, from inspection of outsourcing parts, processing of parts, whole machine assembly, ex-factory inspection and each process has the system guarantee.
Huaming is striving to build a internationally famous brand from the perspective of internationalization. It adheres to the principle of "market-oriented, service-driven, survive with quality and Science and technology for development".
In the light of such policies as adapting to market demands, basing on science and technology and seeking market share through quality, Huaming aims to reduce cost and market competition, provide better services for customers at home and abroad, and enable customers to obtain greater benefits.
