Mold Metal Engraving CNC Router Machine (casting iron body)

Prod Model:	TZJD-4050M
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Area:	400mm*500mm*200mm
Spindle:	3kw Permanent Torque Spindle
Body:	Casting Iron for The Whole Body
Working Table:	Was Movable
Necessary System:	Dust Cover Device
Motor:	Stepper
Driver:	Leadshine
Inverter:	Fulling
Software:	Type3 Artcam
Working Voltage:	Single-Phase 220V/50Hz
Carving Material:	Stainless Steel
Certification:	SGS FDA

Product Description

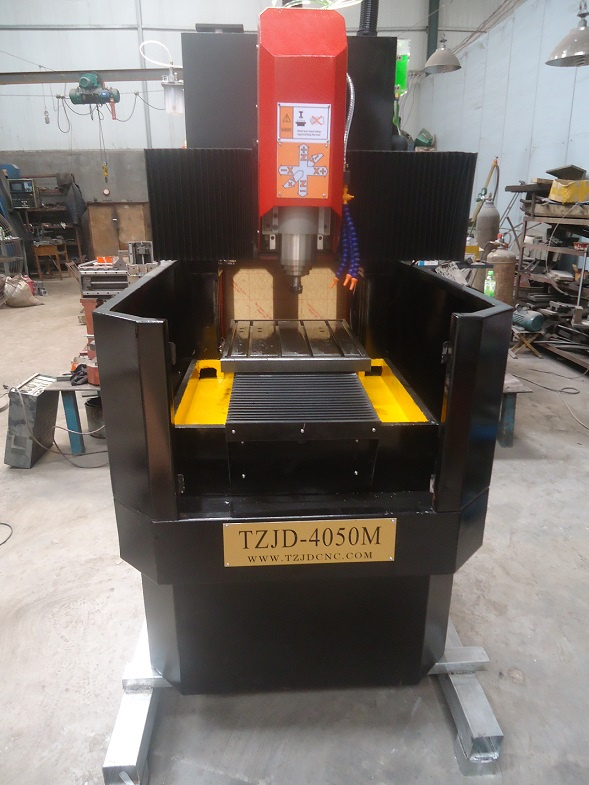

Mold Metal Engraving CNC Router machine(casting iron body) TZJD-4050M

Specification Parameter

Description	Parameter
	TZJD-4050M
Working Area (X*Y*Zmm) Outside dimension	400mm*500mm*200mm 800mm*1000mm*1600mm
Max Engraving Speed  Max operating speed	6000mm/min 10000mm/min
Frame	Cast Steel
Spindle power(KW)	2.2KW/3KW/4.5KW/5.5KW
Max. Power Consumption(Without spindle)	1.2KW
Spindle Speed      Maximum cutting thickness Maximum operating speed	6000-24000rpm     30mm 10000mm/min
Resolution	0.005mm
Repeatability	0.01mm
Voltage	AC220V,50Hz/60Hz(option:AC110V,50Hz/60HZ)
Drive motor	Stepper(option:Servo motor)
Working Dictate	G Code*.u00*.mmg*.plt
Operating system	Nc-studio/DSP optional
Software environment	Windows98/2000/xp/7
Interface	USB
Flash memory	128M(U Disk)
Software Compatability	Type3,,Ucancam,Artcam Software)
Diamerer of cutter	3.175, 6mm, 12.7mm, 2,1, etc.
Running Environemt	Temperature: 0ºC~45ºC
	Relative humidity: 30%~75%
Machine necessary	Dust collector system, spindle cover, Japan Panasonic Servo motor(optional),  Auto-oiling system, Tool-sensor, water tank system, water-cooled system, spray mist cooling system.


Applicable materials

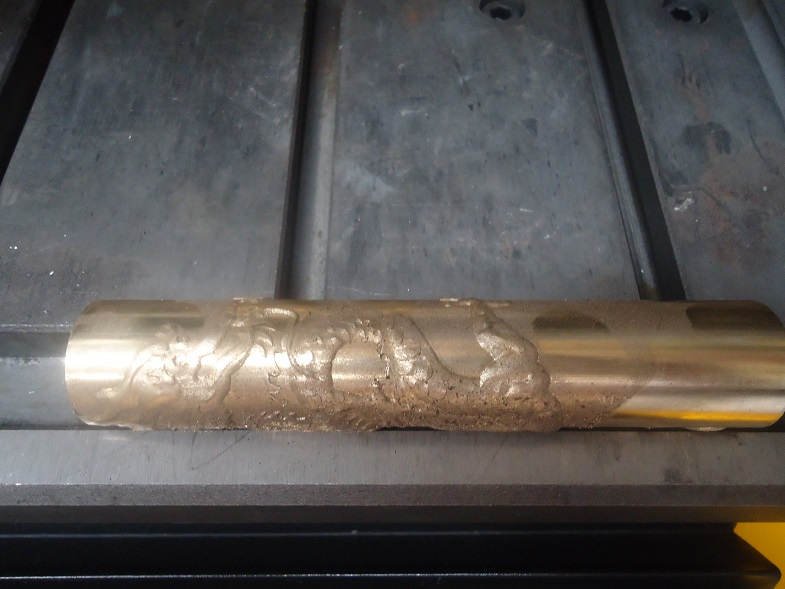

Jade,Iron, stainless steel, copper, aluminum, plastic, marble, aluminum plate, timber, KT board, ABS board,PVC board, acrylic, jade, sign board, mould, bronzing, badge, pattern mould, art carve, coin dyes, cremation urn, aluminum composite panel, light guide plate, etc.

Product Features
1. Dust proof structure for Y axis, largely guarantee the machine's long-term working property.
2. Integrally cast lathe bed, firm and non-deforming, high rigidity and high accuracy, adopts Taiwan line guide rail.
3. The gantry was confirmed and the working table can be move manipulable,
improve the working-efficiency.
4. Tool sensor system, save extra time to adjust the machine.
5. Use high speed drive motor, working speed can improved 2 meters compare with original machine.
6. Memory function ensures the processing point when the blade is broken or having to postpone the process.
7. With better compatibility, can math with many programs such as Typle3, artcam, castmate, proE, Coreldraw/CAD,CAM. It achieves 2D and 3D works easily.
8. This type machine can support these functions: drilling/milling, engraving/carving, cutting.
9. It widely used for small materials working, without noise & high-power.
Many gear speed regulation and control function & Curve and linear speed independent control.
10. Water tank system on the body & water-cooled system automatically.
11. High power frequency changing water cooled spindle, can process hard materials efficiently.
