| Prod Model: |
HTM-3O |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Temperaturer: |
40-180c |
| Type: |
Temperature Controller |
| Control Type: |
Digital |
| Material: |
Aluminium |
| Usage: |
Keep Stable Temperature of Water/Oil |
Product Description

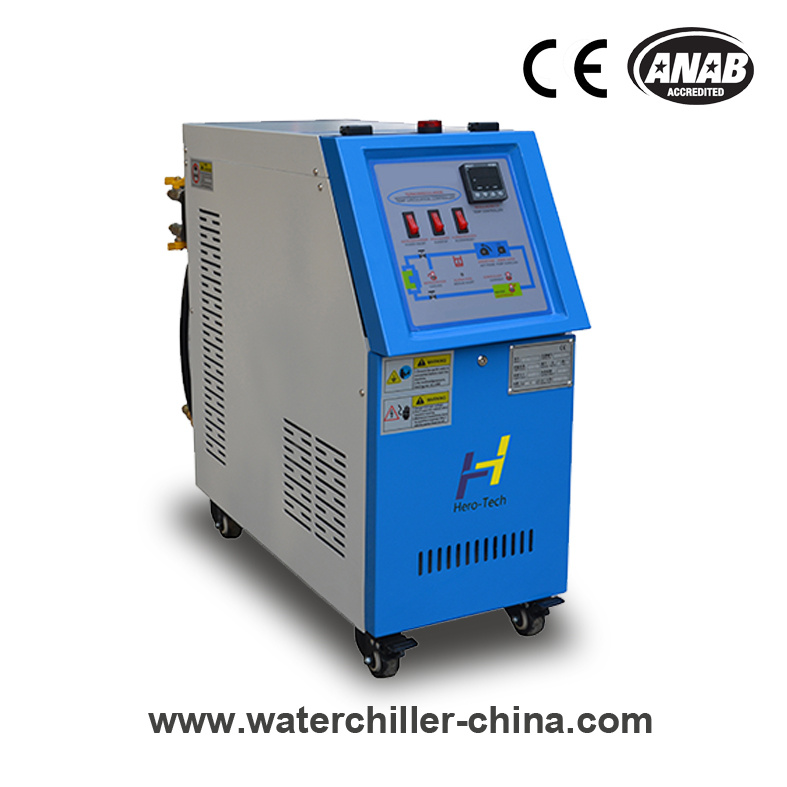

HERO-TECH Mold temperature controllerProduct introductionMTC is mainly employed to reduce Mold Pre-heating time, control mold temperature, prevent flow marks, or other undesirable phenomena on the molded surface, control constant temperature
Design FeaturesHTM-W series running medium is water.
HTM-O series running medium is oil.
Microcomputer system adopted, PID auto-temperature controller, capable of controlling oil and water temperature within ± 1º C
Stainless steel heating barrel equipped, features fast heating and cooling, easy for cleaning.
High temperature pump with high efficiency adopted, features high pressure, big flow, low noise and high stability.
Compact, rugged and powder coated cabinet with elegant appearance, quick release side panels provides easy maintenance.
Equipped with alarm and Multi fault indicators, while fault happened, the alarm will be sound automatically, fault code showed, customer will know the fault and reason at the first time, and hand in time, which is to guarantee system running safely.
Equipped with phase-sequence protective device, short current protective device, liquid level protective device, electronic time relay, etc.
ApplicationsPlastic & Rubber Industry
Die casting industry: Zinc, Aluminum, and Magnesium
HTM-W series is water type mold temperature controller
HTM-O sereis is oil type mold temperature controller
| Model | HTM-3O |
| Heat transfer medium | oil |
| Temperature range | ºC | 40-180 |
| Heating power | kw | 3 |
| Power source | | 3PH 380V-50HZ |
| Pump | Motor power | kw | 0.37 |
| Max flow | l/min | 40 |
| Max pressure | kg/cm2 | 2.2 |
| Cooling method | | indirect |
| Connections diameter | Connections | inch | 3/8 |
| NO.of inlet & outlet | | 2×2 |
| Cooling water pipe | inch | 1/2 |
| Dimension | Depth | mm | 660 |
| Width | mm | 320 |
| Height | mm | 660 |
| Net weight | kg | 58 |
Note:Water pressure should be bigger than 2kg/mm2 while water type mold temperature controller connected to the tap water.
If any special requirements, please keep us informed.
We reserve the right to modify the specifications without further notice. |
