Product Description
The High speed forging press from 400 Ton to 6300 Ton manufactured by our company has been delivered to Argentina, India, Vietnam, Indonesia and other countries in South America, Southeast Asia, Oceania.
Meanwhile, we also have a forge company in which a 6300ton high speed forging press is been using. And a 5000ton high speed forging press will be put into use. If you visit our company, you can visit the press in site. Welcome all the customers from home and abroad to visit our copany!
The high speed forging press of our company has been applied for state patent product, the patent number is 200620019900.1.

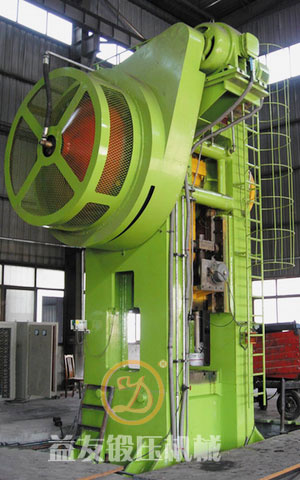

MP High Speed Forging Press series features are high production efficiency, high quality and enhanced manufacturing precision. It is truly an advanced press indispensable to modern forging mills to meet customers' demand for precision forging parts, high quality and on time delivery.
Main Technical Parameter of MP High Speed Forging Press
Item Model Unit FP-400 FP-600 FP-1000 FP-1600 MP-2500 MP-3150 MP-4000
CapacityT Ton 400 600 1000 1600 2500 3150 4000
Guide Block Route mm 175 200 250 300 320 340 360
Guide Block Setting mm 10 10 10 10 10 10 10
Route Times Time/Min 100 95 85 70 70 60 55
Active Job Route(intermittent) Time/Min 18 18 16 16 18 16 16
Nether terminal point(Adjust highest point)mm 505 550 700 800 1000 1050 1100
Rared Tonnage Pointmm 5 5 5 6 6 6 6
Guide Block Square mm 595× 555 695× 635 945× 800 1080× 1040 985× 1100 1050× 1200 1200× 1800
Bolster Areamm 780× 840 880× 880 1120× 1050 1200× 1200 1300× 1700 1400× 1860 1500× 2050
Side Window Dimension mm 450× 450 500× 500 700× 650 900× 900 1580× 1580 1600× 1600 1700× 1700
Main MotorKW 30KW 37KW 55KW 90KW 110KW 132KW 185KW
Guide Block Motor for Adjustment KW 0.4 0.4 0.75 1.5 7.5 11 11
Lubricating motor KW 0.1 0.1 0.1 0.1 1 1 1
Upper lifting capability-Route t-mm 6× 20 6× 20 8× 30 8× 40 12× 44 16× 48 20× 52
Low lifting capability-Routet-mm 20× 40 30× 40 50× 40 50× 60 37.5× 44 47.5× 48 60× 52
Air Pressure kg/mm2 5 5 5 5 5 5 5
Weight kg 30000 40000 72000 135000 199000 268000 365000
Dimension mm 2100× 3100 2260× 3410 2500× 4100 4335× 4245 5585× 3750 5800× 4100 6628× 5700
× 4250 × 4900 × 5700 × 7725 × 7740 × 8475 × 7830
Established in 1985, the company is among the latest forge and press companies that pass ISO9001: 2000 international quality system certificate. With fixed asset of nearly USD15, 000, 000 our company covers an area of about 255, 000 square meters. In addition, our biggest capability of the hoisting is 80 tons in the large workshop and we can assemble 6, 300 tons double-disc friction press together once.
Our main products consist of MP High Speed Forging Press, Series J55 Clutch Type Screw Press, Series J67, 69, 93 Double-Disc Friction Brick Press, Series D51 Vertical Ring Rolling Machines, and D53 Digital-Controlled Horizontal Ring Rolling Machines, Series J53 and J54 Double-Disc Friction Screw Press, we are also able to supply different capacities and models rolling mills.
