| Prod Model: |
HT/CCB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mini: |
1 PC |
| Pack: |
Plywood |
| Deliver Time: |
20 Days |
| Type: |
Pneumatic Cylinder |
Product Description
Introduce:
Sunfair is not only provider but also developer. We have many patents in China. We have closed relation with all press manufacture in China , welcome to contact with us. We can provide with Chinfong press first-class quality, reasonable price, and stable supply.

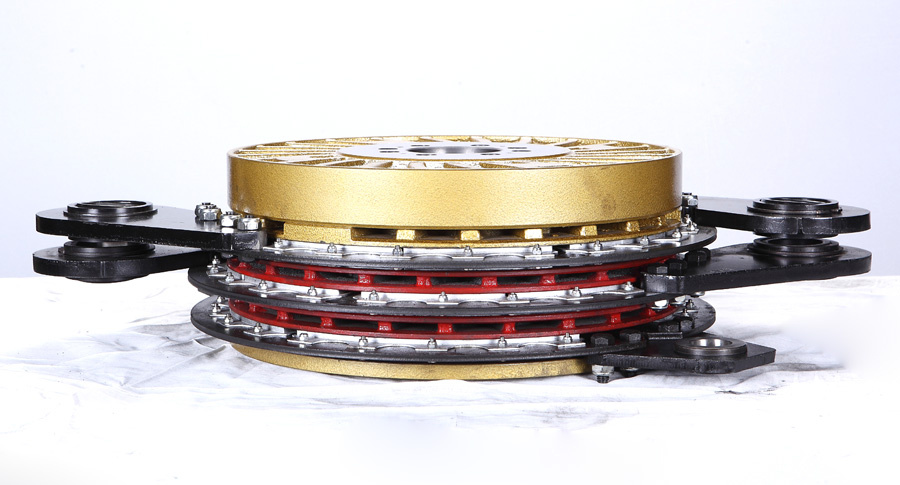

KB/TCB series clutch/brake characteristic:
Sunfair traditional product with good performance
Easy change clutch friction pad
Ear plate are available for customer optional
For dry operation only
Technical Parameters:

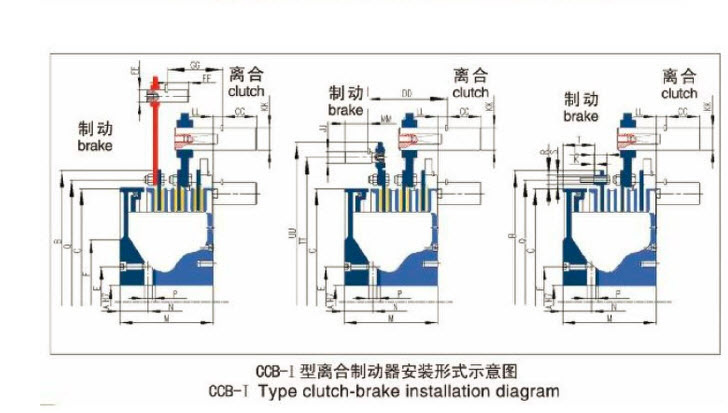

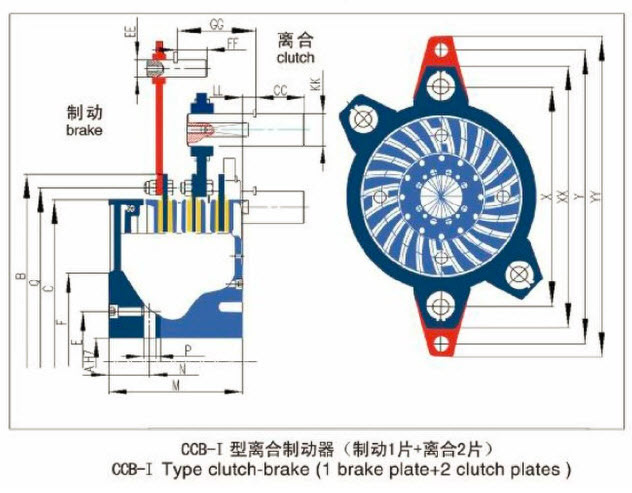

| Model | CCB300 | CCB380 | CCB470 | CCB550 | CCB600 | CCB680 |
|
| ΦAmax | 80 | 95 | 125 | 145 | 160 | 180 |
|
| Φ Amin | 45 | 55 | 70 | 80 | 90 | 100 |
|
| Φ B | 352 | 440 | 535 | 620 | 680 | 775 |
|
| Φ C | 304 | 380 | 465 | 543 | 593 | 675 |
|
| CC | 60 | 90 | 110 | 119 | 130 | 130 |
|
| DD | 112 | 151 | 191 | 200 | 241 | 258 |
|
| Φ E | 95 | 115 | 152 | 174 | 190 | 220 |
|
| EE | 16 | 30 | 32 | 32 | 45 | 45 |
|
| F | 165 | 195 | 239 | 282 | 298 | 330 |
|
| FF | 28 | 60 | 65 | 65 | 90 | 90 |
|
| GG | 75 | 97 | 106 | 130 | 137 | 153 |
|
| JJ | 22 | 32 | 32 | 32 | 45 | 45 |
|
| K | 4 | 4 | 4 | 4 | 5 | 5 |
|
| KK | 30 | 45 | 55 | 60 | 75 | 75 |
|
| L | 20 | 19 | 24 | 26 | 30 | 35 |
|
| LL | 13 | 27.5 | 14.5 | 21 | 33.5 | 31 |
|
| M | 125 | 159.2 | 181.2 | 214 | 229.2 | 257.2 |
|
| N | 38 | 53.5 | 59.5 | 66.5 | 71 | 82.5 |
|
| MM | 45 | 65 | 65 | 65 | 90 | 90 |
|
| P | 11 | 14 | 17 | 20 | 21 | 25 |
|
| Q | 331 | 412 | 500 | 584 | 640 | 725 |
|
| ΦR | 15 | 18 | 25 | 25 | 30 | 35 |
|
| ΦS | M8 | M10 | M14 | M18 | M18 | M20 |
|
| T | 36.5 | 55 | 60 | 70 | 76 | 88 |
|
| TT | 390 | 495 | 610 | 695 | 770 | 880 |
|
| UU | 449 | 575 | 722 | 807 | 920 | 1030 |
|
| X | 408 | 520 | 635 | 720 | 816 | 910 |
|
| XX | 488 | 620 | 755 | 840 | 976 | 1070 |
|
| Y | 514 | 675 | 810 | 900 | 1050 | 1155 |
|
| YY | 564 | 745 | 900 | 990 | 1162 | 1267 |
|
| Max speed(rpm) | 1750 | 1500 | 1250 | 1100 | 1000 | 850 |
|
| Weight(kg) | 57 | 118.2 | 175 | 302 | 377 | 587 |
|
| Cylinder capacity (dm³) | 0.233 | 0.539 | 0.631 | 0.724 | 1.081 | 1.489 |
|
| Note: When clutch brake working, it requires the minimum air pressure not less than 5kg/cm², maximum not more than 6kg/cm² |
Typical Applications Include:
Metalforming Presses Stamping Presses
Die Cutters Shears
Headers Compacting Presses
Can Bodymakers Can End Presses
Lamination Presses Forging Presses
