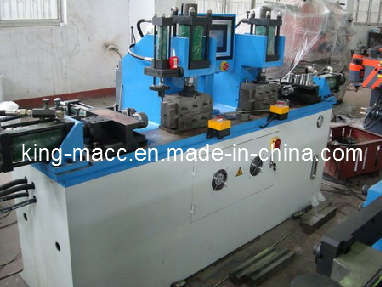

Multi-Work Position Auto Pipe End Forming Machine
| Price: |
Negotiable |
| Min Order: |
1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Machine Tool&Accessories |
Product Description
Forming Machine
GM-50 Taper End Forming Machine is a kind of high efficiency, full-auto machine. It is controlled by oil and electricity at the same time. It adopts cold forging method to reduce or extend pipe into cylinder or cone pipe. With die concerned, it can process different shapes and sizes fittings. The fittings are bright, smooth, and with high hardness.
1. Construction
Bed used welding pieces, imports of hydraulic systems and electric control three of fabric to complete. The electric parts and hydraulic are imported.
2. Design Principle
It is controlled by PLC, driven by hydraulic. It is simple to change the dies.
3. Major Performance.
It adopts PLC control. It is simple to operate, with steady precision, high speed and complete function.
4. Configuration
A)Hydraulic systems are imported
Hydraulic motor: Fu'an Taiwan
Hydraulic pump: HYDROMAX Taiwan
Hydraulic valve: Yuken Japan
Oil way board: Shanghong Taiwan
Oil cylinder: Jingsheng Shanghai
B) Electronic parts
Button Switch: Shilin tiawan
Photoelectric switches and Electrical: Shilin Taiwan
PLC: Mitsubishi Japan
|
Name |
Unit |
GM-50 |
|
Max. Reduction Capacity |
Mm |
50*2 |
|
Max. Reduction Length |
Mm |
120 |
|
Reduction time |
S |
10-14 |
|
Oil pump |
L |
16 |
|
Oil tank capacity |
L |
90 |
|
Motor Power |
Kw |
4.0 |
|
The length of the machine |
mm |
2000 |
|
The width of the machine |
mm |
600 |
|
The height of the machine |
mm |
1500 |
|
The weight of the machine |
kg |
1300 |
Zhangjiagang KING-MACC machinery manufacturing Co., Ltd., a Sino-Italy Joint Venture Corporation, was established in 1995. Our company owns top advanced international processing equipments and testing methods in this field, complete quality controlling and after services system. We mainly produce bending machines, metal disk saw machines, copper-aluminum cutting machines, pipe end molding machines, band saw machines, blade sharpner machines, automatic tube polishing machine and so on.
Our products are widely used as the following industries: Automobile, autobike, bicycle, steel, air condition tubing, petrochemical industry, shipbuilding, spaceflight equipment, bath equipment, producing pipes and so on. We sincerely provide the ideal equipments for cutting, bending, reducing, enlarging, and blunting the pipes.
Our company owns top advanced international processing equipments and testing methods in this field, complete quality management and after service system. We sincerely provide foreign and domestic customers with excellent special pipe equipment.
We have the ISO9001 quality system certificate CE certificate.
Company area: Our company is about 18, 000 square meters.
Total employees: 150 Among them: Administration: 22 Production: 118
QA/QC: 6
Others: 4
Capacity: 600 bending machines and 6000 cutting machines per year
Production Value per year: 50, 000, 000 RMB
Products range:
Bending machine: 1T~12T, length 2500mm~11000mm
Cutting machine: 0.85T~0.3T
Copper/ Aluminum cutting-off machine: 0.35T~0.95T
End forming machine: 1T~3.5T
Band saw machine: 0.2T~0.8T
Some of our Export market:
Italy, England, America, Austria, Israel, Egypt, Australia, Spain, Korea, India, Vietnam, Iran, Peru, Singapore, Arabia, Indonesia, Algeria, Uruguay, Uzbekistan, Arab, Cyprus, Egypt, Malaysia, Morocco, Poland, Russia, South Africa, Thailand, Turkey.
If you are interested in any of our products, please feel free to contact us for more information.
