| Prod Model: |
MH60 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Theory: |
Centrifugal Pump |
| Structure: |
Multistage Pump |
| Power: |
Electric |
| Type: |
Horizontal Multistage Centrifugal Pump |

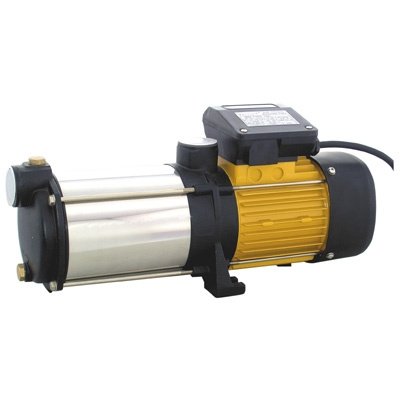

Product Description
APPLICATIONS: For domestic and industrial applications, irrigation and hydropneumatic sets.
Quiet running multistage centrifugal pump. Built-in self priming value, not very sensitive to the impurities. Self-priming up to 8 m.
PUMP
--- Delivery up to 60 l/min (3.6 m3/h).
--- Head up to 60m.
--- Temperature of pumped liquid: 0-40 C
--- Maximum operating pressure: 7.0 bar.
MOTOR
--- Asynchronous, two poles.
--- Protection class: IPx5.
--- Class F insulation.
--- Single phase version 220-240V 50Hz with automatic reset overload protection.
--- Three phase version: 220-240V/380-415V 50Hz, the overload protection must be provided and installed by the user in the control panel.
--- Maximum ambient temperature 40 C
MATERIALS
--- Suction/discharge mounting in Cast Iron (Casting brass are available).
--- Pump Housing in SUS 304 stainless steel.
--- Diffussor in PPO (Noryl® )
--- Impellers in PPO (Noryl® ) (SUS 304 Stainless steel are available).
--- Motor Shaft in SUS 416 stainless steel (Carbon Steel and SUS 316 stainless steel are available)
--- Mechanical seal with Ceramic/graphite, NBR elastomers, other parts are made of SUS 304 stainless steel.
--- O-Ring made of NBR ( EPDM are available).
OPTIONAL FEATURES
--- Different voltages and frequencies.
--- Different materials for the mechanical seal
|
PERFOMANCE DATA AT n=2850 min |
|
PUMP MODEL |
INPUT |
OUTPUT |
Q m3/h |
0 |
0.6 |
1.2 |
1.8 |
2.4 |
3 |
3.6 |
|
KW |
KW |
HP |
l/min |
0 |
10 |
20 |
30 |
40 |
50 |
60 |
|
MH60 2M |
0.50 |
0.37 |
0.50 |
H (m) |
20 |
19 |
17 |
14 |
11 |
7 |
4 |
|
MH60 3M |
0.65 |
0.50 |
0.65 |
30 |
29 |
26 |
22 |
17 |
12 |
7 |
|
MH60 4M |
0.90 |
0.70 |
0.95 |
40 |
39 |
35 |
31 |
25 |
18 |
10 |
|
MH60 5M |
1.10 |
0.85 |
1.15 |
50 |
48 |
44 |
38 |
31 |
24 |
15 |
|
MH60 6M |
1.30 |
1.00 |
1.30 |
60 |
58 |
53 |
46 |
37 |
28 |
17 |
