| Prod Model: |
ZC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Metal Cutting Machine |
| Model 1: |
Common Nails Making Machine |
| Model 2: |
Umbrella Roofing Nails Making Machine |
| Model 3: |
Coil Nails Making Machine |
| Capacity: |
200-450PCS/Min |
| Diameter Of Raw Material: |
0.9-4.5mm |
| Certification: |
CE |
| Operation: |
Simple |
| Warranty Time: |
One Year |
| Service Life: |
More Than 6 Years |
| Type: |
Metallic Processing Machinery |

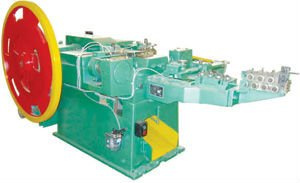

Product Description
1. Nails Length: 10mm-210mm
2. Diameter of Nails: 7.0mm
3. Average: 250PCS/min
4. Motor Power: 1.5-11kw
5. Production flow: Material---wire drawing machine--nail making machine---polishing machine---finished nails
Characteristics: 1. This new type machine adopts plunger and oil pipe lubricating structure to ensure the high working speed and high efficiency. Durability and easily maintenance are also the strong points. 2. All the main components are made of quality steel, such as shaft, cams and gear. 3. Use control handle at the inlet place in order to control incoming line at any time during operating. 4. A friction gear is installed between crankshaft and flywheel. It plays a protective role of safety when the machine breaks down or overloaded. 5. The machine makes use of full automatic production procedure. Once start, it could make nails continuously. Delivery time: Within 30days after down payment.
|
Details Specification: |
|
Type |
1C |
2C |
3C |
4C |
5C |
6C |
|
Max. length of nail |
10-25 mm |
20-50 mm |
30-75 mm |
50-100 mm |
100-150 mm |
150-210 mm |
|
Max. diameter of nail |
0.9-1.6 mm |
1.6-2.5 mm |
2.5-3.2 mm |
3.2-4.0 mm |
4.0-5.0 mm |
5.0-6.5 mm |
|
Nails Making speed |
450 pcs/min. |
300 pcs/min. |
280 pcs/min. |
250 pcs/min. |
250 pcs/min. |
180 pcs/min. |
|
Motor Power |
1.5 KW |
2.2 KW |
3 KW |
3 KW |
5.5 KW |
11 KW |
|
Weight |
900 kg |
1350 kg |
1600 kg |
1900 kg |
2500 kg |
5500 kg |
|
Overall Dimension |
1350*950*
1000mm |
1650*1150*
1100mm |
1990*1200*
1250mm |
2280*1420*
1330mm |
2300*1450*
1500mm |
3510*1940*
2015mm |
Gongyi Xiaoyi Mingyang Machinery Plant is located in Zhengzhou City, which is the biggest manufacturing base of charcoal making machinery. And we are the one of the earliest and largest manufacturers of renewable fuel & energy equipments and related machinery.
After 15 years development, now our company becomes an independent economic entity with the integration of science, engineering and trading department. our products and are widely accepted in both domestic and world market, and also exported to more than 30 countries, such as England, Russia, Sweden, Poland, Iran, Sudan, South Malaysia, Indonesia, Vietnam, etc.
Why the client choose us, because:
1. one of the largest manufactures of the briquette machine in China
2. the earliest manufacture of the briquette machine in China with 20 years experience,
3. get the ISO certificate and SGS certificate
4. We have the test center of the machine, and we bulit one realted company ( making the briquette and charcoal )with our machine.
5. Every machine will test before delivery and we will send the test video and other realted video to our client
6. all the motor of the machine with the CE certificate
7. product quality get the local government
guarantee
8. recommend clients for free, offer the layout drawing and the profit table
9. change the electrical power for free during warranty time.
10. offer the install video and free stuff training
Our main production line include:
Charcoal / Biomass Briquette Plant for Agro-Forestry Wastes
Wood Pellet Mill / Feedstuff Pelletizing Plant
Straw fuel briquette production line
Animal feed pellet machine
Vegetable Oil Milling Plant for Food Oil or Biodesel
Roller Briquette Press for Coal / Charcoal powder
Turn-key Flour Milling Plant and Flour Milling Machines
Custom Roll Forming Mill / Cold Roll Forming Mill
High Efficiency Spindle Motors for Maching Centers
We hope sincerely to become your Chinese supplier and partner in the mechanical field.
