| Prod Model: |
2BE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Theory: |
Vacuum Pump |
| Structure: |
Jet Flow Vacuum Pump |
| Exhauster Method: |
Positive Displacement Pump |
Product Description

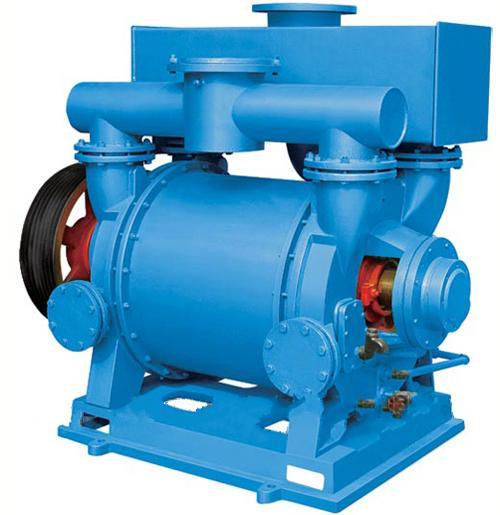

2BEA series NASH vacuum pumps and compressors is a kind of high-efficiency and enger-saving product developed on the basis of years of production experience and scientific research, combined with international advanced technology, typically used for pumping gas without solid particles, insoluble in water, and non-corrosive, so as to form a vacuum or pressure in a sealed container.
By changing the materials, it can be used for pumping corrosive gases or corrosive liquids. It is widely used in papermaking, chemical, petrochemical, light industry, pharmaceuticals, food, coal, mineral processing, and other industries.
Features1. Use imported bearings to ensure accurate location and stable operation of the impeller.
2. Impeller material use cast iron or welded steel, and fully guarantee the impeller stability in a variety of adverse conditions, and greatly increased the pump life.
3. Pump body uses steel, increase the service life of vacuum pump.
4. As the most easily damaged parts, the shaft sleeve uses high-chromium stainless steel, life expectancy has increased by 5 times.
5. Pulley (belt drive) is standard high-precision, reliable operation and long service life and convenient disassemble.
6. Coupling (direct Transmission) uses standard high-strength flexible coupling, flexible component uses polyurethane material, which is stable and reliable operation, long service life.
7. 'Unique top-mounted gas-water separator to save space and reduce the noise.
8. All casting uses resin sand casting, which is good surface quality, pump cooling well.
9. Mechanical seal (optional) is imported, fully guaranteed no leakage in the long-running process.
10. Casing inner wall is similar to the type of oval, ensure the best exhaust results.
| Model | Limited Vacuum hpa | Speed r/min | Max. Capacity m³ /min | Power KW | Driven Type | Voltage | Suction mm | Discharge mm |
| 2BEA-103-0 | 33 | 1300 | 4.9 | 11 | Pulley | 380 V | 65 | 65 |
| 1450 | 5.6 | 11 | Couping |
| 1625 | 6.2 | 15 | Pulley |
| 1750 | 6.7 | 15 | Pulley |
| 2BEA-153-0 | 33 | 1100 | 7.4 | 15 | Pulley | 380 V | 100 | 100 |
| 1300 | 8.9 | 18.5 | Pulley |
| 1450 | 10 | 18.5 | Couping |
| 1625 | 10.8 | 22 | Pulley |
| 1750 | 11.5 | 30 | Pulley |
| 2BEA-202-0 | 33 | 790 | 9.5 | 18.5 | Pulley | 380 V | 125 | 125 |
| 880 | 11 | 18.5 | Pulley |
| 980 | 12 | 22 | Coupling |
| 1100 | 14 | 30 | Pulley |
| 1170 | 15 | 30 | Pulley |
| 2BEA-203-0 | 33 | 790 | 14 | 30 | Pulley | 380 V | 125 | 125 |
| 880 | 16 | 30 | Pulley |
| 980 | 18 | 37 | Coupling |
| 1100 | 20 | 45 | Pulley |
| 1170 | 21 | 45 | Pulley |
| 2BEA-252-0 | 33 | 565 | 20 | 30 | Pulley | 380 V | 150 | 150 |
| 590 | 22 | 30 | Coupling |
| 660 | 25 | 37 | Pulley |
| 740 | 28 | 45 | Coupling |
| 820 | 30 | 55 | Pulley |
| 880 | 33 | 75 | Pulley |
| 2BEA-253-0 | 33 | 565 | 28 | 45 | Pulley | 380V | 150 | 150 |
| 590 | 30 | 45 | Coupling |
| 660 | 35 | 55 | Pulley |
| 740 | 39 | 75 | Coupling |
| 820 | 43 | 90 | Pulley |
| 880 | 47 | 90 | Pulley |
| 2BEA-303-0 | 33 | 472 | 43 | 55 | Pulley | 380V | 200 | 200 |
| 520 | 45 | 75 | Pulley |
| 530 | 48 | 75 | Pulley |
| 590 | 52 | 75 | Coupling |
| 660 | 58 | 90 | Pulley |
| 740 | 67 | 110 | Coupling |
| 2BEA-353-0 | 33 | 390 | 55 | 75 | Pulley | 380V | 250 | 250 |
| 415 | 58 | 90 | Pulley |
| 464 | 65 | 110 | Pulley |
| 520 | 72 | 132 | Pulley |
| 590 | 81 | 160 | Coupling |
| 2BEA-403-0 | 33 | 330 | 78 | 132 | Pulley | 380V | 300 | 300 |
| 372 | 85 | 160 | Pulley |
| 420 | 97 | 185 | Pulley |
| 472 | 110 | 200 | Pulley |
| 530 | 122 | 250 | Pulley |
| Model | Limited Pressure hpa | Speed r/min | Max. Capacity m³ /min | Power KW | Driven Type | Voltage | Suction mm | Discharge mm |
| 2BEA-355-1 | 160 | 372 | 61 | 90 | Pulley | 380V | 250 | 250 |
| 420 | 71 | 110 | Pulley | 380 V |
| 472 | 79 | 110 | Pulley | 380 V |
| 500 | 83 | 132 | Pulley | 380 V |
| 530 | 88 | 132 | Pulley | 380 V |
| 590 | 95 | 160 | Coupling | 380 V |
| 2BEA-405-1 | 160 | 330 | 93 | 132 | Pulley or Reducer | 380 V | 300 | 300 |
| 372 | 106 | 160 | 380 V |
| 420 | 119 | 185 | 380 V |
| 472 | 130 | 220 | 380 V |
| 530 | 141 | 280 | 380 V |
| 2BEA-505-1 | 160 | 266 | 121 | 160 | Pulley or Reducer | 380 V | 350 | 350 |
| 298 | 139 | 185 | 380 V |
| 330 | 153 | 220 | 380 V |
| 372 | 169 | 250 | 6KV |
| 420 | 186 | 315 | 6KV |
| 2BEA-605-1 | 160 | 220 | 168 | 220 | Reducer | 6KV | 400 | 400 |
| 236 | 181 | 250 | 6KV |
| 246 | 188 | 280 | 6KV |
| 266 | 206 | 280 | 6KV |
| 276 | 210 | 315 | 6KV |
| 298 | 228 | 355 | 6KV |
| 312 | 234 | 355 | 6KV |
| 2BEA-705-1 | 160 | 197 | 259 | 355 | Reducer | 6KV Or 10KV | 500 | 500 |
| 220 | 286 | 400 |
| 246 | 318 | 450 |
| 266 | 342 | 500 |
| 276 | 352 | 560 |
