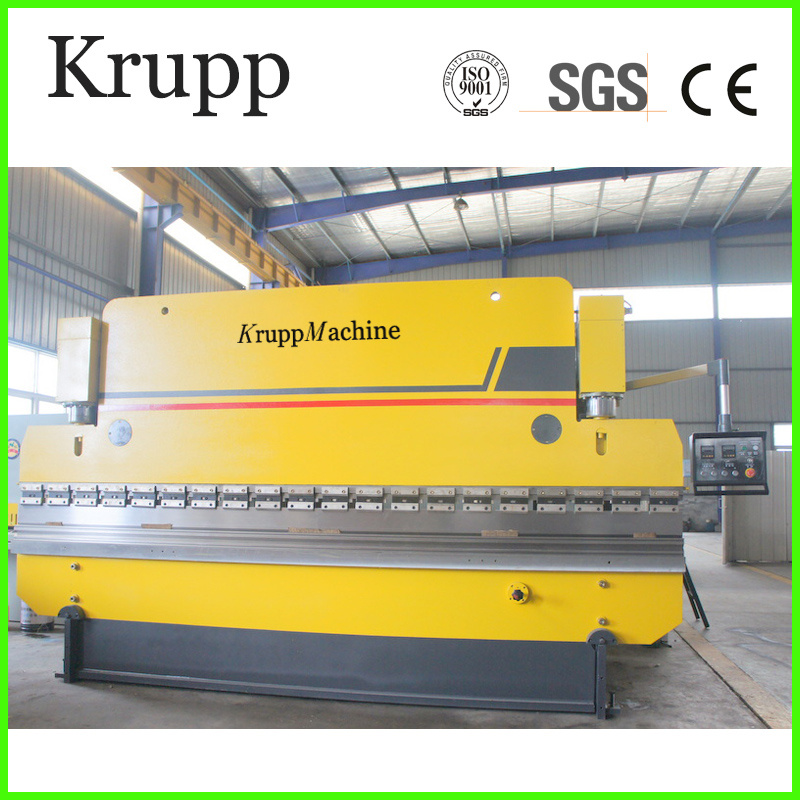

Nc Automatic Metal Folding Machine/Bending Press Machine

Name: Nc Automatic Metal Folding Machine/Bending Press Machine
Brand: china-castingforging.com
SKU: 780064205
Availability: InStock
Rating: 4.4 (68 reviews)

Price:	US $ 7450SET
Trade Terms:	FOB,CFR,CIF
Min Order:	1SET
Pay Type:	L/C,T/T,D/P

Contact Supplier

Maanshan Krupp Machinery Trade Co., Ltd.

Showroom Product Company Profile

Prod Model:	wc67y
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type For Pipe And Tube Bending Machine:	Press Brake
Processing:	Aluminum,Stainless Steel Plate,Carbon Steel
Sealing Element:	Imported
Color:	Customized
Forging Forming Method:	Mold Forging

Product Description

1.All steel welded structure,vibrating treatment of aging for removal of internal stress with high strength and good rigidity.
2.Torsion shaft forced synchronization of mechanical limit stopper balance with high precision. 3.Integrated hydraulic transmission system, large range of speed regulation to transmission of the sliding block, stable and reliable performance.
4.Rear stopper and the sliding block have electrical adjustment for their stroke with manual fine tuning and digital indication.
5.Adjustment mechanism of sliding block independent from oil cylinder assembly to enhance sealing effect upper mold is fitted with titling warp offset mechanism.
6.Multiple machine combined operation is possible.

Model (WC67Y)	Nominal Pressure (kn)	Length of table (mm)	Distance Between Housing (mm)	Throat Depth (mm)	Stroke (mm)	Open High (mm)	Main Motor (kW)	Dimensions (L x W x H) (mm)
40/2200	400	2200	1800	220	100	340	4	2260x1200x2070
40/2500	400	2500	2000	220	100	350	4	2560x1200x2070
50/2500	500	2500	2000	250	100	350	4	2560x1200x1900
63/2500	630	2500	2000	250	120	350	5.5	2560x1250x2110
63/3200	630	3200	2600	250	120	350	5.5	3260x1250x2110
80/3200	800	3200	2600	250	120	370	7.5	3260x1250x2190
80/4000	800	4000	3200	250	120	370	7.5	4060x1320x2250
100/3200	1000	3200	2600	320	120	380	7.5	3260x1350x2400
100/4000	1000	4000	3200	320	120	380	7.5	4060x1350x2420
125/3200	1250	3200	2600	320	120	400	11	3260x1420x2550
125/4000	1250	4000	3200	320	120	400	11	4060x1420x2550
160/3200	1600	3200	2600	320	200	480	11	3260x1520x2700
160/4000	1600	4000	3200	320	200	480	11	4060x1520x2800
160/5000	1600	5000	4000	320	200	480	11	5060x1700x2850
160/6000	1600	6000	5000	320	200	480	11	6060x1700x2900
200/3200	2000	3200	2600	350	200	490	15	3260x1600x2850
200/4000	2000	4000	3200	350	200	490	15	4060x1600x2880
200/5000	2000	5000	4000	350	200	490	15	5060x1800x2950
200/6000	2000	6000	5000	350	200	490	15	6060x1800x3000
250/4000	2500	4000	3200	400	250	560	18.5	4060x2100x2920
250/5000	2500	5000	4000	400	250	560	18.5	5060x2100x2970
250/6000	2500	6000	5000	400	250	560	18.5	6060x2100x3050
300/4000	3000	4000	3200	400	250	560	22	4060X2170X3280
300/5000	3000	5000	4000	400	250	600	22	5060x2230x3330
300/6000	3000	6000	5000	400	250	600	22	6060x2230x3420
400/4000	4000	4000	3200	450	250	600	37	4060x2350x3300
400/5000	4000	5000	4000	450	250	600	37	5060x2350x3380
400/6000	4000	6000	5000	450	250	600	37	6060x2350x3450
500/4000	5000	4000	3200	500	300	660	45	4060x2600x3600
500/5000	5000	5000	4000	500	300	660	45	5060x2600x3600
500/6000	5000	6000	5000	500	300	660	45	6060x2600x3650
600/4000	6000	4000	3200	600	300	700	55	4060x2600x3600
600/5000	6000	5000	4000	600	300	700	55	5060x2600x3700
600/6000	6000	6000	5000	600	300	700	55	6060x2600x3800

The above data is just for your reference,if there is any disaccord please refer to actual data

Ma'anshan Krupp Machinery Trade Co., Ltd is located in Ma'anshan Bowang

Industrial park. We are near to Nanjing South station and Nanjing Lukou airport, which is convenient to be visited.

Our company adopts international advanced management mode and imports Japanese and German technology. We are the enterprises with collection brand, research and development, design and manufacture.

We passed ISO9001: 2008 international quality system certification and has obtained many patent. All machines are with CE certification.

Our company are professional in producing metal forming machine, including CNC press brake, shearing machine, rolling machine, combined punching shearing machine, hydraulic notching machine, punching machine and all kinds ofmechanical tools, die.

We have rich clients in many countries and regions. Beside offer the machines with good quality, we also have experienced after sales service team. If thereis need, our engineers can go to the buyer's side to offer training and installation at the earliest time.

"Quality Create Future" is our concept. We'll try our best to achieve every product.
