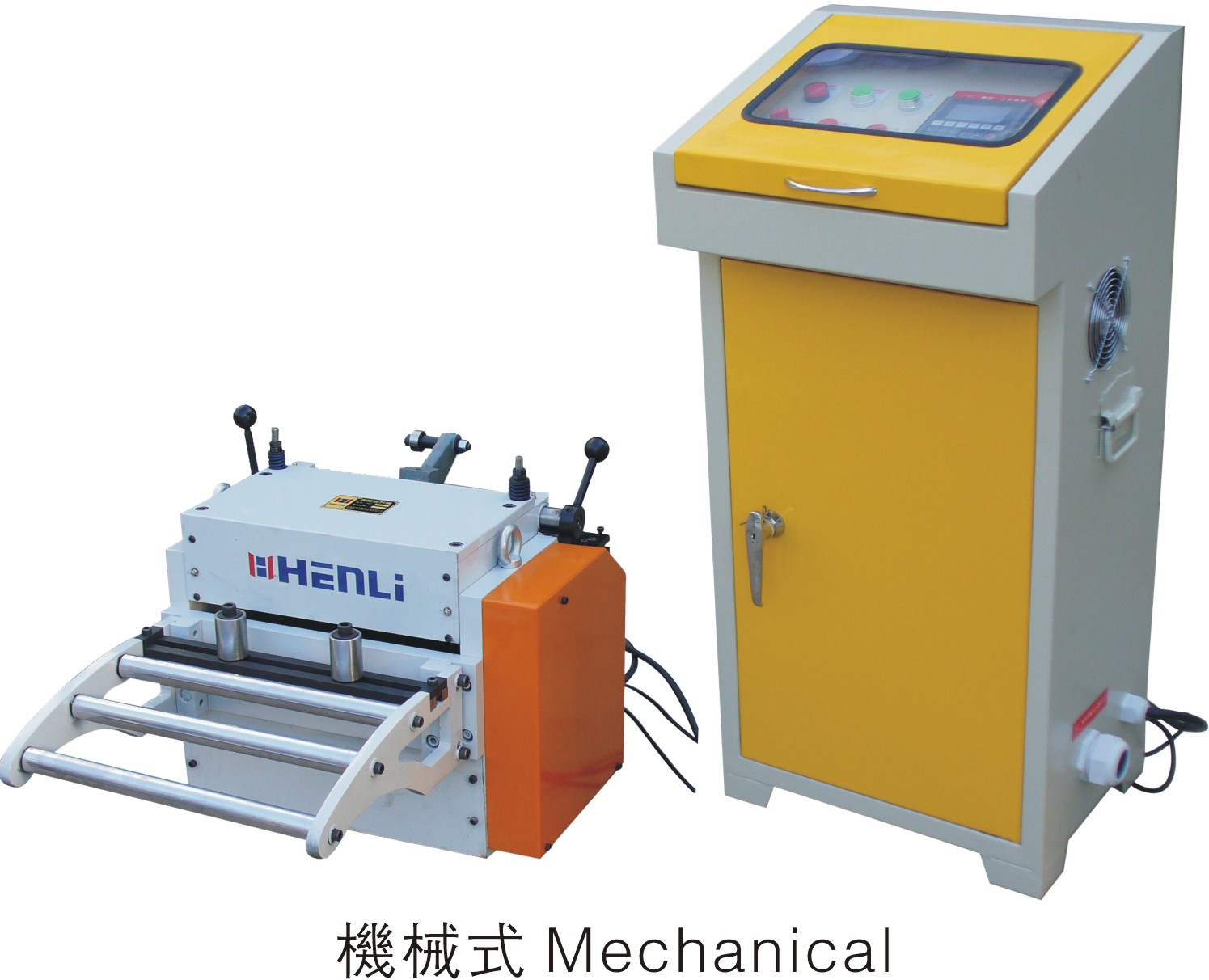

NC Roll Feeder Machine (Mechanical type) (NCF-300)

Name: NC Roll Feeder Machine (Mechanical type) (NCF-300)
Brand: china-castingforging.com
SKU: 679640155
Availability: InStock
Rating: 4.9 (48 reviews)

Price:	Negotiable
Min Order:	1

Contact Supplier

Dongguan Henli Machinery Equipment Co., Ltd.

Showroom Product Company Profile

Prod Model:	NCF-300
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificate:	ISO9001: 2000 and CE
Color:	as Your Require
Condition:	New
Precision:	+/-0.3mm
Power Source:	Mechanical or Pneumatic
Type:	Metal Cutting Machine

Product Description

NC Servo roll Feeder machine High precision and effciency feeding for the press machine.
NC roll Feeder machine, adopt high quality servomotor (Mitsubishi & Yaskawa Electric of Japan) as the drive for feeding.

Features and construction:

1. High-precision feeding: It is controlled by computer closed-circuit feedback system. So that the precision can maintain within ± 0.3MM
2. Phase-style feeding function: It can input 20 groups of different feeding length, each group provides punching for 999 times to satisfy the processing and production of special products(option)
3. Manual model: It can input 3 phases manual speed, which can let used operate more easily and feed materials more accuracy.
4. High-effciency release device: It can set up release angle quickly, only match Cam signal of and adjusted feed thickness can done.
5. Feeding length setting: Input feed length on the controller panel directly
6. Feeding unit: The roll adopts middle-hollow style, being light and with low intertia for electropiate. The surface hardness HRC 60o and hard chorme plated.

Model		NCF-100	NCF-200	NCF-300	NCF-400	NCF-500	NCF-600	NCF-700	NCF-800	NCF-1000	NCF-1300	NCF-1600
Model		NCF-100A	NCF-200A	NCF-300A	NCF-400A	NCF-500A	NCF-600A	NCF-700A	NCF-800A	NCF-1000A	NCF-1300A	NCF-1600A
Material Width(mm)		100	200	300	400	500	600	700	800	1000	1300	1600
Material thickness		0.2-3.2	0.2-3.2	0.2-3.2	0.2-3.2	0.2-3.2	0.2-3.2	0.2-3.2	0.2-3.2	0.2-3.2	0.2-3.2	0.2-3.2
Standard type Material Thickness& Width	0.2-1.0	100	200	300	400	500	600	700	800	1000	1300	1600
	2.0	90	180	280	300	350	400	450	480	550	650	700
	3.2	40	80	100	120	150	180	210	240	280	320	360
Material Thickness		0.3-4.5	0.3-4.5	0.3-4.5	0.3-4.5	0.3-4.5	0.3-4.5	0.3-4.5	0.3-4.5	0.3-4.5	0.3-4.5	0.3-4.5
A-Type Material Thickness& Width	0.3-2.2	100	200	300	400	500	600	700	800	1000	1300	1600
	3.2	80	160	240	320	400	460	520	560	580	600	650
	4.5	50	120	150	220	250	280	300	320	350	360	380
Feed Length(mm)		9999.99	9999.99	9999.99	9999.99	9999.99	9999.99	9999.99	9999.99	9999.99	9999.99	9999.99
Feed Speed(m/min)		20	20	20	20	20	20	20	20	20	20	20
Servo Motor(kw)		AC 0.8 AC 1.3	AC 0.8 AC 1.8	AC 0.8 AC 1.8	AC 1.3 AC 2.9	AC 1.3 AC 2.9	AC 1.8 AC 2.9	AC 1.8 AC 2.9	AC 2.9 AC 4.4	AC 4.4 AC 5.5	AC 5.5 AC 7.5	AC 7.5 AC 11
Power supply		220v/380v/415v	220v/380v/415v	380v/415v	380v/415v	380v/415v	380v/415v	380v/415v	380v/415v	380v/415v	380v/415v	380v/415v
Pass Line(mm)		70-170	70-170	70-170	70-170	70-170	70-170	90-190	90-190	90-190	90-190	90-190
Release Equipment		Mechanical Pneumatic						Pneumatic

HenLi has absorbed in design, development, production, and trade on automatic peripheral equipment of press machine such as various kinds of feeders, uncoilers(decoiler), straightener(leveller)and other accessories since the year of 1998. Now HenLi brand is famous for its market research completely and advanced technology ability in the same industry. with the eximious capability-price ratio and perfect after service, our products are sold well in domestic markets while exported to many countries and regions, such as the Middle East, Southeast Asia, Africa and Europe etc.

Located in China's world famous industry manufacturing center Dongguan city (between Hongkong, Shenzhen and Guangzhou), we enjoy great convenience in transportation advantage and fast delivery for leading time in time. Moreover, our branches and offices covers south and east China, which enable us to offer all-around sevice and technical support to our valued customers. In the year of 2007 we built and removed to a brand-new modern factory with advanced facilities and production lines in order to fulfill rapidly growing market demands.

Obeying ISO9001-2000 quality management system to be our standard of producing and selling, updating machines characters according to customers comment and advice, we guarantee to provide completely coil processing automation industrial control technology to improve HenLi brand. We warmly welcome your any inquiry for more information, our all personnel will give you our best attention and service.
