| Prod Model: |
NEMA56C-1HP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Single Phase Electric Motor: |
Odp-General Purpose-NEMA |
| Rated Voltage: 115/208-230V: |
Rated Frequency: 48-56-60Hz |
| Number Of Stator: |
Single-Phase |
| Operating Speed: |
Constant Speed |
| Application: |
Power Tools |
| Casing Protection: |
Closed Type |
| Rotor Structure: |
Squirrel-Cage |
| Starting Mode: |
Direct on-line Starting |
| Brand: |
Kapteeni |
| Species: |
NEMA Motor |
Product Description
WHY CHOOSE US
- Stamping of lamination
- Rotor die-casting
- Winding and inserting - both manual and semi-automatically
- Vacuum varnishing
- Machining shaft, housing, end shields, etc
- Rotor balancing
- Painting - both wet paint and powder coating
- Motor assembly
- Packing
- Inspecting spare parts every processing
- 100% test after each process and final test before packing.
WHAT WE CAN DO FOR CUSTOMERS
- Supply standard products to customers.
- Supply standard products under customers' brands and packaging, etc
- We have R&D department can develop customized products for customers.
| Brand Name: | KAPTEENI Motors | Model Number: | NEMA HML/HMY/HMC | Type: | Induction Motor |
| Frequency: | 60Hz/50Hz | Output Power: | 1/4-3hp | Protect Feature: | Totally Enclosed |
| Phase: | Single-phase | Certification: | CCC,ROHS,CE,TUV | AC Voltage: | 115/120 V |
| Place of Origin: | Fujian China (Mainland) | Efficiency: | NEMA | Material: | Rolled Steel/Cast Iron |
| Colour: | Black,GREY | Bearing: | C&U/SKF/NTN/NSK |
Specifications

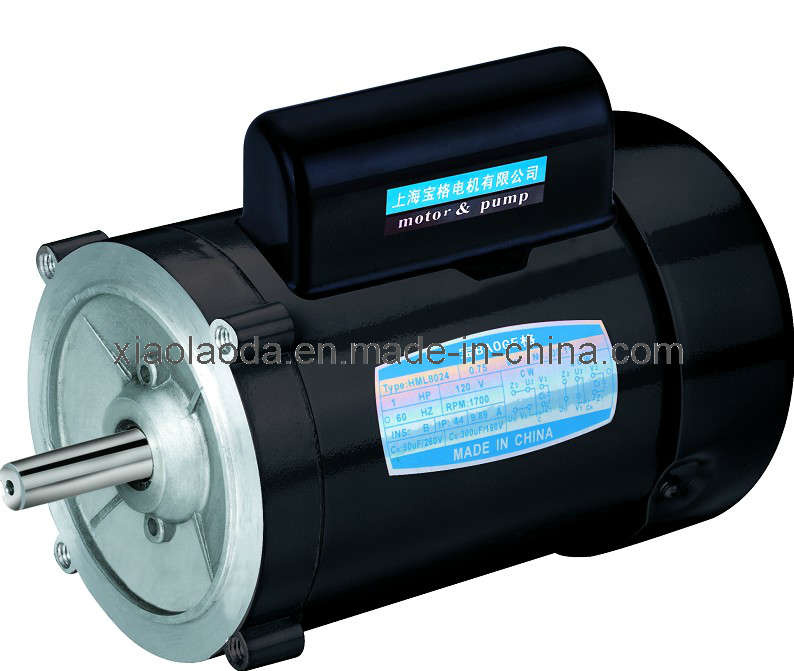

NEMA 56C Frame Electric Motor
1.30 years manufacturing experience
2.ISO9001,CE,UL
3.18 months warranty
TECHNICAL CHARACTERISTICS
Rated outputs and frame sizes in accordance with NEMA standards
Duty type S1(continuous duty) with sufficient thermal margin to withstand short overload
Degree of protection: IP43
Insulation class F, temperature rise class B
Maximum ambient 40°C
Altitude ≤1000m a.s.l
Service factor 1.15
Manual or automatic overload protection when required
CONSTRUCTION MATERIALS
Frame-steel
End shields-pressure cast aluminium
Fan cowl- plastic
Fan-plastic
Shaft- medium carbon steel(stainless available on request)
Terminal box- steel
Capacitor box-steel
APPLICATION
Pumps, fans and blowers, farm equipment, conveyors. machine tools. gear reducers and other applications.
Zhejiang Huaming Electric Motor Co., Ltd founded in 1985 year, is located in Wenling city. Closes to 104 National Road, 15 minutes' driving to the Wenling Railway Station, high-speed road junctions and 30 minutes' driving to Huangyan airport, Only 3 hours'way to Ningbo Port.
The company is an enterprise covering design, production and sales, produce "XIAOLAODA" brand products, there are EU IEC standard three-phase electric motors Y, Y2, YD, YVF, YB2, YS series, single-phase motors YC, YL, YY series, and the USA NEMA standard single & three-phase motors, also many derived motors (meat machines motor, fruit juicer motors, food processing motors, etc ). Also we product submersibel pumps as QY, QX, WQD, IRG four series. We achieved a "national industrial product production license", "export product quality permit" and the products certificates, such as CCC, ISO9001, CE, TUV, and we can apply UL certificate for clients.
Our products are very popular in China, we have Right to Import and Export, we also widely export to Europe, Australia, and America market.
Any interests or doubts, Please Kindly contact us, the good cooperation come from this moment.
