| Prod Model: |
QY12G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Loading Capacity: |
12ton |
| Condition: |
New |
| Power Source: |
Hydraulic |
| Sling Type: |
Wire Rope |
| Certification: |
ISO9001: 2000 |
| Type: |
Tower Crane |
| Application: |
Workshop Usage |
Product Description

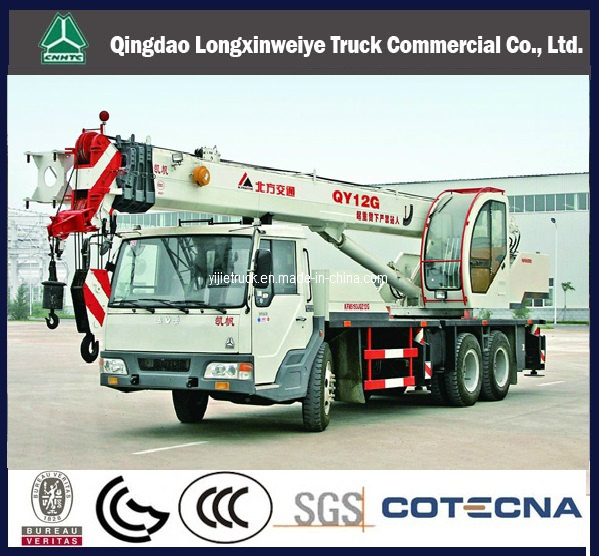

New 12ton Truck Crane with Four-Section Boom
QY12G truck Crane is fully hydraulic telescopic crane, the maximum rated lifting capacity is 12t. It can be applied in various conditions for lifting and installation work, such as industrial and mining establishments, building site, station, sea port, warehouse and so on.
1. Full hydraulic pressure drive, electrical dual-purpose, safe and reliable work, high efficiency, low labor intensity;
2. Every hydraulic system equipped with balancing valve and hydraulic lock, safe and reliable performance
3. Crane jib and important components are made of low alloy steel plate to reduce weight of crane, crane performance;
4. Rotary bearing all adopt 50 MN forging materials
5.10 tons and above the crane main fittings adopt XUGONG/DONGYUE original accessories, such as: The main valve main pump, winding system and rotation system, slewing bearing
6. Boom of cold forming, rectangular, five prismatic structure, give full play to the mechanical properties of the material.
7. Adopts hydraulic cylinder telescopic crane boom, work more safety and reliable
8. Equipped with night light, expanded the work time.
Telescopic crane boom using marker and alarm limit of double insurance.
9. Optional bridge before and after, negative arm and three-phase electric operation;
10. Crane display options torque, height limiter.
11. Cranes are equipped with the radiator, more conducive to the summer job;
12. Environmental, energy-saving and powerful engine offers strong drive for the crane carrier and improves travel performance for the whole machine.
13. Hydraulic oil line rubber hose all adopt double wire super high pressure oil pipe, steel pipe are all made
|
Items |
Unit |
Value |
|
Working Performance Parameters |
Max. Rated lifting weight |
kg |
12000 |
|
Max. Lifting force of the basic boom |
kn.m |
450 |
|
Max. Lifting force of the longest boom |
kn.m |
240 |
|
Max. Height of the basic boom |
m |
10.5 |
|
Max. Height of the main boom |
m |
29.2 |
|
Max. Height of the jib |
m |
35.6 |
|
Working Speed |
Turning speed |
r/min |
0-2 |
|
Extension time of the full boom |
s |
75-60 |
|
Lifting time of the lift boom |
s |
50-37 |
|
Extension time of horizontal tank outrigger |
s |
28-40 |
|
Extension time of vertical tank outrigger |
s |
27-40 |
|
Traveling Parameters |
Max. Traveling speed |
km/h |
75 |
|
Max. Grade ability |
% |
25 |
|
Min. Turning diameter |
m |
22 |
|
Min. Ground clearance |
mm |
255 |
|
Approaching angle |
° |
17 |
|
Departure angle |
° |
10.5 |
|
Weight Parameters |
The whole weight of full load |
kg |
19300 |
|
Load of the front axle |
kg |
5400 |
|
Load of the middle-rear axle |
kg |
13900 |
|
The whole weight |
kg |
19170 |
|
Dimension Parameters |
External dimension(length×width×height) |
mm |
12060×2494×3160 |
|
Vertical span of outrigger |
mm |
4750 |
|
Horizontal span of outrigger |
mm |
4990 |
|
Length of main boom |
m |
28.16 |
|
Elevation of main boom |
° |
-2-80 |
|
Length of vice boom |
m |
6.8 |
|
Chassis |
Model |
_ |
TAZ5193J |
|
Engine model |
_ |
WP6.210 |
|
Rated power/speed |
kw/(r/min) |
155/2300 |
|
Max. Torque/rotate speed |
n.m/(r/min) |
750/1400-1600 |
|
Items |
Unit |
Value |
|
Working Performance Parameters |
Max. Rated lifting weight |
kg |
12000 |
|
Max. Lifting force of the basic boom |
kn.m |
450 |
|
Max. Lifting force of the longest boom |
kn.m |
240 |
|
Max. Height of the basic boom |
m |
10.5 |
|
Max. Height of the main boom |
m |
29.2 |
|
Max. Height of the jib |
m |
35.6 |
|
Working Speed |
Turning speed |
r/min |
0-2 |
|
Extension time of the full boom |
s |
75-60 |
|
Lifting time of the lift boom |
s |
50-37 |
|
Extension time of horizontal tank outrigger |
s |
28-40 |
|
Extension time of vertical tank outrigger |
s |
27-40 |
|
Traveling Parameters |
Max. Traveling speed |
km/h |
75 |
|
Max. Grade ability |
% |
25 |
|
Min. Turning diameter |
m |
22 |
|
Min. Ground clearance |
mm |
255 |
|
Approaching angle |
° |
17 |
|
Departure angle |
° |
10.5 |
|
Weight Parameters |
The whole weight of full load |
kg |
19300 |
|
Load of the front axle |
kg |
5400 |
|
Load of the middle-rear axle |
kg |
13900 |
|
The whole weight |
kg |
19170 |
|
Dimension Parameters |
External dimension ( length×width×height) |
mm |
12060×2494× 3160 |
|
Vertical span of outrigger |
mm |
4750 |
|
Horizontal span of outrigger |
mm |
4990 |
|
Length of main boom |
m |
28.16 |
|
Elevation of main boom |
° |
-2-80 |
|
Length of vice boom |
m |
6.8 |
|
Chassis |
Model |
_ |
TAZ5193J |
|
Engine model |
_ |
WP6 . 210 |
|
Rated power/speed |
kw/ ( r/min) |
155/2300 |
|
Max. Torque/rotate speed |
n.m/( r/min) |
750/1400-1600 |
Qingdao Longxinweiye Truck Commercial Co., Ltd. is the distributor of STEYR, HOWO, HANIA, KING PRINCE and all SINOTRUK series trucks made by China National Heavy Duty Truck Corp. (CNHTC). We are a group corporation that combines industry and trade. Our products involve dump trucks, dump trailers, concrete mixers, semi-trailers and hauling trucks.
We are a group corporation that combines industry and trade. Our products involve dump trucks, dump trailers, concrete mixers, semi-trailers and hauling trucks.
As a national super conglomeration, CNHTC maintain the advantages in product technology, performance, quality, service, rate of performance and price all the time in domestic heavy duty truck market. As the distributor of CNHTC, We aim to represent our principal effectively and bring the most reliable trucks to our customers worldwide. We also have set many branch offices in east-Asia, middle-Asia, Africa and south-America.
Cooperate with us, You can get harmonious service like family.
