New Design High Quality Robot Shot Blasting Equipment
| Price: |
US $ 10000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
| Prod Model: |
QJ Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
Q37 Series |
| Cleaning Machine: |
Hook Type Shot Blasting Machine |
| Machine: |
Metal Surface Treatment Machine |
| Shotblasting: |
Shot Blasting Machine |
| Sandblasting: |
Sand Blasting Machine |
| Double Hooks: |
There Is No Pit and Low Cost |
| Big Blasting Chamber: |
China Shot Blasting Machine |
| Request: |
Surface Cleaning for Iron,Steel or Forging and We |
| Blast Cleaning: |
Steel or Forging Pieces |
| Basting Equipment: |
Shot Blast Cleaning Machine |
| Type: |
Special Shot Blasting Machines |
| Certification: |
ISO |
Product Description
New Design High Quality Robot Shot Blasting Equipment
Product description:
New Design High Quality Robot Shot Blasting Equipment

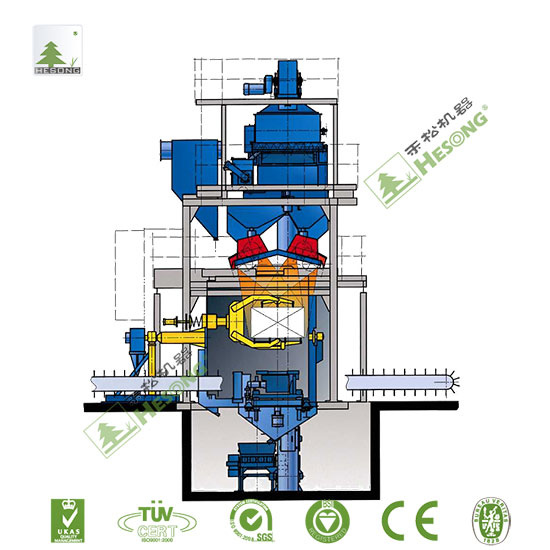

is a new efficient manipulator type shot blasting machine we developed according to market demand. Manipulator type shot blasting machine consists of two parts, a workpiece access to material systems;another shot blasting chamber system. Two independent systems to ensure that the shot blasting at the same time,other approved loading and unloading of the workpiece so as to achieve continuous, high-speed production,
Robot shot blasting equipment,PLC system control unit to monitor the many aspects of the entire production process to ensure that meet specific production requirements and process specifications. Synchronous feedback monitoring data,to ensure that every movement of the machine are accurate,smooth, and can achieve high production repeatability. A friendly touch screen interface,the control functions at the same time,changes in procedures,system monitoring and error diagnosis and reporting.
This equipments is mainly used for blast cleaning of the engine block,cylinder head,and so on.Peen-forming manipulator is by card claw. Hydraulic clamping structure. Gripping arm, gyre-orientation mechanism etc.
Product Advantage | 1. New and efficient robot abrator |
2.Other approved loading and unloading of the
3.workpiece in the shot blasting machine |
| 3.The PLC system control |
| 4.Closed-loop control |
Use | The mini version of the Robot shot blaster for very small aircraft components. |
The main body of the shot blasting system is adapted to the component size
and geometry, passage aperture, number of shot-blasting wheels or
compressed air capacity. |
The weight capacity of the robot and the type and sizing of the patented
grippers are dependent on the component weight. |
The machine was designed for automatic processing of cylinder heads for
five-cylinder as well as four-cylinder engine blocks. This dual usability is possible due to the special design
of the robot gripper. |
Among them, the card claw and exposed to the blast indoor structure is using 25 mm high manganese steel rolling wear-resisting material is made, the biggest support weight of 350 kg, according to the process features and run the process requirements, manipulator can implement rotation, designated swings, designated fixed is shot, thus, can change the workpiece and the relative position of the projectile, reducing the Yin and Yang of workpiece surface, and can make the cylinder body \ bonnet cavity or get the key waterway is shot, so as to achieve a block, the cylinder head shot peening purification efficiency of cleaning requirements.
It offers a complete range of robotic solutions, with extensive experience on both robotically controlled shot blasting, as well as integrating robots into the workpiece handling process, pre and post blasting.
Robot Gripper systems are suitable for wheel and air blasting. They work in combination with a workpiece gripper to pick up and move parts in front of the blast wheels or nozzles. This means that each Robot Gripper system always has an automatic workpiece loading/unloading. To prevent shot leakages, a flexible and effective seal is vital. we has developed and patented the most flexible seal for a Robot Gripper machine available on the market.
