| Prod Model: |
GP125 AUTO |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pump Body: |
Cast Iron |
| Impeller: |
Brass |
| Pump Cover: |
Brass/Iron |
| Pipe: |
1"*1" |
| Colour: |
as Your Request |
| Certification: |
CE ISO9001:2008 |
| Material: |
Cast Iron |
| Structure: |
Single-stage Pump |
| Power: |
Electric |
| Application: |
Clarified Water Pump |
| Theory: |
Vortex Pump |
| Type: |
Peripheral Pump |
Product Description

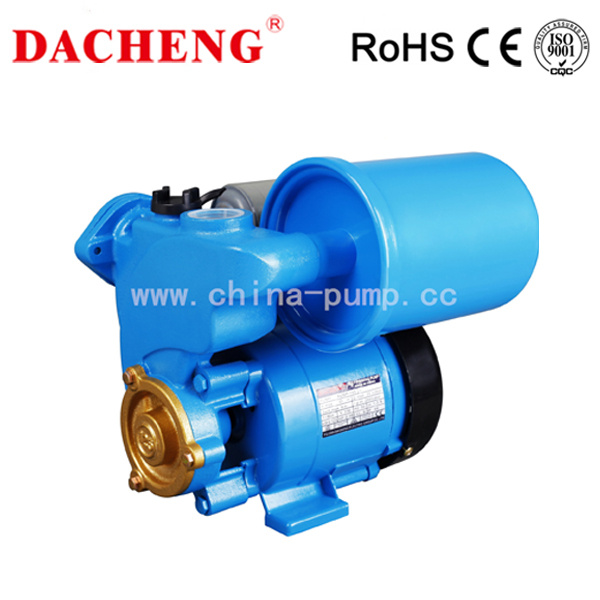

GP Series Automatic Water Pumps
These pumps are suitable for handing clean water not containing abrasive particles and fluids which are not chemically aggressive to the pump components.
They are extremely reliable, light, economic and simple to use, finding many uses in domestic applications, in particular the automatic distribution of water from surge tanks, watering gardens and for boosting insufficient mains water pressure.
These pumps should be installed in a covered area, protected against the weather.
FEATURES
1. Models: GP-125AUTO
2. Stator: 100% pure wire coil( copper or aluminum as you require)
3. Rotor: Enough sillicone steel sheet with high durability
4. Shaft: Rust resistance with 45# steel or stainles steel
5. Compact size and Simple operation
6. Heavy duty continuous work.
7. High-efficient and Low noise
OUR ADVANTAGE
1. Matured channels for purchasing high quality raw material
2. Advanced equipments to manufacture and process the pump parts
3. Rigorious check for pump castings, stators before any piece of product leave the factory
4. Multiple and Perfect assembling lines
5. Export-standard packing skill
CONSTRUCT
Pump
Pump body: Cast Iron
Impeller: Brass
Mechanical seal: Carbon/ceramic/Stainless Steel
Motor
Single Phase
Motor Housing: Aluminum (closed, externally ventilated)
Shaft: Carbon Steel/ Stainless steel Thermal protector (if required)
Insulation class: B and F
Protection class: IP44 or IP54
Power: 220-240V 50Hz( single phase 230V, 240V, 127V, 110, 115V/60Hz are available)
OPERATING CONDITION
Liquid temperature up to 60
Ambient temper up to 40
Total suction lift to 9m
Continuous duty
TECHNICAL DATA(220-240V/50Hz)
| Model | Single-phase Motor | N=2850r/min | Inch | PACKAGE DIMENSION&G.W | PACKING QTY
20' CONT |
| Input max | Output power | Current | Q.max | H.max | Suct.max |
| L | W | H | Kg |
| KW | KW | HP | A | L/min | m | m |
| GP-125AUTO | 0.25 | 0.125 | 0.16 | 1.30 | 35 | 35 | 9 | 1''*1'' | 250 | 180 | 240 | 6.8 | 2800PCS |
Fujian Dacheng Electric Group Co., Ltd. is located in Fuan city, Fujian province. Which founded in 1999, have 330 staffs.
Having 8 highly developed automatic assembling lines, experienced and professional engineering team, our monthly capacity of pump is 80, 000 PCS, motor and generator 10, 000PCS. We are a professional manufacturer dedicated to design and manufacture best quality, reliability micro-pump, motors and generators, to exceed the expectation from customers. Company pay attention to product quality, research and development, own provincial technical center.
Passing ISO9001: 2008 quality management system certification, our products obtained certificates from CE, SGS, RoHS, BV etc., also won 13 national patent, Y, YC, ST, STC series products have been gained quality license of export products. Exporting to Europe, South America, Middle East, Southeast Asia more than 30 countries and regions.
