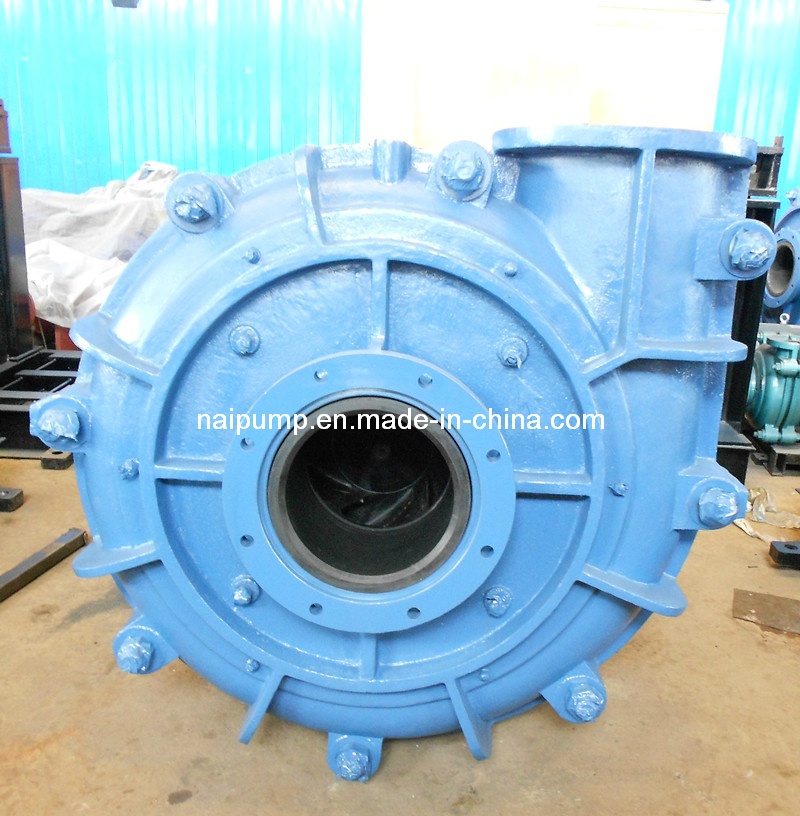

New Slurry Pump Used in Mining Abrasive Resistant Slurry Pump with Rubber or Metal Liners
| Price: |
US $ 1000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
| Prod Model: |
14-12-AHR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wear Resistant: |
Anti-Corrosion |
| Working Pressure: |
High Pressure Pump |
| Position Of Pump Shaft: |
Horizontal Pump |
| Impeller Number: |
Single-Stage Pump |
| Influent Type Of Impeller: |
Single Suction Pump |
Product Description
new slurry pump used in mining abrasive resistant slurry pump with rubber or metal liners
Naipu NP-AH(R) series centrifugal slurry pumps and spare parts can fully interchangeable with world famous brand. These pumps are of heavy duty construction, designed for continous pumping of highly abrasive and corrosive slurries. They feature a wide choice of replaceable abrasion resistant metal or molded elastomer casting liners and impellers, which are all interchangeable within a common casting assembly. Typical Application-Mineral Flotation Processing
Electric Factory Coal preparation
Coal Washing
Chemical medium processing
Sand and gravel handling

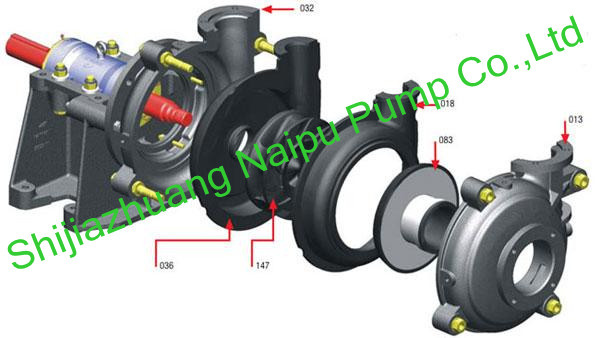

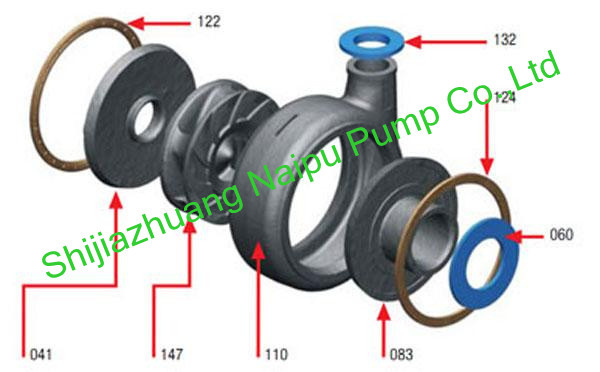

Effluent Handling Naipu NP-AH(R) pump component drawing
032: Frame plate 122: Stuffing Box seal 060: Intake Joint 036: Frame plate liner
132: Discharge Joint 013: Cover plate 083: Throat bush 018: Cover plate liner

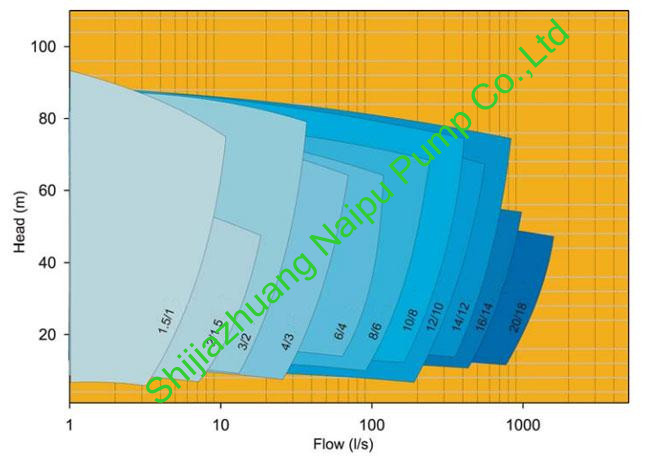

110: Volute liner 124: Volute Cover seal 147: Impeller 041: Frame plate liner insert NP-AH clear water pump selection curve
Shijiazhuang Naipu Pump Co., Ltd is a professional manufacturing enterprise of slurry pumps located in high and new technology development zone. The enterprise has one group of high quality technical and management talent working in Design, R & D, Production, Sales and Services. The technical team consists of talents specialized in hydraulic machinery, casting, heat treatment, engineering, material science and machining.
The company manufactures its products using advanced technique based on well built management and sales & service system. Product quality is guaranteed with various test and inspection facilities...
Naipu is specialized in the manufacture and sales of slurry pump and pump parts, especially the design and manufacture of products made with high abrasive, anti corrosive rubber material, including NP-AH(R). NP-M. NP-HH. NP-SP(R). NP-G series slurry pump, NP-ZG. NP-ZJG series slurry pump, NP-WS series dredging pump and NP-PNJ series slurry pump.
The products are widely used in mining, power, metallurgy, coal, dreading, building material and other Industrial lines to pump concentrate, tailings, sludge and other abrasive, high density slurries.
Meeting customers' technical requirements and with a long lifespan, lower cost and high safety, our products are sold well all over of China and far to southeast Asia, Noth America, South America, Russia and etc.
We are confident that we can offer customers satisfying products and services with our continuous efforts in product research and improvement. We look forward to working with customers domestic and abroad to build a promising future.
We can develop and produce a range of pumps according to different media situation to meet different duty requirment.
There are rubber material (R08, R12, R26, R33, R38, R55, S03, S12, S31, S21, S51, S52 U01 and etc), wear resistant metal material( A05, A07, A33, A49, A61 and etc), Corrosion Resistant stainless steel material (201, 304, 316, 316lL and etc ), fully meet customers' request.
We can undertake various OEM orders for pumps as well as spare parts customized according to drawings or samples.
