North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material Grade Of Forged Rings:
Nitronic 50
Processing Object:
Metal
Molding Style:
Forging
Molding Technics:
Forged
Product Description

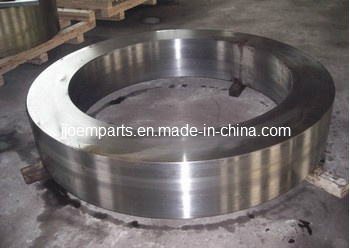

We are professional Nitronic 50 forged rings, Nitronic 50 forging rings, nitronic50 forged/forging rings, Nitronic 50 rolled rings, XM-19, xm19, xm 19 forged/forging rings, UNS S20910 forged/forging rings, 1.3964 forging/forged rings, 22-13-5 forged/forging rings factory from china We could produce Nitronic 50, UNS S20910, 1.3964 forged/forging rings with diameters ranging from 100MM to 6000MM and with weights from 10KGS to 15000KGS We have 1 tons, 3 tons, 6 tons, 9 tons forging hammer and 4500 tons hydraulic press, and 3 metres and 6 metre seamless rolled rings machine Our Nitronic 50, UNS S20910, 1.3964 forged/forging rings could be 100% Ultrasonic Inspection as per the forging parts UT Test standard of ASTM A 388 or EN10228. We could supply Nitronic 50, UNS S20910, 1.3964 forging steel material certificate as per the standard of EN10204-3.1 or EN10204-3.2 of third party Our Nitronic 50, UNS S20910, 1.3964 forged/forging rings are widely used in chemical pump, centrifugal pumps, ball valves, check valves, heat exchangers and pressure vessels. Stripper columns, separators, splitter, columns, hydro treaters, hydro crackers, desalters. In Cement industry and sugar industry, shipping building and Aviation, drilling stations, pipelines and refineries, in power generation and power plants. In oil & gas industry. Concrete mills and mixers, processing units, mechanical equipment, crystalizer equipment and so on Any inquiry of Nitronic 50, UNS S20910, 1.3964 forged/forging rings, please feel free to contact us. We are glad to quote the best price for every clients
itronic 50 materials, rough finished parts, finished parts such as round bars, stems, valve seats etc, process involved shall be hot rolling / forging and precision casting.
Nitronic 50 Chemical composition:
Alloy
%
Ni
Cr
Fe
C
Mn
Si
N
Mo
Nb
V
P
S
Nitronic 50
Min.
11.5
20.5
52
4
0.2
1.5
0.1
0.1
Max.
13.5
23.5
62
0.06
6
1
0.4
3
0.3
0.3
0.04
0.03
Nitronic 50 Physical properties
Density
7.8g/cm3
Melting point
1415-1450 °C
Nitronic 50 Alloy mi nimum mechanical properties in the room temperature
Alloy status
Tensile strength
Yield strength
Elongation
Brinell hardness
Rm N/mm²
RP0.2 N/mm²
A5 %
HB
Solution treatment
690
380
35
≤241
Jiangsu Liangyi Co.,Limited is one professonal special alloy material supplier from China,
Since establised in 1997, our products has been exported to many countries, such as American, European countries, Asian countries, and so on.Our products are widely used in petroleum and chemical industry, power generation, shipbuilding, heavy machinery, Oil&Gas applications:Christmas trees, wellhead components, spools, , riser applications, pressure vessel, and so on.
We own one workshop of more than 8000 square meters, with a vacuum melting, electroslag remelting, forging,Casting,heat treatment, machining, quality inspecting machines and a full-line of production system.
Our company mainly produces materials in:Carbon&alloy steel, Tool&Die Steel,Stainless steel, Duplex Stainless Steel, Nickel alloy, Super Alloy,Cobalt Based alloy,Heat Resistant steel,Invar alloy ,low Expansion Alloy,Soft Magnetic Alloy and so on
We could produce these material in Forging parts,Forged Rings,Rolled Rings,Bars,flanges, Casting Parts,Pipe Fittings,seamless pipe,Weled Pipes,Plates,Sheets,Strips,Coils Wires,spring ,Fasteners,Machining Parts, and so on
Following is the steel grade that we could do
