| Prod Model: |
OEM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Seal Type: |
Packing Seal, Expeller Seal, Mechanical Seal |
| Wet Parts: |
High Chrom Alloy Pump Parts |
| Color: |
Any |
| Type: |
Centrifugual End Suction Slurry Pump |
| Impeller Number: |
Single-Stage Pump |
| Working Pressure: |
High Pressure Pump |
| Influent Type Of Impeller: |
Single Suction Pump |
| Position Of Pump Shaft: |
Horizontal Pump |
Product Description

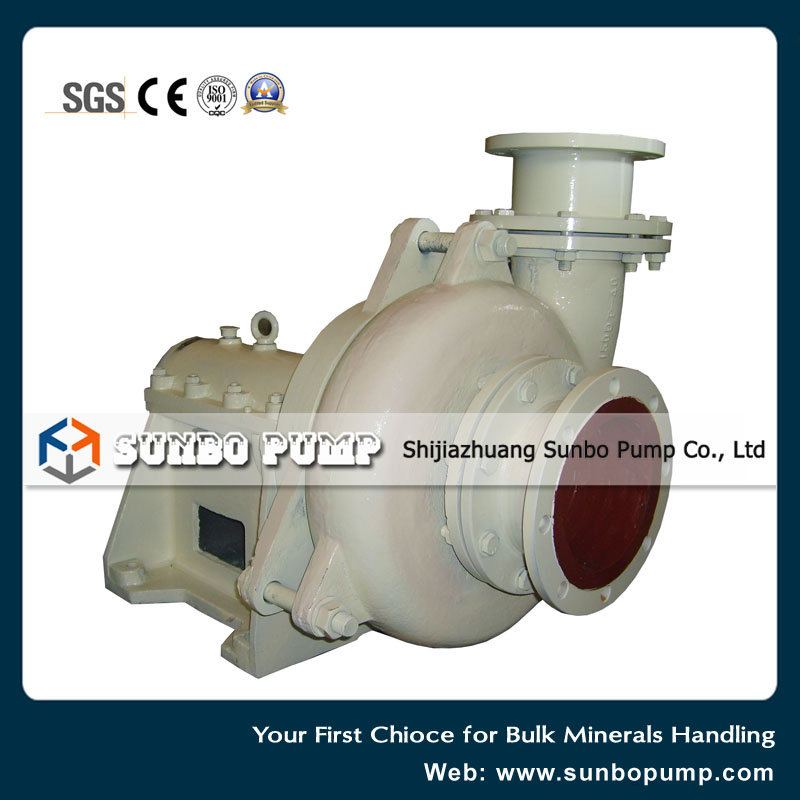

OEM Centrifugal Slurry Pump & Pump Parts
Our Main Sereis:
HS (R)Series Introduction:
HS(R) pump is horizontal centrifugal heavy duty slurry pump and it is designed for the continuous pumping of high abrasive, high density slurries with minimal maintenance requirements. It will maintain high efficiency over the wear life of its components. The rubber and metal lined pumps feature casings which are radially split into two halves. Minimum casing bolts reduce maintenance and minimise downtime. The pumps of HS can be installed as multi-stage series.
Application:
HS(R) series slurry pump is widely used in metallurgy, mining, mineral processing, dredging, de-watering, water treatment, coal washing, mill, cyclone feed, tailing, power, building material...etc. various industrial sites. HS pumps are called different names for different working duties: Mineral processing pump, Mill discharge slurry Pump, Booster pump, Feeding pump, Tailing pump,Transfer pump Thickner Underflow Pump, De-watering screen pump, Pressure pump, Concentrate pump...
Features:
1.Replaceable wear-resistant metal or rubber liners and impellers, long service life time.
2. Easy to adjust the space between impeller and front liner and can be removed completely when maintaining.
3.Bearing assembly use grease lubrication.
4. Seal types: packing seal, expeller seal and mechanical seal.
5. Discharge direction can be installed at intervals of 45 degrees as request and oriented to any eight positions to suit applications.
6. Drive types: V belt drive, gear reducer drive, fluid coupling drive, and frequency conversion drive devices.
7. Wide application, good NPSH and high efficiency. The series pump can be installed in multistage to meet the delivery for long distance.
Specification :
D:25 mm to 450 mm
Q: to 5,000 m3/hr
H: to 73 m
Performance Sheet:
Pump
Model | Allowable
Max. Power(KW) | Clear Water Performance |
|
| Capacity Q | Head
H(m) | Speed
n(r/min) | Max.Eff.
η% | NPSH
(m) | Impeller
Dia. |
| m3/h | l/s |
| 25HS-B | 15 | 12.6-28.8 | 3.5-8 | 6-68 | 1200-3800 | 40 | 2-4 | 152 |
| 25HSR-B | 15 | 10.8-25.2 | 3-7 | 7-52 | 1400-3400 | 35 |
|
|
| 25HHS-C | 30 | 16.2-34.2 | 4.5-9.5 | 25-92 | 1400-2200 | 20 | 2-5.5 | 330 |
| 40HS-B | 15 | 32.4-72 | 9-20 | 6-58 | 1200-3200 | 45 | 3.5-8 | 184 |
| 40HSR-B | 15 | 25.2-54 | 7-15 | 5.5-41 | 1000-2600 | 50 | 2.5-5 | 178 |
| 50HS-C | 30 | 39.6-86.4 | 11-24 | 12-64 | 1300-2700 | 55 | 4-6 | 214 |
| 50HSR-C | 30 | 36-75.6 | 10-21 | 13-39 | 1300-2100 |
| 2-4 | 213 |
| 50HHS-D | 60 | 68.4-136.8 | 19-38 | 25-87 | 850-1400 | 47 | 3-7.5 | 457 |
| 75HS-C | 30 | 86.4-198 | 24-55 | 9-52 | 1000-2200 | 71 | 4-6 | 245 |
| 75HS-D | 60 | 86.4-198 | 24-55 | 9-52 | 1000-2200 | 71 | 4-6 | 245 |
| 75HSR-C | 30 | 79.2-180 | 22-50 | 5-34.5 | 800-1800 | 59 | 3-5 | 245 |
| 75HSR-D | 60 | 79.2-180 | 22-50 | 5-34.5 | 800-1800 | 59 | 3-5 | 245 |
| 100HS-D | 60 | 162-360 | 45-100 | 12-56 | 800-1550 | 65 | 5-8 | 365 |
| 100HS-E | 120 | 162-360 | 45-100 | 12-56 | 800-1550 | 65 | 5-8 | 365 |
| 100HSR-D | 60 | 144-324 | 40-90 | 12-45 | 800-1350 | 65 | 3-5 | 365 |
| 100HSR-E | 120 | 144-324 | 40-90 | 12-45 | 800-1350 | 65 | 3-5 | 365 |
| 100HHS-F | 260 | 324-720 | 90-200 | 30-118 | 600-1000 | 64 | 3-8 | 711 |
| 150HS-E | 120 | 360-828 | 100-230 | 10-61 | 500-1140 | 72 | 2-9 | 510 |
| 150HS-S | 300 | 360-828 | 100-230 | 10-61 | 500-1140 | 72 | 2-9 | 510 |
| 150HSR-E | 120 | 324-720 | 90-200 | 7-49 | 400-1000 | 65 | 5-10 | 510 |
| 150HSR-R | 300 | 324-720 | 90-200 | 7-49 | 400-1000 | 65 | 5-10 | 510 |
| 150HHS-S | 560 | 468-1008 | 130-280 | 20-94 | 500-1000 | 65 | 4-12 | 711 |
| 200HS-ST | 560 | 612-1368 | 170-380 | 11-61 | 400-850 | 71 | 4-10 | 686 |
| 200HSR-ST | 560 | 540-1188 | 200-450 | 7-45 | 300-650 | 80 | 2.5-7.5 | 686 |
| 200MS-E | 120 | 540-1440 | 150-400 | 14-60 | 600-1000 | 73 | 4-10 | 549 |
| 200MS-R | 300 | 540-1440 | 150-400 | 14-60 | 600-1000 | 73 | 4-10 | 549 |
| 250HS-ST | 560 | 936-1980 | 260-550 | 7-68 | 300-800 | 82 | 6 | 762 |
| 250HSR-ST | 560 | 720-1620 | 320-700 | 13-14 | 300-500 | 79 | 3-8 | 762 |
| 300HS-ST | 560 | 1260-2772 | 350-770 | 13-63 | 300-600 | 77 | 3-10 | 965 |
| 300HSR-ST | 560 | 1152-2520 | 380-850 | 11-63 | 250-550 | 79 | 4-10 | 965 |
| 350HS-ST | 1200 | 1368-3060 | 380-850 | 11-63 | 250-550 | 79 | 4-10 | 1067 |
| 400HS-TU | 1200 | 2160-5054 | 600-1400 | 8-66 | 200-500 | 80 | 4.5-9 | 1245 |
| 450HS-TU | 1200 | 2520-5400 | 700-1500 | 13-57 | 200-400 | 85 | 5-10 | 1370 |
Remark:
1.Capacity range recommended:50%Q'≤Q≤110%Q'(Q' Appropriate to capacity at highest efficiency point).
2.NPSH: appropriate to point Q recommended at highest speed.
Shijiazhuang Sunbo Pump Co., Ltd is a professional centrifugal slurry pump manufacture of China. Sunbo is to serve global industries that supply valuable raw materials to the marketplace with trustworthy and reliable pumps, parts, and service. We exist to provide unmatched engineering excellence, low lead times through global inventory stock, attentive customer service, and cost-effectiveness for our customers. Our products are widely used in mining, metallurgy, coal washing, power generation plant, sewage water treatment, dredging, and chemical and petroleum industries.
Our pumps are designed for the robustest abrasive and corrosive pumping environments. The main pump parts are made of high chrome alloy, variety of elastomers or the latest in ceramic materials for longer service life and higher efficiencies.
And, the pump parts are interchangeable with one of the most recognized brands worldwide in the slurry pump business. That is to say, a further reduction of customer costs, consolidation of inventory and interchangeability with existing pumps.
Our aims and objectives are to drive down your cost of slurry pumping. We accept OEM business, pump and pump parts are both ok. Welcome to SUNBO.
