| Prod Model: |
parallel shaft |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Circular Gear |
| Manufacturing Method: |
Hobbing & Carburizing & Grinding |
| Toothed Portion Shape: |
Customized |
Product Description
Description:

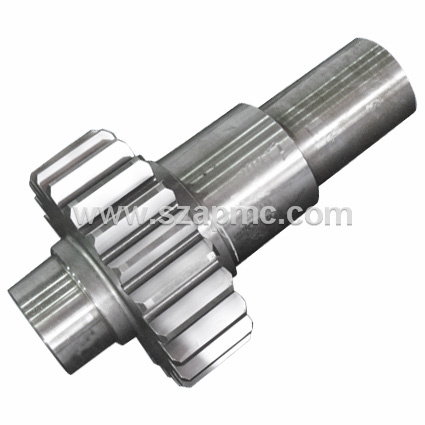

Gear Shaft,Pinion Shaft,Gear Axle or Shaft Forgings can be made of alloy steel,carbon steel or as per customer's requirement.It conforms to the standard of ASTM,EN,DIN,GB.
The manufacturing equipment is 30~185MN hydraulic press,the forging ratio>3,the technical condition is in accordance with the standard of ASTM,EN,DIN.GB.
All these parts can be used in heavy trucks, heavy-duty reducer and gearbox, heavy industry, metallurgical machinery, oilfield equipment, Wind power generator
The Gear Shaft production ranges:
Model: Geared Shaft
D P: 0.6 to 3
Module: 6 to 40
Diameter: 200 to 3000 mm
Ground tooth: AGMA 13
Standard: AGMA, ISO, DIN, JIS
Material: Customized
|
Gears precision mapping table relationship |
|
Individual tolerance |
Fa |
ISO; GB/T |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
|
DIN |
3 |
4 |
5 |
5 |
6 |
7 |
8 |
9, 10 |
|
JIS |
-- |
0 |
1 |
2 |
3 |
3 |
4 |
-- |
|
AGMA |
15 |
14 |
13 |
12 |
11 |
10 |
9, 8 |
7, 6 |
|
Fi ' ' |
ISO; GB/T |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
|
DIN |
-- |
5, 6 |
7 |
8 |
9 |
10 |
-- |
11 |
|
AGMA |
-- |
14, 13 |
12 |
11 |
10 |
9 |
8 |
8 |
|
Fi ' ' |
ISO; GB/T |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
|
DIN |
-- |
5 |
6 |
7 |
8 |
9 |
9 |
10 |
|
AGMA |
-- |
13 |
12 |
11 |
10 |
9 |
8 |
7 |
ISO 1328.1-1997/ISO1328.2-1997_ _ National standards
DIN 3961-8~967-8----German standard
JIS B1702~1703(85)-----The Japanese standards
ANSI/AGMA 2000-A88-----American standards
GB/T 10095.1-2001/GB/T10095.2-2001-----Chinese standard |
Suzhou Asia Pacific Metal Co., Ltd. Located in Suzhou City, Jiangsu Province, China, is a first rate gear manufacturer and gear supplier now specializing in manufacturing Helical Gears. Our diverse product line includes spur gears, helical gears, double-helical gears, gear shafts, gear rings.
Suzhou Asia Pacific's manufacturing equipment includes 4 sets of German NILES CNC gear grinding machines, 2 sets of Hofler CNC gear grinding machines, and 7 thermal treatment systems. All of our equipment utilizes leading international technology. Our capacity for thermal treatment ranks among the best in Asia. As a truly international gear manufacturer and gear supplier, Suzhou Asia Pacific's product line is extremely broad, and our diverse international clientele includes companies from the USA, Europe, Japan, and Korea.
Suzhou Asia Pacific's stellar quality control system has been awarded with coveted ISO9008: 2000 certification. Our products uphold the highest international standards, including international standard ISO, American standard AGMA, Germany standard DIN, and Japanese standard JIS. The company boasts a team of excellent technical professionals and outstanding managers with the experience to guarantee high-quality production.
Suzhou Asia Pacific strives to keep its customers' needs at the center of all of its policies. The company offers extensive services to the fields of aviation, vessel, metallurgy, coal mining, oil field equipment, engineering machinery, pneumatic machinery and the transmission industry. If you are interested in any of our products, please do not hesitate to contact us. We look forward to future cooperation with you, our valued customer.
