| Prod Model: |
CF-044 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Package: |
Pallet ,Manmade Wooden Case or as Your Requirement |
| Certificate: |
ISO 9001 SGS |
| Origine: |
Qingdao |
| Service: |
OEM and ODM |
| Brand: |
Chifine |
| Delivery Time: |
30 Days After Receiving The Payment |
| Supply Ability: |
1500tons Per Month |
| Material Type: |

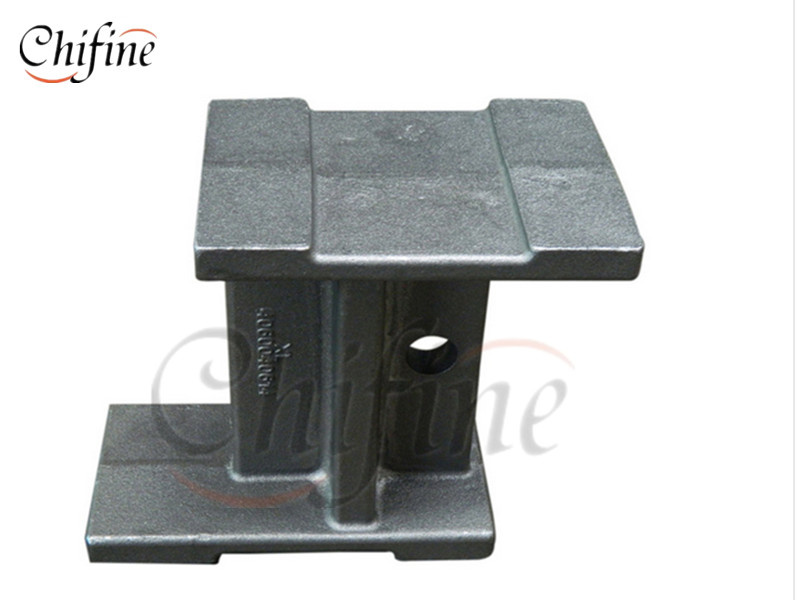

Grey Iron |
| Machining Type: |
CNC Tunring Milling Drilling Lathe |
| Heat Treatment: |
Normalizing ,Tempering ,Quenching .Anealling |
| Type: |
Clay Wet Sand |
| Machining: |
CNC Machining, CNC |
Product Description
Details of the product:
1. Material & Standard: Grey iron, ductile iron, malleable iron, carbon steel, alloy steel(high Manganese steel, high Chromium steel and others), Stainless steel, Aluminum alloy, Copper alloy;
JIS, DIN, BS, GB, ASTM.
2. Moulding processing: Green sand, Resin sand, Waterglass sand, Lost wax/Silicon sol or Die casting.
3. Melting facilities: Cupola furnace, medium frequency induction electric furnace or electric arc furnace.
4. Casting Inspection facilities: Direct-reading spectrum instrument, metallographic analysis, magnetic particle inspection, ultrasonic inspection, X-ray inspection, mechanical properties inspection.
5. Heat treatment facilities: Aging oven, Electric furnace, Normalizing, Quenching and Tempering equipments.
6. Surface treatment: Shot blast cleaning, polishing, Chrome plating, Zinc plating, powder coating and others.
7. Machining facilities: CNC centres, NC lathes, NC milling machines, NC boring machines, drilling machines and other common machines.
8. Inspection facilities: CNC 3-D inspecton facilities and others.
9. Industrial categories: Tractor, Heavy-duty truck industry, Car industry, Farm machinery, Construction
Engineering machine industry, Electricity power industry, Elevator industry, Valve industry, General machine industry and others.
10. Part Unit weight range:
For grey iron casting: Up to 15000kgs;
For ductile iron casting: Up to 4000kgs;
For high manganese steel casting: Up to 5000kgs;
For carbon steel & alloy steel casting: Up to 10000kgs;
For Aluminum/copper alloy die casting: From 8g up to 12kgs;
For Investment/lost wax casting: Up to 80kgs;
Machining Ability
Our machining shop located in Qingdao using the latest CNC equipment to provide our customer with high quality products.
Horizontal and Vertical Machining Center
CNC lathe and normal lathe
CNC drilling and milling Center
Other assistant equipment
4. Product Design and casting simulation
Successful parts are original from successful design. We own high level engineers on the product design. They are good at make drawing using the software of CAD. PROE, SOLIDWORKS for assuring production process well.
Our technical group have rich experience in casting process, so we can put forward reasonable suggestions to the product structure design on various performance, process parameters to solve the customer's requirement, set up the 3D model, get the results from pouring simulation analysis. Then modify and optimize the scheme to determine the correct casting
PROCESS |
MATERIAL |
SAND
CASTING |
Green Sand |
Grey Iron, Ductile Iron, Malleable Iron, Stainless Steel, Carbon, Steel, Aluminium,Brass,Bronze |
Furan Resin Sand |
Cold Harden Resin Sand |
INVESTMENT
CASTING |
Sodium Silicone (Water glass) |
Stainless Steel, Carbon Steel, Special Alloy Steel Bronze, Brass, Aluminum |
Silica Sol |
FORGING |
Hammer Forging |
Stainless Steel, Carbon Steel, Alloy Streel, Brass, Aluminum |
Die Forging |
Roll Forging |
STAMPING MACHINING |
STAMPING MACHINING |
All metal material |
Qingdao Chifine Machinery Co., Ltd is One Famous Company in China Which Specialized in Various Metal Casting Products with Over 10 Years Experience Located in Qingdao China. It Covers a Comprehensive Range of Forging, Stamping, Sand Casting, Investment Casting, Die Casting and Machining and Was Widely Used in Agriculture Machinery, Motor Vehicle, Architecture, Railway and Engineering Chifine Has Accumulated Important and Valuable Experience in Design, Manufacturing and Customer Service Over These Years We Will Continue to Integrate Our Technical Superiority, Improve Process and Quality to Increase Market Share and Create More Brilliant Future.
Automative Casting Line:
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
• Product Size: 0-1000mm.
• Weight: 0.2kg-100kg
Resin Sand Casting
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel casting(ASTM/UNS; DIN; JIS; NF; BS; ISO)
• Product Size: 0-1500mm.
• Weight: 10kg-5000kg
Shell Mould Casting
Shell casting is one of resin sand casting process.
It is suitable for thin-wall casting parts, be free from porosity.
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel alloy; Aluminum alloy; Copper alloy.
• Product Size: 0-500mm.
• Weight: 50g-100kg.
• Wall thickness: 4-20mm
Lost Wax Casting
• Advanced wax-injection-machine and tool to ensure accurate wax-patten.
• Stable temperature and humidity environment make the wax-patten no deformation.
• Material:
Carbon steel; Stainless steel; Alloy steel.
Grey iron(GG20-GG35).
Ductile iron(GGG40-GGG60);
Malleable cast-iron
(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Aluminum alloy; Copper alloy.
• Casting size: 0-500mm.
• Casting weight: 50g-100kg
Stamping and Forging Line
• Stamping and forging equipment: 16T-300T press machine
• Automatic transport forging line
• Material: Carbon steel; Stainless steel; Alloy steel.
Aluminum alloy; Copper alloy.
Machining Shop
Our machining shop located in Qingdao, using the latest CNC equipment to provide our customer with high quality products.
• Horizontal and Vertical Machining Center
• CNC lathe and normal lathe
• CNC drilling and milling Center
• Other assistant equipment
