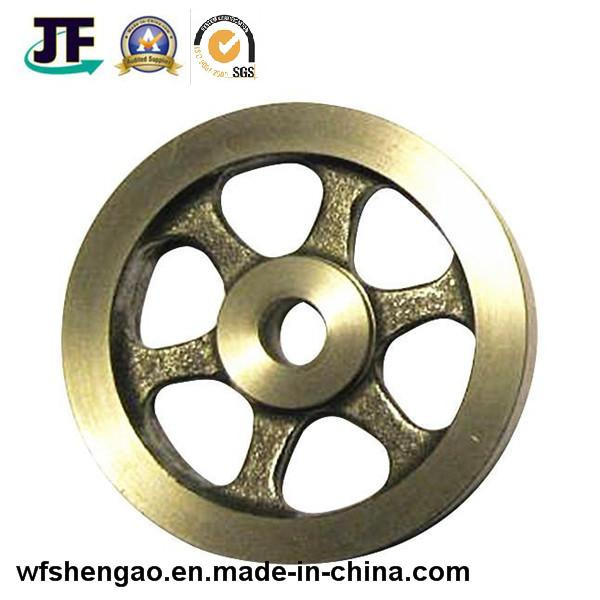

OEM Grey Iron Casting Flywheel/Sand Iron Casting Flywheel

Name: OEM Grey Iron Casting Flywheel/Sand Iron Casting Flywheel
Brand: china-castingforging.com
SKU: 698746532
Availability: InStock
Rating: 4.3 (33 reviews)

Price:	US $ 2-10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Weifang Shengao Machinery Co., Ltd.

Showroom Product Company Profile

Prod Model:	WF-JF
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item:	OEM Grey Iron Casting Flywheel/Sand Iron Casting F
Raw Material:	Carbon Steel,Stainless Steel
Factory:	Over 15 Years' Experience
Technics:	Sand Casting+CNC Machining
Size:	Cn150X150mm
Weight:	0.5-50 Kgs
Preision Casting:	Lost Wax Casting
Casting:	Die Casting Sand Casting
OEM And ODM:	100%
Export Markets:	Global
Type:	Clay Dry Sand

Product Description

OEM Grey Iron Casting Flywheel/Sand Iron Casting Flywheel

Specifications
Ductile iron Sand Casting Water pump bodys
1.strict QC & timely delivery
2.Standard:BS,DIN,ASTM
3.good at custom
4.OEM

production details:
1.Material: GGG40.
2.Size:CN150X150mm.
3.Weight:3.4kg.
4.Technological process: Sand casting+CNC Machining.
5.Inspection: mechanical properties, leaking free test conducted by in-house or third party
6.Use: Submersible pump body .
production capacity:
1.Casting classification:Sand casting;Precision casting;Vacuum process casting etc.
2.gray iron, ductile iron, stainless steel ,carbon steel,alloy steel, etc.
3. Adoption standard: BS,DIN,ASTM GB etc.
4. Weight range:0.5~5000kg.
5. Producing capacity : 2,000 tons per month .
6. Main application: Metallurgy;Machinery;Plastics;Rubber;Pharmaceutical;Textiles; Mining; Paper-making; Packaging.
7. Main equipments: Furnaces;heat treatment furnaces;direct-reading spectrometer;shot -blasting equipments, etc.
8. Surface treatment: polishing,plating,shot blasting,heat treatment ,etc
9. Inspection and test: Foundry in home,third part inspection,Material report,UT, MT, RT, and PT,etc..
10. Packing and shipping : Stand export packing;20day make modul & sample;delivery time against your quantity.
11. Casting service: your logo, character, trade name, number etc can be casted on the surface clearly.

Item		Material	Technical Process
1	Ductile iron castings	ASTM A 536-Gr.60-40-18,65-45-12,80-55-06,80-60-03; DIN-GGG40,GGG50,GGG60,GGG70; JIS-FCD40,FCD50,FCD60,FCD70; BS-Gr370-17,Gr420-12,Gr500-7,Gr600-3,Gr700-2; NF-FGS370-12,FGS400-12,FGS500-7,FGS600-3,FGS700-2;	Green-sand moulding Resin-sand moulding Lost foam cast Shell-core cast Electric-furnace smelting
2	Grey iron castings	ASTM A48-No.20,25,30,35,40,45,50; ASTM A126-Class A, Class B, Class C; DIN-GG10,GG15,GG20,GG25,GG30,GG35; JIS-FC10,FC15,FC20,FC25,FC30,FC35; BS-Grade 150,180,220,260,300,350; NF-FGL150,FGL200,FGL250,FGL300,FGL350;	Green-sand moulding Resin-sand moulding Lost foam cast Shell-core cast Electric-furnace smelting
3	Carbon steel castings	ASTM A216-Gr. WCB, Gr. WCA, Gr. WCC; ASTM-415-205, 450-240, 485-275, 80-40; DIN- GS-C25(1.0619), GS-38(1.0416), GS-45(1.0446), GS-52(1.0552), GS-60(1.0558); JIS-SC410, SC450, SC480, SCC5; BS-A1, A2, A5; NF-GE230, GE280, GE320, GE370	Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Lost foam cast Shell-core cast Electric-furnace smelting
4	Stainless steel castings	ASTM-CF-8M, CF-8, CA-15, CA-40, 316, 304; DIN-G-X6CrNi18 9(1.4308), G-X7Cr13(1.4001) G-X20Cr14(1.4027), 1.4408; JIS-SCS13, SCS 1, SCS 2, SCS 14A; BS-304C15, 410C21, 420C29, 316, 304; NF-Z6CND18.12M, Z6CN18.10M, Z12C13M, Z20C13M	Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Electric-furnace smelting
5	Alloy steel castings	DIN-GS-40Mn5(1.1168), GS-20Mn5(1.1120); GS-37MnSi5(1.5122), GS-34CrMo4(1.7220); JIS-SCMn3, SCW480, SCSiMn2, SCCrM3, SCMnCR3; ASTM-LCC UNS-J02505, J13048 NF-G20M6, G35CrMo4	Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Electric-furnace smelting

OEM Grey Iron Casting Flywheel/Sand Iron Casting Flywheel

Material	1.Sand casting&Gravity casting&Low pressure die casting: A356/A319/A413/ZL101/ZL102/ZL104/ZL107/LM6//LM/20/LM25/ENAC-42100/ENAC-42200/EN AC-43000/ENAC-43200/EN AC-46000/EN AC-46200 2.High pressure die casting: A380/A390/A360/ADC10/ADC12/ENAC-43400/ENAC-44300/ENAC-44400/ENAC-46000/ENAC-46100/ENAC-46200/ 3. CNC machining casting: 6061-T6/6063-T6
Processing	Sand casting, Gravity casting, high pressure die casting, low pressure die casting and CNC Machining casting.
Design	As per the customer's drawings
Equipment of Casting	1.High pressure die casting machining: 125T/180T/250T/ 280T/500T/800T/1250T 2.Gravity casting machine: 5 production lines 3.Low pressure die casting machining: 1 production line 4.Sand casting machine: 6 production lines 5.Degassing equipment and opportunities to refine the material 6.Machining: 3Sets CNC Machine;3 sets Milling machine; 3 sets Turning machining; 10 sets drill and tap machine
Testing Facility	Spectrometer, tensile test machine, hardness test machine, CMM dimension report
Certificate	ISO9001:2008/SGS
Standard	ASTM, DIN,JIS, EN, ISO, GB standards
Software	Pro/E,UG, Solidworks, Auto CAD, PDF
Precision Machining	CNC turning, milling, drilling, grinding, cutting, reaming and threading
Finished	Polishing, sand blasting, heat treatment, painting, powder coating, anodizing, electroplating, Chrome plating, mirror polishing.
Service	OEM service available,produce according to customer's drawings
Products & Application Scope	All kinds of aluminum casting: include automotive parts, railroad parts, medical parts, marine parts, lighting parts, pump body, valve parts, architectural parts and furniture parts so on
Advantages	1. Lutz works with over 8 years in Aluminum casting for Japanese and German market; 2. Lutz have four casting types producing lines; 3. Near Sea Port and Air Port; 4. Passed ISO9001:2008/SGS ; 5. OEM service according to customers'drawings; 6. From Casting to finished surface, owned casting, polishing and plating workshops.Wcan offer good quality and strict delivery time; 7. With samples and order: We can offer dimension report,Chemical composition and Mechanical properties; 8. Control material with spectral and thermal analysis equipment (density and processing); 9. Spectral analysis of raw-material and liquid melt, batch before casting.

OEM Grey Iron Casting Flywheel/Sand Iron Casting Flywheel
Q: Why choose Shengao product?
A: We shengao have our own plant-- Weifang Shengao machinery Co., Ltd, therefore, we can surely promise the quality of every product and provide you comparable price.
Q: Do you provide OEM Service?
A: Yes, we provide OEM Service.
Q: Do you provide customized flywheel?
A: Yes. Customers give us drawings and specifications, and we will manufact accordingly.
Q: What is your payment term?
A: We provide kinds of payment terms such as L/C, T/T, Paypal, Escrow, etc.

If there's anything I can help, please feel free to contact with me.

WeiFang Shengao Machinery Co., Ltd is located in WeiFang the famous city in China and the world center of kites. It is 140 kilometers far away from Qingdao port, the transporation is very convenient. Our company use the location advantages of ShanDong province to integrate resources so that we can processing according to the drawings of customers. We mainly undertake the casting parts, machined parts and other products. Our Import and Export Department have many years experiences of foreign trade, products are mainly exported to the United States, Denmark, Italy, Russia, Australia etc.

Over the years, company adhere to the guideline for management of "Quality first, Reputation first, Delivery just-in-time, Price best". We will try our best to improve the technical level and perfect the enterprise management. Our company will depend on superior quality of products and sincere service to cooperate with dometic and overseas, new and old customers and establish eternal friendship to create a bright future.
