| Prod Model: |
WF-JF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
OEM Grey Iron Sand Casting Flywheel/Diesel Engine |
| Place Of Origin: |
China(Mainland) |
| Size And Design: |
as Per Customers Requirement or Sample |
| Process: |
Sand Casting |
| Casting Service: |
Your Logo, Character, Trade Name, Number |
| Unique: |
China Gold Supplier |
| Standard Or Nonstandard: |
Nonstandard |
| Qualiy Control: |
Professional QC Stuff, Spectrograph |
| Quality: |
Strong Enginnering Team Make High Q |
| Painting: |
According to Drawing |
Product Description

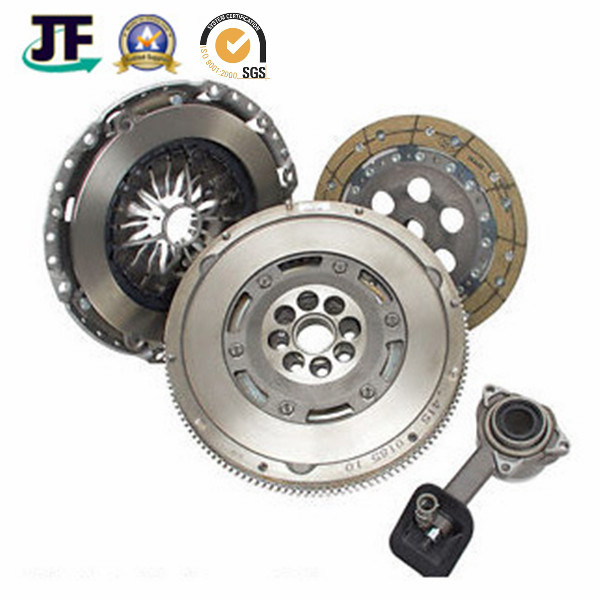

OEM Grey Iron Sand Casting Flywheel/Diesel Engine Flywheel
flywheel,Casting flywheel,sand casting flywheel,precision casting flywheel,
stainless steel casting flywheel,steelcasting flywheel,steel casting ,stainless steel casting,carbon
steel casting,casting,metal casting
Type: | Flywheel | Truck Model: | Beiben, oton, Howo, Shacman, etc. | Size: | Standard |
| OEM No.: | 188-1005361 | Material: | stainless steel | Place of Origin: | Shandong, China (Mainland) |
| Brand Name: | Yuchai | Model Number: | 188-1005361 | Product: | Yuchai Engine Flywheel 188-1005361 |
| Key Word: | Flywheel | Authorized Store: | Yes | Color: | Gray |
| Stock: | in-stock products available, for quick delivery | Sample Order: | Acceptable | Manufacturer/Factory: | We have original parts and also accept customizing. |
| Trade Terms: | FOB, CIF, etc |
|
|
|
|
OEM Grey Iron Sand Casting Flywheel/Diesel Engine Flywheel
Material specification: 1. carbon & low alloy steel;
2. stainless steel;
3. high alloy & wear resist steel;
4. gray iron; ductile iron;
5. malleable iron;
6. alloyed cast iron;
7. aluminum alloy;
8. cooper alloy;
9. zinc alloy
Range of casting weight: 0.50kg-450kg
Heat Treatment: Normalizing
Quenching
Tempering
OEM Flywheel Elliptical Flywheel Treadmill Flywheel for Sale
OUR MACHINING PROCESS :
Occupies an area more than 6,000 square meters
More than 40pcs big CNC lathes Ø500 - Ø1200
Machining center 1400 x 825 x 1000mm 4 axis
Can provide services: turning; milling; grinding; drilling; inserting; broaching; boring; polishing
Surface preparation: passivation; polishing; plating; coating; painting; zinc phosphate; dacrotized / dacromet technology
OEM Grey Iron Sand Casting Flywheel/Diesel Engine Flywheel
1.Ductile Iron Castings:
molding process: Resin sand/Green Sand
Material: EN-GJS-400-15/EN-GJS-500-7/EN-GJS-600-3/EN-GJS-700-2
Molding: Hand molding/Molding machine Z145/146/148/Molding line.
Possible Heat Treatment: Annealing
Industry involved: Municipal Construction / Fluid
/Automotive
Part unit weight range: 0. 5kg-2000kgs
Max/Min wall thickness requirements: 4mm-250mm
Manufacturer Certification: ISO9001(2000)/ TS16949
OEM Flywheel Elliptical Flywheel Treadmill Flywheel for Sale
2. Grey iron castings: OEM Life Fitness Treadmill Flywheel for Proform Treadmill
1) molding process: Green sand/Resin sand
2) Material: EN-GJL-150/DIN 1691 GG-15,EN-GJL-200/DIN 1691-GG20,EN-GJL-250/DIN1691-GG25
,EN-GJL-300/DIN1691-GG30
3) Molding: Hand molding/ Molding machine Z145/146/148/Molding line.
4) Industry involved: Municipal industry/Construction Fluid industry/Automotive industry
5) Part unit weight range: 0.5kg-2000kgs
6) Max/Min wall thickness requirements: 4mm
7) Manufacturer Certification: ISO9001(2000)/ TS16949
OEM Grey Iron Sand Casting Flywheel/Diesel Engine Flywheel
OEM Grey Iron Sand Casting Flywheel/Diesel Engine Flywheel
Specifications:
1.ISO9001-2008.
2.Has advanced euipment and over 15 years experience.
3.price: competetive price , Precision made.Experience & Reasonable QC that you can reply on.
4. Process: Precision made.Experience & Reasonable QC that you can reply on Each part would be given 100% test and tryout before shipment.
5. Adequate supply capacity. Punctual delivery time.Forging: We can provide forged ring, open-die forging, forged shaft, forged bush, forged shape, drop forging, precision forging, hot-pressed part, upset forging, hot-upset part, forging casting, forged disc, perforated disc.
OEM Customized Metal Iron Casting Parts with Drawings or Samples
Item |
| Material | Technical Process |
| 1 | Ductile iron
castings | ASTM A 536-Gr.60-40-18,65-45-12,80-55-06,80-60-03;
DIN-GGG40,GGG50,GGG60,GGG70;
JIS-FCD40,FCD50,FCD60,FCD70;
BS-Gr370-17,Gr420-12,Gr500-7,Gr600-3,Gr700-2;
NF-FGS370-12,FGS400-12,FGS500-7,FGS600-3,FGS700-2; | Green-sand moulding
Resin-sand moulding
Lost foam cast
Shell-core cast
Electric-furnace smelting |
| 2 | Grey iron
castings | ASTM A48-No.20,25,30,35,40,45,50;
ASTM A126-Class A, Class B, Class C;
DIN-GG10,GG15,GG20,GG25,GG30,GG35;
JIS-FC10,FC15,FC20,FC25,FC30,FC35;
BS-Grade 150,180,220,260,300,350;
NF-FGL150,FGL200,FGL250,FGL300,FGL350; | Green-sand moulding
Resin-sand moulding
Lost foam cast
Shell-core cast
Electric-furnace smelting |
| 3 | Carbon steel
castings | ASTM A216-Gr. WCB, Gr. WCA, Gr. WCC;
ASTM-415-205, 450-240, 485-275, 80-40;
DIN- GS-C25(1.0619), GS-38(1.0416),
GS-45(1.0446), GS-52(1.0552), GS-60(1.0558);
JIS-SC410, SC450, SC480, SCC5;
BS-A1, A2, A5;
NF-GE230, GE280, GE320, GE370 | Soluble glass sand moulding
Resin-sand moulding
Lost wax casting
(Investment casting)
Lost foam cast
Shell-core cast
Electric-furnace smelting |
| 4 | Stainless steel
castings | ASTM-CF-8M, CF-8, CA-15, CA-40, 316, 304;
DIN-G-X6CrNi18 9(1.4308), G-X7Cr13(1.4001)
G-X20Cr14(1.4027), 1.4408;
JIS-SCS13, SCS 1, SCS 2, SCS 14A;
BS-304C15, 410C21, 420C29, 316, 304;
NF-Z6CND18.12M, Z6CN18.10M, Z12C13M, Z20C13M | Soluble glass sand moulding
Resin-sand moulding
Lost wax casting
(Investment casting)
Electric-furnace smelting |
| 5 | Alloy steel
castings | DIN-GS-40Mn5(1.1168), GS-20Mn5(1.1120);
GS-37MnSi5(1.5122), GS-34CrMo4(1.7220);
JIS-SCMn3, SCW480, SCSiMn2, SCCrM3, SCMnCR3;
ASTM-LCC
UNS-J02505, J13048
NF-G20M6, G35CrMo4 | Soluble glass sand moulding
Resin-sand moulding
Lost wax casting
(Investment casting)
Electric-furnace smelting |
OEM Grey Iron Sand Casting Flywheel/Diesel Engine Flywheel
Type: | Flywheel | Truck Model: | Beiben, oton, Howo, Shacman, etc. | Size: | Standard |
| OEM No.: | 188-1005361 | Material: | stainless steel | Place of Origin: | Shandong, China (Mainland) |
| Brand Name: | Yuchai | Model Number: | 188-1005361 | Product: | Yuchai Engine Flywheel 188-1005361 |
| Key Word: | Flywheel | Authorized Store: | Yes | Color: | Gray |
| Stock: | in-stock products available, for quick delivery | Sample Order: | Acceptable | Manufacturer/Factory: | We have original parts and also accept customizing. |
OEM Grey Iron Sand Casting Flywheel/Diesel Engine Flywheel
Q: Why choose Shengao product?
A: We shengao have our own plant-- Weifang Shengao machinery Co.,Ltd, therefore, we can surely promise the quality of every product and provide you comparable price.
Q: Do you provide OEM Service?
A: Yes, we provide OEM Service.
Q: Do you provide customized flywheel?
A: Yes. Customers give us drawings and specifications, and we will manufact accordingly.
Q: What is your payment term?
A: We provide kinds of payment terms such as L/C, T/T, Paypal, Escrow, etc.
If there's anything I can help, please feel free to contact with me.
WeiFang Shengao Machinery Co., Ltd is located in WeiFang the famous city in China and the world center of kites. It is 140 kilometers far away from Qingdao port, the transporation is very convenient. Our company use the location advantages of ShanDong province to integrate resources so that we can processing according to the drawings of customers. We mainly undertake the casting parts, machined parts and other products. Our Import and Export Department have many years experiences of foreign trade, products are mainly exported to the United States, Denmark, Italy, Russia, Australia etc.
Over the years, company adhere to the guideline for management of "Quality first, Reputation first, Delivery just-in-time, Price best". We will try our best to improve the technical level and perfect the enterprise management. Our company will depend on superior quality of products and sincere service to cooperate with dometic and overseas, new and old customers and establish eternal friendship to create a bright future.
