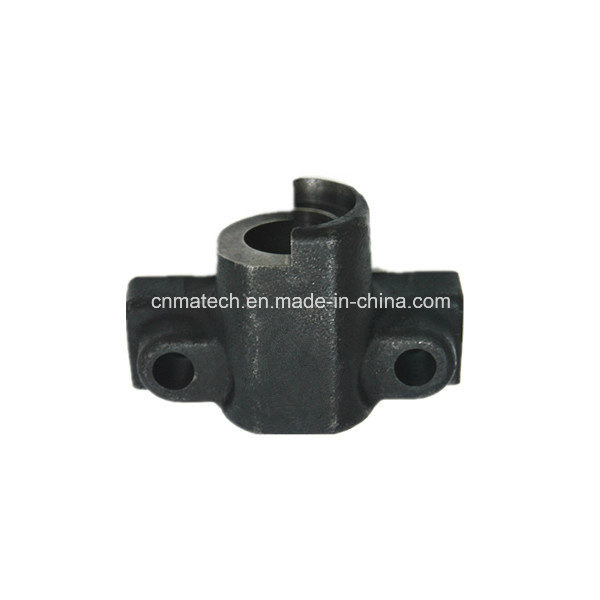

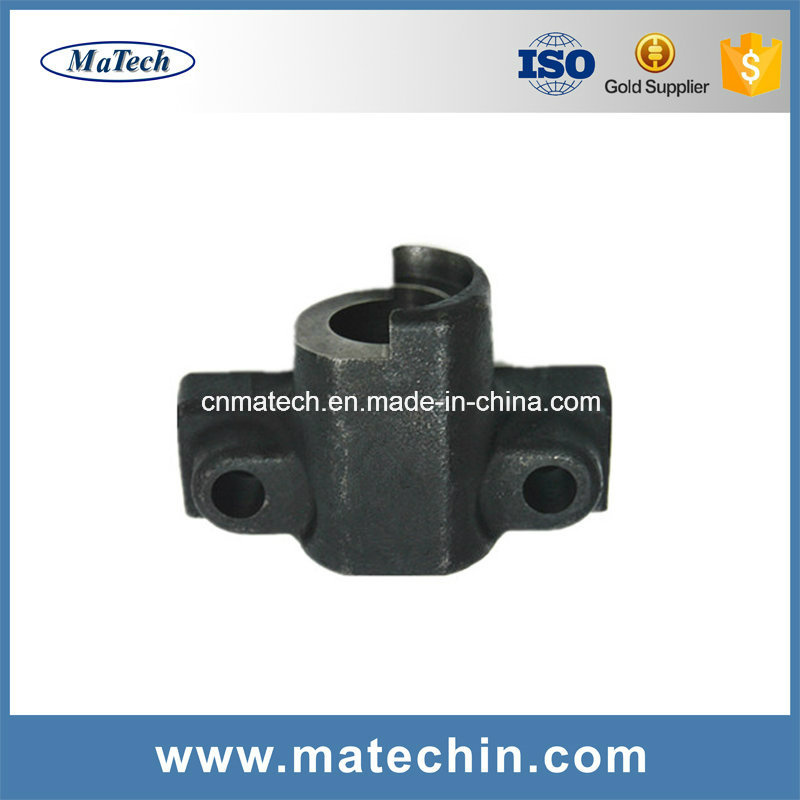

OEM High Precision Ductile Iron Sand Casting From Chinese Foundry

OEM High Precision Ductile Iron Sand Casting From Chinese Foundry
Price: US $ 0.2-15/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: L/C,T/T
Prod Model: IC16030236
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Material: Ggg60, ASTM A536 80-55-06
Blank Process: Sand Casting , Cast Iron
Casting Tolerance: CT9-11 for Iron Casting
Machining Process: CNC Machining , Drilling , Milling, Boring, Tappin
Machining Tolearnce: From 0.005mm-0.01mm-0.1mm
Machined Surface Quality: Ra 0.8-Ra3.2, According to Customer Requirement
Surface Finish Treatment: Dacromat Coating, Finish Painting
Package For Iron Sand Casting: Multiplayer Wood Box with Big Plastic Bag Inside
Lead Time: 45 Days
Service For Iron Sand Casting: OEM, ODM
Type: Chemical Hardening Sand
Surface Treatment: Dacromat Coating, Finish Painting
Surface Roughness: Ra 0.8-Ra3.2

Product Description

OEM High Precision Ductile Iron Sand Casting From Chinese Foundry

Item Name

OEM High Precision Ductile Iron Sand Casting From Chinese Foundry

 General Products

 Application/Service Area

Metal Parts Solution for Vehicle, Agriculture machine, Construction Machine, transportation equipment, Valve and Pump system, Agriculture machine metal Parts, engine bracket, truck chassis bracket, gear box , gear housing , gear cover, shaft, spline shaft , pulley, flange, connection pipe, pipe, hydraulic valve , valve housing ,Fitting , flange, wheel, fly wheel, oil pump housing, starter housing, coolant pump housing, transmission shaft , transmission gear, sprocket, chains etc.

 Main blank Process for Casting

Sand Casting , Resin Sand Casting, Green Sand Casting, Shell Molding, Automatic Molding, Lost Wax Casting, Lost Foam Molding Casting etc.



 Blanks Tolerance -Casting  Tolerance

CT9-10 for  Machine Molding Process,

CT8-9 for Shell Molding and Lost Foam Molding Casting Process

CT10-11 for Manual Molding Sand  casting Process

 Applicable Material

See Table Below (Ductile Iron Casting, Grey Iron Casting)





OR According to customer requirement



 Casting Blank Size  /Dimensions

 2 mm-2000mm / 0.08inch-79inch  for casting iron, according to customer requirement

 Casting Blank Weight

Range from 0.01kg-1000kg for casting iron

 Applicable Machining Process

CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ Broaching/Reaming /Grinding/Honing and  etc.



 Machining Tolerance

From 0.005mm-0.01mm-0.1mm

 Machined Surface Quality

Ra 0.8-Ra3.2, according to customer requirement

 Applicable Heat Treatment

Normalization , annealing, quenching and tempering, Case Hardening, Nitriding, Carbon Nitriding, Induction Quenching

 Applicable Finish Surface  Treatment

Shot/sand blast, polishing, Surface passivation, Primer Painting , Powder coating, ED- Coating, Chromate Plating, zinc-plate, Dacromat coating, Finish Painting etc.

 MOQ

For cast iron: 100pcs

For Machining: 50pcs

 Lead Time

45days from the receipt date of deposit for iron sand casting



Ductile Iron Casting Material Comparison Table:



Cast iron with nomular graphite

DIN EN 1563

Germany

DIN 1693

France

NF

Great Britain

BS

Netherlands

NEN

Sweden

MNC

USA

ASTM A536

EN-GJS-350-22-LT

GGG-35.3

FGS 370-17

370/17

GN 38

0717-15

----

EN-GJS-400-18-LT

GGG-40.3

    ----

----

----

----

60-40-18

EN-GJS-400-15

GGG-40

FGS-400-12

420/12

GN 42

0717-02

60-40-18

EN-GJS-400-10

----

----

420/12

----

----

65-45-12

EN-GJS-500-7

GGG-50

FGS-500-7

500/7

GN 50

0727-02

65-45-12/

80-55-06

EN-GJS-600-3

GGG-60

FGS-600-3

600/3

GN 60

0732-03

80-55-06

EN-GJS-700-2

GGG-70

FGS-700-2

700/2

GN 70

0737-01

100-70-03

EN-GJS-800-2

GGG-80

FGS-800-2

800/2





120-90-02

EN-GJS-1000-5 (DIN EN 1564)

GGG-100B/A

----

----

----

----

850-550-10

EN-GJS-AX NiSiCr35 5 2

GGG-

NiSiCr 35 5 2

FGS-

Ni35Si5Cr2

S5S

----

----

Type D-5S



Grey Iron Casting Material Comparison Table:



Cast iron with lamellar graphite

DIN EN 1561

Germany

DIN 1691

France

NF

Great Britain

BS

Netherlands

NEN

Sweden

MNC

USA

ASTM A48

EN-GJL-150

GG-15

Ft 15 D

Grade 150

GG 15

01 15-00

20 B / 25 B

EN-GJL-200

GG-20

Ft 20 D

Grade 180/220

GG 20

01 20-00

25 B / 30 B

EN-GJL-250

GG-25

Ft 25 D

Grade 220/260

GG 25

01 25-00

35 B / 40 B

EN-GJL-300

GG 30

Ft 30 D

Grade 300

GG 30

01 30-00

40B / 45 B





FAQ:

1. Are you a manufacturer or a trading company?
We are a professional manufacturer with over 15 years' export experience for designing and producing vehicle machinery parts.

2. How can I get some samples?
If you need, we are glad to offer you samples for free, but the new clients are expected to pay the courier cost, and the charge will be deducted from the payment for formal order.

3. Can you make casting according to our drawing?
Yes, we can make casting according to your drawing, 2D drawing, or 3D cad model. If the 3D cad model can be supplied, the development of the tooling can be more efficient. But without 3D, based on 2D drawing we can still make the samples properly approved.

4. Can you make casting based on our samples?
Yes, we can make measurement based on your samples to make drawings for tooling making.

5. What's your quality control device in house?
We have spectrometer in house to monitor the chemical property, tensile test machine to control the mechanical property and UT Sonic as NDT checking method to control the casting detect under the surface of casting.

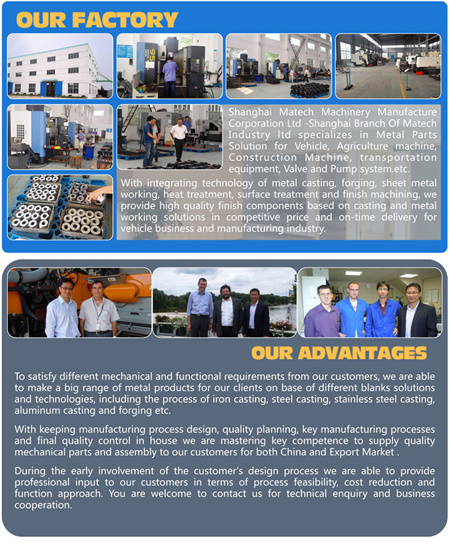

Shanghai Matech Machinery Manufacture Corporation, branch of Matech Industry, provide high quality sanitary valve, ball valve, gate valve for food, wine, chemistry and oil industry. As a 15 years manufacture in foundry and machining business areas Matech also produce iron casting, steel casting, aluminum casting, stainless steel casting and forging parts for vehicle and agriculture machine, pump and valve, transportation system and other industrial customers all over the world.

We are focus on metallurgical technology, foundry engineering, manufacturing and assembly test to fulfill customers' high requirements and secure high reliable quality for each delivery. As a successful supplier in supplying products to both European and North American market and quality system certified manufacture we prize the honor we have gained from the customers and market on quality, delivery, service and cost control. Matech Team is always ready to listen to the customer's voice and build value to our customer's application and business. We provide early involvement on design support and review input eg. Manufacturing feasibility analysis for the specified project of our customers when this is needed by our cutomers.

Matech team members have more than twenty years experience on Valve making, foundry, mechanical engineering, manufacturing and quality assurance. MATECH promise and secure the quality for all the products delivered.

You are welcome to enquire and order products from Matech Industry, including Valve and Pump, mechanical parts made by iron casting, steel casting, stainless steel casting, aluminum casting, forging and fabrication. We produce products according to your special requirements and the standards of European or American Countries.
