OEM Lost Foam Casting with Machining for Wear Resistant Casting

Name: OEM Lost Foam Casting with Machining for Wear Resistant Casting
Brand: china-castingforging.com
SKU: 702822832
Availability: InStock
Rating: 4.4 (132 reviews)

Price:	US $ 2-20/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Qingdao Csrex Heavy Industry Co., Ltd.

Showroom Product Company Profile

Prod Model:	wear castings
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Weight:	1-1000kgs
Design:	OEM
Drawing:	2D 3D
Casting Method:	Sand Casting
Casting Form Usage Count:	Permanent
Casting Form Material:	Grey,Ductile Iron ,Steel, Alloy Steel ,Aluminium
Casting Metal:	Iron ,Steel , Alloy Steel ,Aluminium

Product Description

Wear resistant ,heat resistant castings according to Customer`s requirments

We can offer you investment casting parts, railway casting parts, railway parts, excavator machinery parts, mining machinery parts, engineering machinery, agricultural machinery parts, sand casting, bucket tooth, auto parts, stamping & forging, and valve parts. We are capability in manufacture non-standard metal machining.

Cr Ni Hard field
Ni-Hard1 Ni-Hard2 Ni-Hard3 Ni-Hard4
HRC>52.
International Standard GB/T 8263-1999,
AS 2027/Ni-Cr1-550,
AS 2027/Ni-Cr2-500,
AS 2027/Ni-Cr4-500,
AS 2027/Ni-Cr4-600,
AS 2027/Ni-Cr4-630,
ASTM A 532 1-A, B, C, D,
ASTM A 532 2-A, B, C, D, E,
ASTM A 532 3-A.
ZG30CrMnSiMo ZG30CrMn2Si ZG30CrNiMo
Cr12~Cr26 KmTBNi4Cr2-DT KmTBNi4Cr2-GT KmTBCr9Ni5 KmTBCr2 KmTBCr8

KmTBCr12 KmTBCr15Mo KmTBCr20Mo KmTBCr26
Ni-Cr-HC Ni-Cr-LC Ni-Cr-GB Ni-HiCr 12%Cr 15%Cr-Mo 25%Cr-Mo 25%Cr G52

LIST OF PRODUCTS WE ARE MANUFACTURING AND INDUSTRIES SERVED

Electrical Sector
SwitchgearHousing
Flanges
Oil Monitor Block
Bell Crank lever
Bracket.
Other parts in SG Iron & Cast Iron
Machine manufacturing Industries

Machine bed, Tables
Vacuum Pump body. Heads, Impellor & Cone
Saddles, carriges, column, Impellor, Keepers Plate
Gear Boxes

Pumps manufacturer

Pump casing
Pump body
Impeller

Thermal Power Plant

Ball Mill Liner
Bull Ring Segments
Throat Ring segments
Coal crusher Ring
Grinding Ring segments
Crusher Parts
Discharge & Suction Liner
Parts in Ni hard/Hi Chrome castings

Cement Plant

Mill Liners
Impact Hammer
Nozzle Ring
Clinker Breaker Hampers
Shell Liners & Diaphragm plate
Parts in Ni hard/ Hi-chrome castings

Mining Industries

Blow bars
Impact Bars
Liners
Bends and Elbows
Parts in Ni hard/ Hi-chrome castings

Paper & Pulp Industries

Liners
Pulp refiner segments in Ni- Hard & Hi-Chrome castings

Infrastructure

Impact Plate
Blow Bar
Wear Plate
Parts in Ni hard/ Hi-chrome castings

Markets Served -

Heat Treating
Airless Shotblast Cleaning
Power Generation
Ash Handling
Mining
Road Construction
Crushing
Mixing
Fluid Handling
Food Processing
Petro-Chemical
Many Others

Crusher Parts specification
name	model	weight(kg)	number of teeth(pcs)	photo number	size(MM)

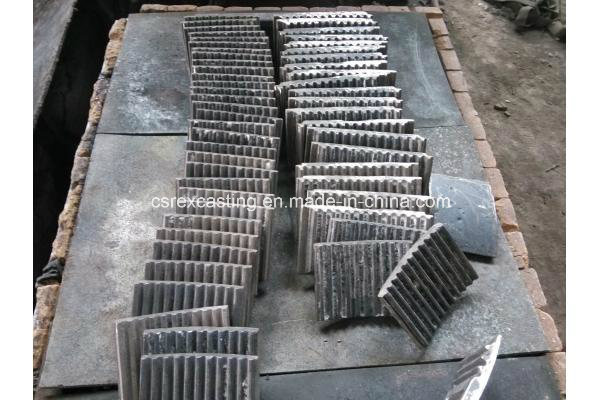

750*1060 Jaw Crusher	fixed Plate	1250	8	K3206-3b	16801040145
	movable Plate	1420	7	K3206-20b	18901040145
	side plate up	230*2		K3107-5
	side plate dowm	154*2		K3107-3
600*900 Jaw Crusher	fixed Plate	735	9	K3126-01-06D
	movable Plate	745	10	K3126-02-20D
	side plate right and left	235*2
	side plate up	135
	side plate dowm	86
500*750 Jaw Crusher	fixed Plate	490	9	K3204-1D	1170750/820110
	movable Plate	520	8	K3204-2D	1330750130
	side plate right and left	125		K3201-42
350*750 Jaw Crusher	fixed Plate	280	16	K31X05-
	movable Plate	335	15	K31X05-
	side plate right and left	65		K3105-7 8
150*750 Jaw Crusher	fixed Plate	100	25	K31X02
	movable Plate	110	26	K31X02
	side plate right and left	20
300*1300 Jaw Crusher	fixed Plate	445	33	K31X10-2	130580090
	movable Plate	455	34	K31X10-4	130086090
	side plate right and left	70*2
400*600 Jaw Crusher	fixed Plate	215	12	K3103-2
	movable Plate	218	13	K3103-3
	side plate right and left	80*2		K3103-11 13
150*250 Jaw Crusher	fixed Plate	22	8	K3101-2
	movable Plate	24	9	K3101-3
	side plate right and left	10
250*1200 Jaw Crusher	fixed Plate	385	30	K31X06-3
	movable Plate	400	31	K31X06-2
	side plate right and left	62		K31X06-10 11
250*1000 Jaw Crusher	fixed Plate	310	25	K31X04-4
	movable Plate	315	26	K31X04-3
	side plate right and left	62*2
250*750 Jaw Crusher	fixed Plate	205	19	K31X08-2
	movable Plate	216	20	K31X08-1
	side plate right and left	62		K31X08-7 8
250*500 Jaw Crusher	fixed Plate	110	13	K3128-5
	movable Plate	120	14	K3128-23
	side plate right and left	30
250*400 Jaw Crusher	fixed Plate	90	11	K3124-001-5	635400/46070
	movable Plate	110	12	K3124-002-13	72540090
	side plate right and left	38*2
	fixed Plate		14		635400/46070
	movable Plate		15		72540090
1315Impact Crusher	impact liner	38	40	K3611.1-1
1214Impact Crusher	impact liner	28		K3602
	liner01-11	22
	liner-13	28
	blow bar length1050	170		K3603.04-13
	blow bar length1610	270		K3602.04-14
900*1200 Jaw Crusher	fixed Plate	1962		K3105.1
900*1200 Jaw Crusher	movable Plate	1840		K3105.2
900*1200 Jaw Crusher	fixed1	675*2			1250845145
	fixed2	430			1250435145
	movable1	650*2			1180860145
	movable2	400			1180430145
	side plate up	230*2			1260900/59035
	side plate dowm	95*2			950582/23635
press block (2pcs/set)	250*1200	22/set
	400*600	38/set
	250*1000	20/set
	600*900	36/set

4. More crusher spare parts:

4.1Jaw crusher parts:
Jaw plate(jaw liner), toggle plate, up guard plate, down guard plate, set adjustment, tension rod, toggle gasket, spring, tension rod, eccentric shaft, end cover, block, moving jaw, frame, spring, bolt and nuts, washer.

4.2 Impact crusher parts:
Blow bar(flat hammer), adjustment bar, impact plate, liner plate, frame(impact rack), cover, , bolts, nuts, washer, etc

4.3 Hammer crusher parts
Hammer head, liner plate, bolt, nuts, washer

4.4 Cone crusher parts:

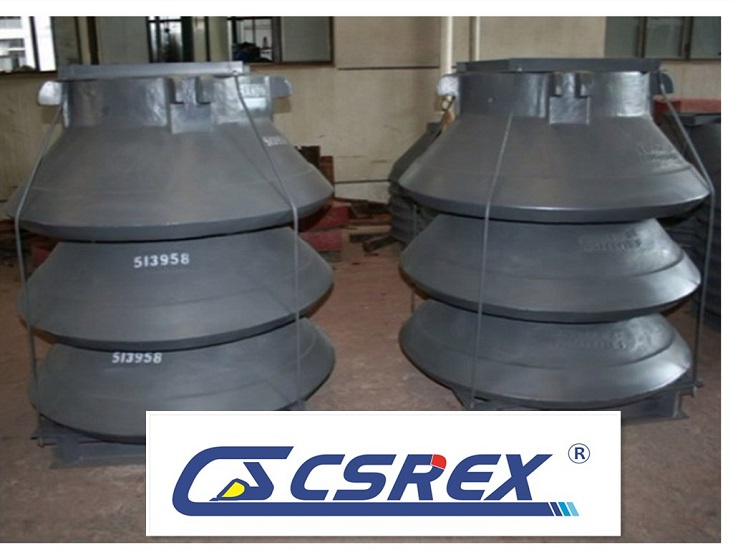

Concave, mantle, eccentric shaft, copper bush, bolts, nuts, washer, etc.

4.5 vibrating screen parts
Screen mesh, roller. Bolts, nuts, washer

We specialized in supply various kinds of wear parts for mining equipment, if you have any request, please feel free to send to me.

Csrex is a group enterprice, has one steel foundry, one iron foundry and one forging factory. She is your reliable source for Ductile iron, Alloy iron, Gray iron, and Heat-resistant steel, Alloy steel and other metal products. The company's policy is to produce castings/forgings to meet your individual requirements, as well as monitoring each stage of production to guarantee high quality. We pour to different international standards. We can offer material analysis, heat treatment, non-destructive testing, proof or full machining. Quality and Service is our emphasis!

Castings / forgings are from 0.5kg to 300 Ton.

Our monthly capacity is over 800 tons, with total occupied land size as 8000m3. Its products cover different industries like automobile, construction, machinery, ship and etc. Over 90% of its products are far sold to dozens of countries and regions such as British, German, France, US, Japan, south Korean, Australia.

Main products:

1. Large wind turbine parts such as: Rotor hub, Base frame, Motor housing, Nacelle, Torque support, Planet carrier, Bearing housing, Gear housing, Sealing cover and other iron castings & parts.

2. All kinds of grey cast iron, ductile cast iron, carbon steel and low alloy steel, heat-resistant and wear-resistant and corrosive-resistant special cast iron and steel castings, castings & parts of pumps, valves etc

Essential Inspection facilities or methods:

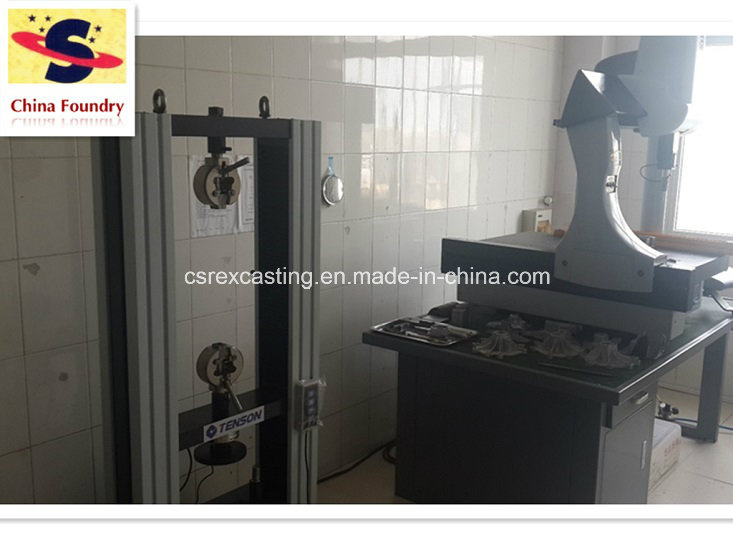

Photovoltaic direct-reading spectrometer, Carbon & Silicon thermal analyzer, Chemical analysis, Metallographic Analysis, Mechanical properties testing, Casting Dimension inspection and 3D(three-dimensional) measuring instrument for the part's dimension check, Moulding sand testing, Magnetic particle Testing(MT), Ultrasonic Testing (UT), Dye penetration testing, Hydrostatic Testing, etc.

Our factory is only 40 Kilometers from Qingdao seaport and only 40minutes from Qingdao airport by car, wish your visiting to our factory.
