Size:
1/4"-4"
Casting Dimension:
According to Drawing
Mechanical Capacity:
Stainless Steel
Type:
Floating,Fixed,Flexible,Oil Seal,etc.
Driving Mode:
Manual,Hydraulic,Electrical,etc.
Channel:
Straight,Tee,Angle Type
Function:
Bypass-Valve
Connection Form:
Thread,Flange,Welding
Structure:
Floating,Fixed,Flexible,Oil Seal,etc.
Pressure:
1000wog/1000psi, 1.6-6.4MPa
Surface Preparation:
Spray Coating
Material:
Stainless Steel
Tolerance Grade:
4-8
Product Description

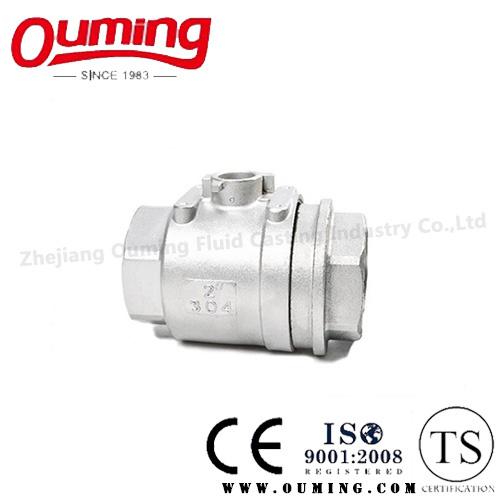

OEM/ODM Valve Casting
Specification
As per your PDF, CAD, Solid work, Proe drawing or samples
Casting Process
Precision casting, Investment casting, Lost wax casting,
Casting Material
304/316 Stainless steel
Processing Methods
Die making & wax pattern, Assembly of wax pattern, Dipping the assembly into Silica Sol slurry, Sand-spraying & shell built, Dewax & firing, Pouring the metal, Shell & part removal, Finishing & secondary operations.
Casting Weight
0.05kg-200kg
Casting Standard
ISO, ASTM, AISI, DIN, NF, JIS, BS, GB,etc.
Casting Tolerance
CT4-CT6
Surface Roughness
Ra 0.8um-12.5um
Surface Preparation
Polishing, Sand Blasting, Passivating, Plating, Galvanized, Spray-Paint, etc.
Heat Treatment
Quenching, Normalizing, Tempering, Annealing, etc.
Calipers, Height Gauge, Micrometer Calipers, Inside Caliper Gauge, Angle and R Gauge, Coordinate Measuring Machine (CMM).
1. Careful revision on the drawings, supporting by 3-D mould's software of PRO/E, solidwords and Auto CAD, building the 3-D moulds to imitate the real parts according to the customers' drawing
2. Full dimensions inspection and note in the drawings for the first artile submittion
3. Further CNC machining centers' machining work, CMM inspection when production
4. Mold preparation - The walls of a cylindrical mold are first coated with a refractory ceramic coating, which involves a few steps (application, rotation, drying, and baking). Once prepared and secured, the mold is rotated about its axis at high speeds (300-3000 RPM), typically around 1000 RPM.
5. Pouring - Molten metal is poured directly into the rotating mold, without the use of runners or a gating system. The centrifugal force drives the material towards the mold walls as the mold fills.
6. Cooling - With all of the molten metal in the mold, the mold remains spinning as the metal cools. Cooling begins quickly at the mold walls and proceeds inwards.
7. Casting removal - After the casting has cooled and solidified, the rotation is stopped and the casting can be removed.
8. Finishing - While the centrifugal force drives the dense metal to the mold walls, any less dense impurities or bubbles flow to the inner surface of the casting. As a result, secondary processes such as machining, grinding, or sand-blasting, are required to clean and smooth the inner diameter of the part.
Packaging & Shipping: Packaging: Wooden Package Shipping: 30 working days after comfirm the order.
Company Information: Zhejiang Ouming Fluid Casting Industry Co.,Ltd was founded in 1983,the head office is located in valves and pumps capital-Wenzhou.It has more than 150 staffs and covers an area of 15000 square meters. We professionally manufacture valves, pipe fittings, castings and other fluid system equipments, including ball valves, gate valves, globe valves, check valves, diaphragm valves, Plug valves, sanitary butterfly valve, elbows, tees, union and other pipe fittings. All Products Strictly meet the GB, ANSI, JIS, DIN, BS, ISO ,etc.
We commit to provide supreme quality of products and 100% customer satisfaction service , based on the principle of honesty and trustworthiness, we focus on controlling quality ,improving management and contentiously developing new market and enlarging our product range. Welcome to contact and join us for the promising business.

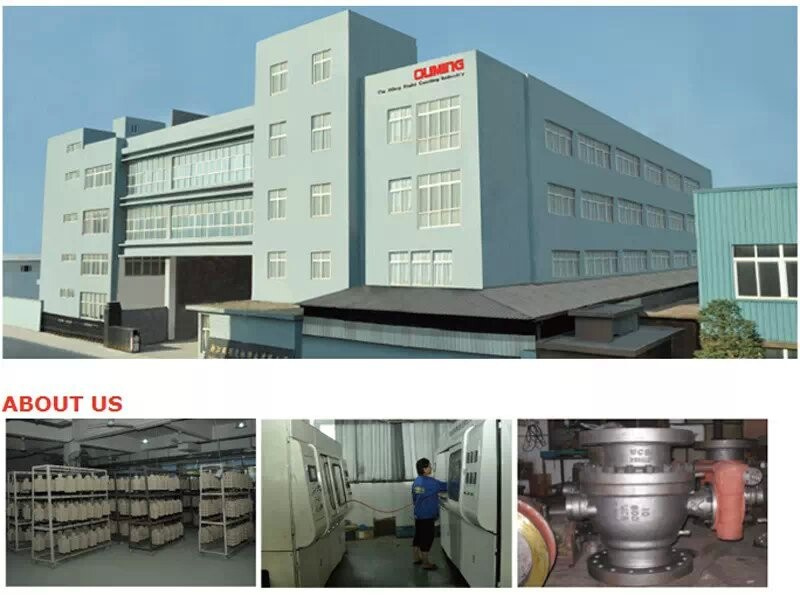

Zhejiang Ouming Fluid Casting Industry Co., Ltd was founded in 1983, the head office is located in valves and pumps capital-Wenzhou. It has more than 150 staffs and covers an area of 15000 square meters
We professionally manufacture valves, pipe fittings, castings and other fluid system equipments, including ball valves, gate valves, globe valves, check valves, diaphragm valves, Plug valves, sanitary butterfly valve, elbows, tees, union and other pipe fittings. All Products Strictly meet the GB, ANSI, JIS, DIN, BS, ISO, etc. They are widely used in Petrochemicals, Chemical, LNG& Cryogenics, Pulp & paper, Water and Wastewater, Mining, Refining, Marine, Electric power etc. Besides, they have been exported to Europe, North America, Middle East, Southeast Asia regions, etc.
We are a modern manufacturer in valve, pipe fitting and casting with the silica sol investment casting process. We own modern high-precision casting equipment and advanced machining equipment and testing equipment. Eg, CNC machining centers, CNC lathes, Spectrometer, Ultrasonic Tester, Magnetic Particle Testing, etc. These equipments ensure the product's good quality and we are approved by ISO9001, CE and TS, etc.
We commit to provide supreme quality of products and 100% customer satisfaction service, based on the principle of honesty and trustworthiness, we focus on controlling quality, improving management and contentiously developing new market and enlarging our product range. Welcome to contact and join us for the promising business.
