| Price: | US $ 6-8kg |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 50/Piece |
| Pay Type: | L/C,T/T,D/P,Paypal,Western Union |
| Prod Model: | flange |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: | 1/2"-48"(Dn15-Dn1200) |
| Standard Or Nonstandard: | Standard |
| Standard: | ANSI |
| Type: | Welding Flange |
| Material: | Stainless Steel |
| Manufacturing Way: | Forging |

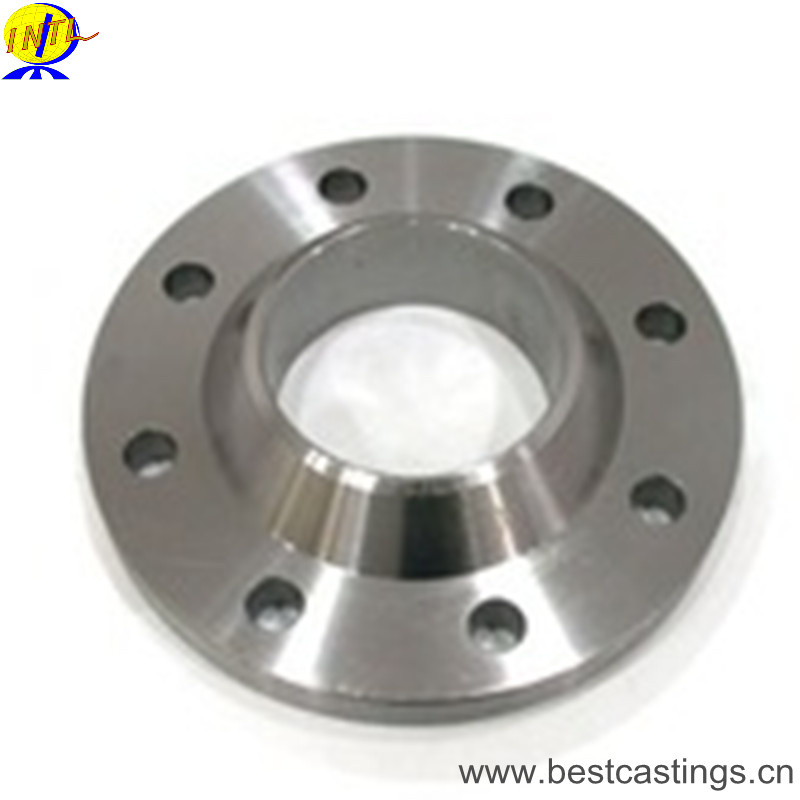

1.Name: | Stainless steel weld neck reducing flange standard |
2.Size: | 1/2"-48"(DN15-DN1200) |
3. Standard: | ASME B16.9,MSS SP-43,DIN2605,JIS B2313, GB/T12459,GB/T13401,SH3408. SH3409,HG/T21635,HG/T21631. |
4. Wall thickness | SCH5S-SCH160. |
5. Material: | stainless steel(1.4539,1.4401,1.4404), nickel copper, carbon steel, low alloy steel,alloy |

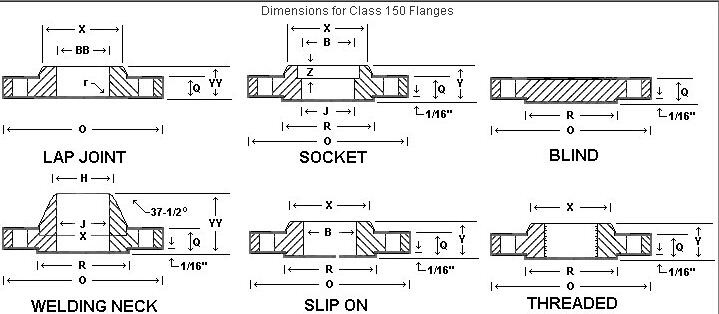

Nom. Pipe Size (inches) | O | Q | R | X | No. and** Dia. of Bolt Holes | Bolt Circle Dia | YY | H | J | Y | B | R | YY | BB | Z |
1/2 | 3.50 | .44 | 1.38 | 1.19 | 4-0.62 | 2.38 | 1.88 | .84 | .62 | .62 | .88 | .12 | .62 | .90 | .38 |
3/4 | 3.88 | .50 | 1.69 | 1.50 | 4-0.62 | 2.75 | 2.06 | 1.05 | .82 | .62 | 1.09 | .12 | .62 | 1.11 | .44 |
1 | 4.25 | .56 | 2.00 | 1.94 | 4-0.62 | 3.12 | 2.19 | 1.32 | 1.05 | .69 | 1.36 | .12 | .69 | 1.38 | .50 |
11/4 | 4.62 | .62 | 2.50 | 2.31 | 4-0.62 | 3.50 | 2.25 | 1.66 | 1.38 | .81 | 1.70 | .19 | .81 | 1.72 | .56 |
11/2 | 5.00 | .68 | 2.88 | 2.56 | 4-0.62 | 3.88 | 2.44 | 1.90 | 1.61 | .88 | 1.95 | .25 | .88 | 1.97 | .62 |
2 | 6.00 | .75 | 3.62 | 3.06 | 4-0.75 | 4.75 | 2.50 | 2.38 | 2.07 | 1.00 | 2.44 | .31 | 1.00 | 2.46 | .69 |
21/2 | 7.00 | .88 | 4.12 | 3.56 | 4-0.75 | 5.50 | 2.75 | 2.88 | 2.47 | 1.12 | 2.94 | .31 | 1.12 | 2.97 | .75 |
3 | 7.50 | .94 | 5.00 | 4.25 | 4-0.75 | 6.00 | 2.75 | 3.50 | 3.07 | 1.19 | 3.57 | .38 | 1.19 | 3.60 | .81 |
31/2 | 8.50 | .94 | 5.50 | 4.81 | 8-0.75 | 7.00 | 2.81 | 4.00 | 3.55 | 1.25 | 40.70 | .38 | 1.25 | 4.10 |
|
4 | 9.00 | .94 | 6.19 | 5.31 | 8-0.75 | 7.50 | 3.00 | 4.50 | 4.03 | 1.31 | 4.57 | .44 | 1.31 | 4.60 |
|
5 | 10.00 | .94 | 7.31 | 6.44 | 8-0.88 | 8.50 | 3.50 | 5.56 | 5.05 | 1.44 | 5.66 | .44 | 1.44 | 5.69 |
|
6 | 11.00 | 1.00 | 8.50 | 7.56 | 8-0.88 | 9.50 | 3.50 | 6.63 | 6.07 | 1.56 | 6.72 | .50 | 1.56 | 6.75 |
|
8 | 13.50 | 1.12 | 10.62 | 9.69 | 8-0.88 | 11.75 | 4.00 | 8.63 | 7.98 | 1.75 | 8.72 | .50 | 1.75 | 8.75 |
|
10 | 16.00 | 1.19 | 12.75 | 12.00 | 12-1.00 | 14.25 | 4.00 | 10.75 | 10.02 | 1.94 | 10.88 | .50 | 1.94 | 10.92 |
|
12 | 19.00 | 1.25 | 15.00 | 14.38 | 12-1.00 | 17.00 | 4.50 | 12.75 | 12.00 | 2.19 | 12.88 | .50 | 2.19 | 12.92 |
|
14 | 21.00 | 1.38 | 16.25 | 15.75 | 12-1.12 | 18.75 | 5.00 | 14.00 | To Be | 2.25 | 14.14 | .50 | 3.12 | 14.18 |
|
16 | 23.50 | 1.44 | 18.50 | 18.00 | 16-1.12 | 21.25 | 5.00 | 16.00 | 2.50 | 16.16 | .50 | 3.44 | 16.19 |
| |
18 | 25.00 | 1.56 | 21.00 | 19.88 | 16-1.25 | 22.75 | 5.50 | 18.00 | 2.69 | 18.18 | .50 | 3.81 | 18.20 |
| |
20 | 27.50 | 1.69 | 23.00 | 22.00 | 20-1.25 | 25.00 | 5.69 | 20.00 | 2.88 | 20.2 | .50 | 4.06 | 20.25 |
| |
24 | 32.00 | 1.88 | 27.25 | 26.12 | 20-1.38 | 29.50 | 6.00 | 24.00 | 3.25 | 24.25 | .50 | 4.38 | 24.25 |
equipments, such as resin sand , sand mould , hot core boxes , lost-wax , lost -foam and so
on .
Specially for hydrant bodies and valves' bodies, we have collected rich experience for these products in the past 16 year's actual production, Now we are proud of our products with good surface and high quality material. Whatever,we have been trying our best to provide our customers with better quality castings by improving production crafts and more careful quality control.
