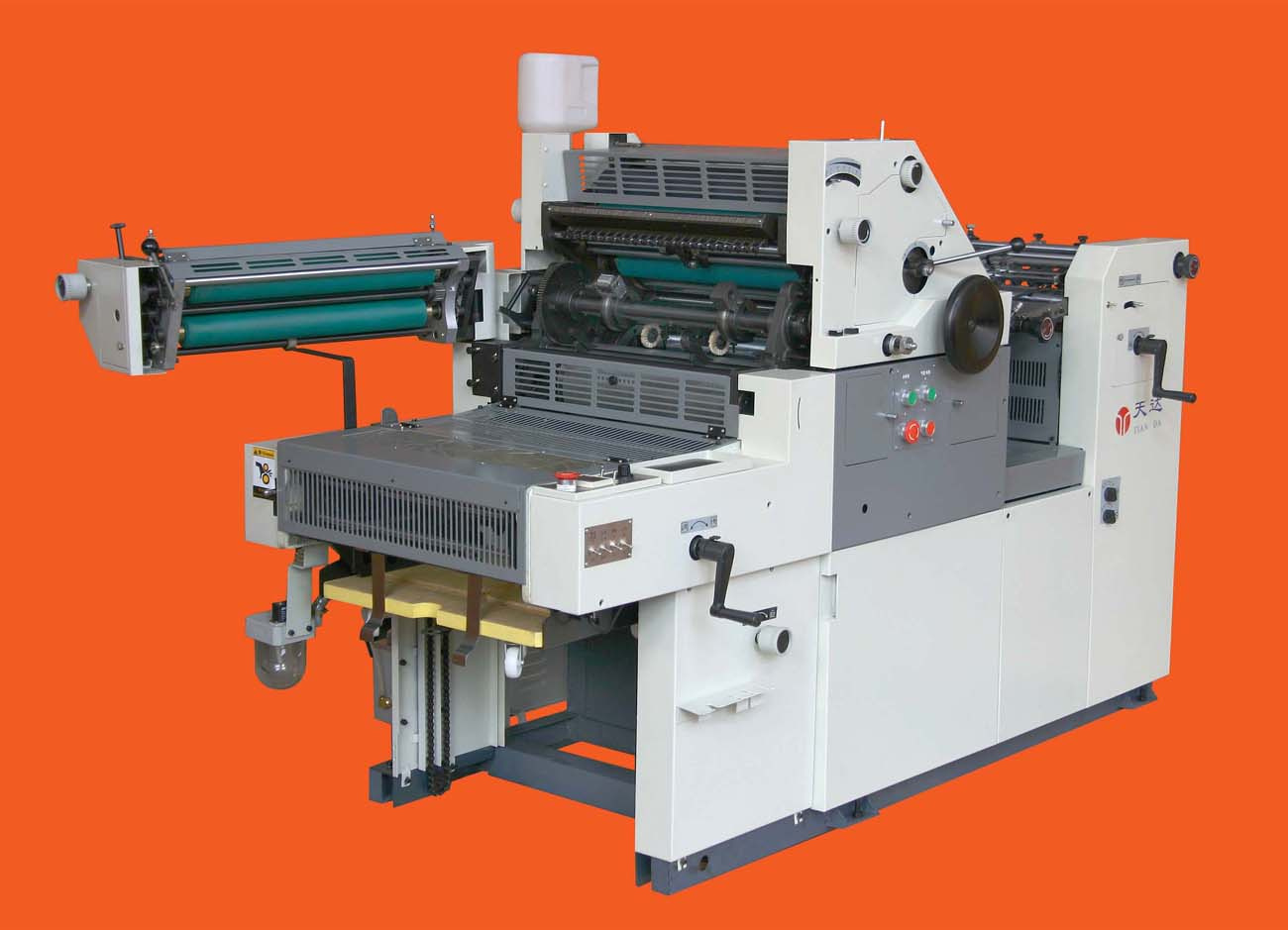

Offset Machine (JY47NP)

Offset Machine (JY47NP)
Price: US $ 4824.00/Set
Trade Terms: Qingdao Port
Min Order: 1
Prod Model: JY47NP
Markets: North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe

Product Description

1 Two ink one water
I nk color evenly, Netpoint clearer, .
2 Six open papers are appropriate for it.
3 It has the function of numbering.
4 Separate system between ink and water
Separating system between ink and water, adjustable volume of ink and water, making color printing uniform, point clear, full color solid.
5 Cross feeding paper
Cross feeding paper, no swing and wrinkle of paper.
6 Precise position
Precise position with front gauge and two-sides gyro-wheel pulling gauge. Overprint accurate.

7 Easy to operate
Three gears of water feeding, ink-feeding, and joint pressure are operated easily by one handle.
8 easy to adjust
Side guard fine-tuner, side pulling gauge fine-tuner, plate slope fine-tuner and top&bottom margin fine-tuner, make the adjustment process more convenient, rapider, and accurate.
9 Sensitive joint pressure
Sensitive joint pressure of printing cylinder is operated by elec-magnet controlled by photoelectric sensor which is more stable and reliable.
10 More suction nozzle
More sucks of pater are adapted for changing of paper size which can adjust suction mazzle without any tools.

11 checking the quantity of paper
Controller of feeding paper stops feeding of double pieces of paper.
12 Power controller of auto-sprayed powder.
Powder spraying keep pace with printing with electric automatic spray powder equipment, which can effectively prevent sheet adhering dirty.
13 Postive /negative inching
Postive /negative inching is convenience for assemble and disassemble of plate, cleaning rubber blanket and adjustment of machine which reduces the labor intensity and improves work efficiency.
Maxi paper(mm)470*365
Maxi printing area(mm)450*345
plate(mm)470*395*0.15
Rubber blanket(mm)466*415*1.95
Suitable paper(g/m2)28-250
Ink roll10 pcs (forme ink rolls 2)
Water roll4 pcs (forme water rolls 2)
Speed(pcs/h)0-9000pcs/h
Main motor power(KW)0.75
Air pump motor power(KW)0.55
Weight(KG)780
Power220V
Size(mm)2089*935*1340
Packing(mm)2100*1090*1500
Weifang Tianda Precise Machinery Co., Ltd. Specialize in light offset press, such as TD47 series, TD56 series, including single color press and two color press. They are widely used in institutions, schools, factories, commercial units, etc., also used for printing of pictures, newspaper, commercial forms, etc. They are sold well to the markets of home and overseas with good in quality and reasonable in price. Tianda company passed ISO9001: 2000 in 2004. Tianda's items were recommended "product quality excellent all over the country, satisfied service and good brand" by Promotion Center of Famous Brands of China Quality Long March Organization, also named as "selling well brand in Chinese market" by Commission of Chinese Famous Brands and Market Strategy Promotion. Our business principle is "Success is made by quality, future is created by trust. "

Welcome communication and cooperation from all over the world.
