| Prod Model: |
GH522 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Printing Speed: |
12000 |
| Printing Color: |
Double-Color Machine |
| Type: |
Web High Speed offset Press |

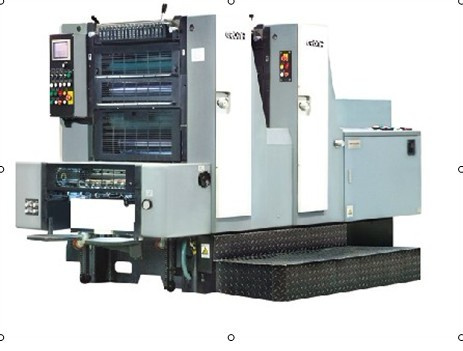

Product Description
1. Adopted machine-units arrangement, one double-diameter cylinder and two single-diameter cylinders fulfill the transition. Intelligentized and personalized touch screen control system.
2. Semi-automatic plate changer device.
3. Touch screen control system without stopping machine achieves exact axial and circle adjustments, it is ± 1mm for axial, ± 0.5mm for circle, step pitch is 0.01mm. Printing Precision, continuous and stable printing are all guaranteed.
4. Alcohol plate dampening system, the motor driven by separated dampening roller has speed reinforcing function, evenly distributed solution film reduces dpi augment, alcohol consistency auto-testing device is optional.
5. Pneumatic centralized control and transacting mechanism realize various functions like automatic inking, dampening, clutch pressure and plate changer. Greatly minimized machine size, reduced main motor power and medium transferring links, improved the executive speed of transacting mechanism and enhanced running reliability and stability.
6. Super strong casting iron board and unique design of machine base make its structure stable, durable and reliable. High-precision outboard, skew gear transmission and low noise ensure satisfied performance and extend service life.
7. Continuous suction for paper feeding and upper swing gyral paper delivery device.
8. Automatic lubricating system.
|
Specification |
Single-Sided |
|
Max. Printing Speed |
12000r/h |
|
Max. Sheet Size |
520x375mm |
|
Min, Sheet Size |
100x148mm |
|
Paper Thickness |
0.04-0.4mm |
|
Max, Printing Area |
510x360mm |
|
Plate Size |
510x410x0.15mm |
|
Feed Pile Height |
900mm |
|
Delivery Pile Height |
420mm |
|
Ink Rollers |
19pcs |
|
Dampening Rollers |
4pcs |
|
Plate Form Rollers |
5pcs(4 pcs of ink, 1 Pc of dampening) |
|
Plate Dampening |
Alcohol |
|
Power |
6.7Kw |
|
Net Weight |
4100kg |
|
Machine Dimension |
2690x1820x1720mm |
Hangzhou Aochi International Co., Ltd. is professional exporter and manufacturer of printing and packaging and plastic machines & materials in China, set by jointed together of more than fifteen manufacturers.
In order to provide all around products and better service to our increasing customers, we adopt latest information technology. Using carefully selected local or overseas raw materials & components, most of our machine already got CE approved. Our engineer team provides design realization service for your every requirement, and employ professional trained staff, so we have quick response to different customer' S enquiry everyday.
If you are looking for relative machines and materials from China, we sincerely hope we can be your best choice! Let' S work together to build a much brilliant future now!
