| Prod Model: |
YJ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Use: |
Sheet Metal Drawing, Bending, Blanking, Extrusion |
| Forging Forming Method: |
Mold Forging |
| Power Source: |
Hydraulic Pressure |
| Advantage: |
Use Widely |
Product Description

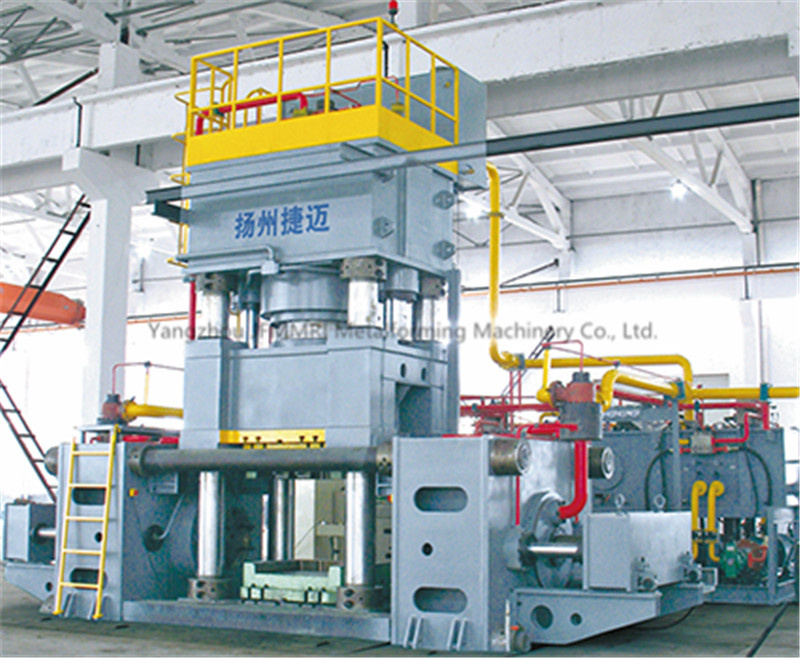

The hydraulic production line mainly be used for hot forging technology of oil drill tube, the press mainly contain: Band sawing machine,induction heating furnace,upset-extruding base shaped hydraulic press,Multi-ram forging hydraulic press,punching gross weight hydraulic press ect..The hydraulic press in the production line have independent developed pressure,position,time ect. Parameter digital display,digital control,fault check and monitor ect. function CNC control system, have high precision,high rigidity,high degree of automation,low noise,energy conservation and environmental protection,low use and maintain cost ect. characters. The oil drill rod subs produced by the production line can satisfy oil,natural gas well drilling need, have punching roughcast high precision,good toughness,less machining quantity and long using life ect. characters.
Can supply the user complete machine solution ways and technology support, such as auto loader and unloader,transportation way,mould and subsequent heat treatment ect..
| Series | Name | Unit | Numerical value |
| upset-extruding base shaped hydraulic press | Multi-ram forging hydraulic press | punching gross weight hydraulic press |
| 1 | Norminal force | KN | 10000 | 25000 | 2500 |
| 2 | Return force | KN | 800 | 1000 | 400 |
| 3 | Ejection force | KN | 1000 | -- | -- |
| 4 | Landscape orientation norminal force | KN | -- | 2×10000 | -- |
| 5 | Landscape orientation return force | KN | -- | 2×2000 | -- |
| 6 | Liquid working pressure | MPa | ≈25 |
| 7 | Max.delight height | mm | 1800 | 1500 | 1250 |
| 8 | Slide stroke | mm | 1000 | 650 | 800 |
| 9 | Landscape orientation head stroke | mm | -- | 2×750 | -- |
| 10 | Ejection cylinder stroke | mm | 500 | -- | -- |
| 11 | Landscape orientation open width | mm | -- | 2500 | -- |
| 12 | Landscape orientation cylinder middle distance work table height | mm | -- | 550 | -- |
| 13 | Slide speed | Quick down | mm/s | ≥250 | ≥250 | ≥100 |
| pressing | mm/s | 20 ~ 40 | 25 | 8 ~ 20 |
| return | mm/s | ≥200 | ≥200 | ≥120 |
| 14 | Landscape orientation head speed | work | mm/s | -- | ≥60 | -- |
| Opposite extrusion | mm/s | -- | ≥10 | -- |
| Slow return | mm/s | -- | 50 | -- |
| return | mm/s | -- | 200 | -- |
| 15 | Ejection cylinder speed | ejection | mm/s | 120 | -- | -- |
| return | mm/s | 150 | -- | -- |
| 16 | Table size | L-R | mm | 1250 | 1600 | 900 |
| F-B | mm | 1250 | 1200 | 900 |
| 17 | Work table height | mm | 250 | 250 | 250 |
| 18 | Motor power | KW | ≈ 220 | ≈ 1430 | ≈ 37 |

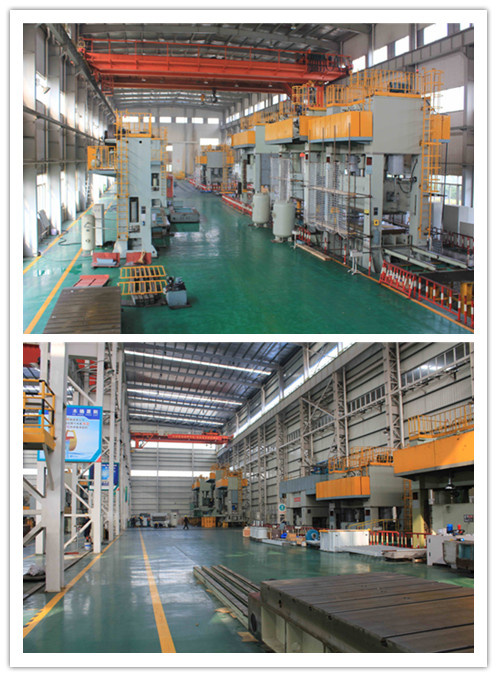

Workshop:

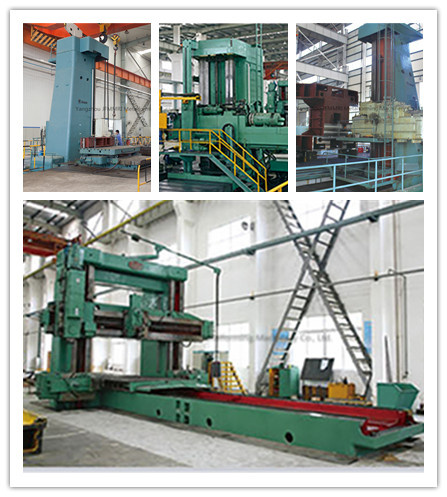

Processing equipment:

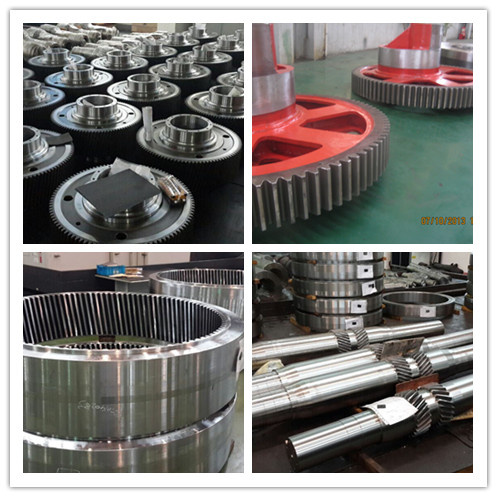

Main spare parts:
