Prod Model: |
PA-003 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Dn: |
4-50mm |
Working Temperature: |
-40°-+120° |
Workingpressure: |
10-24bar |
Material: |
PA |

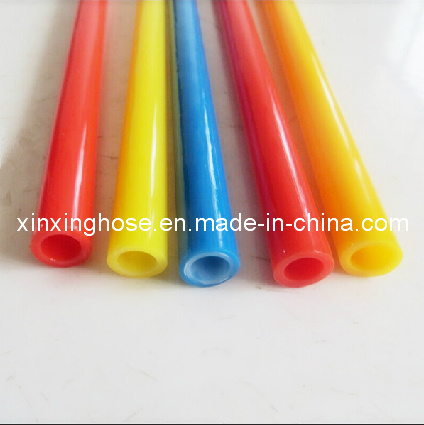

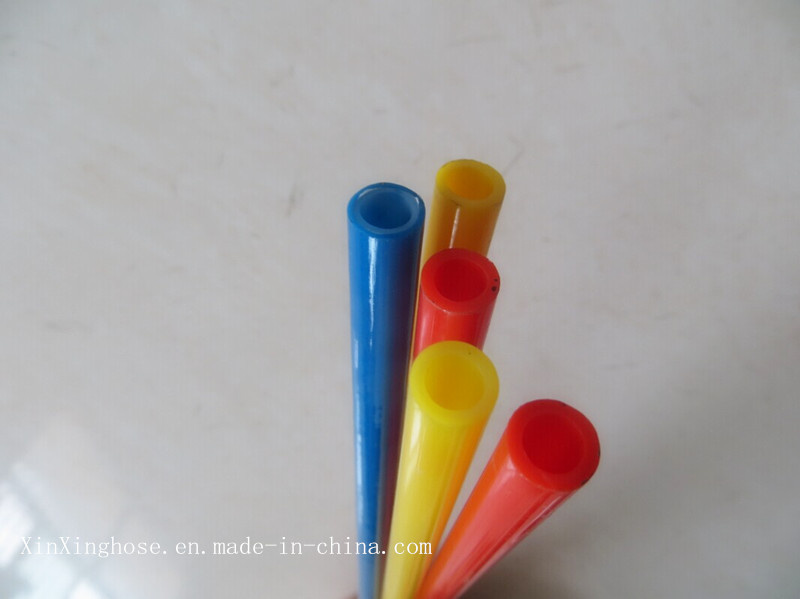

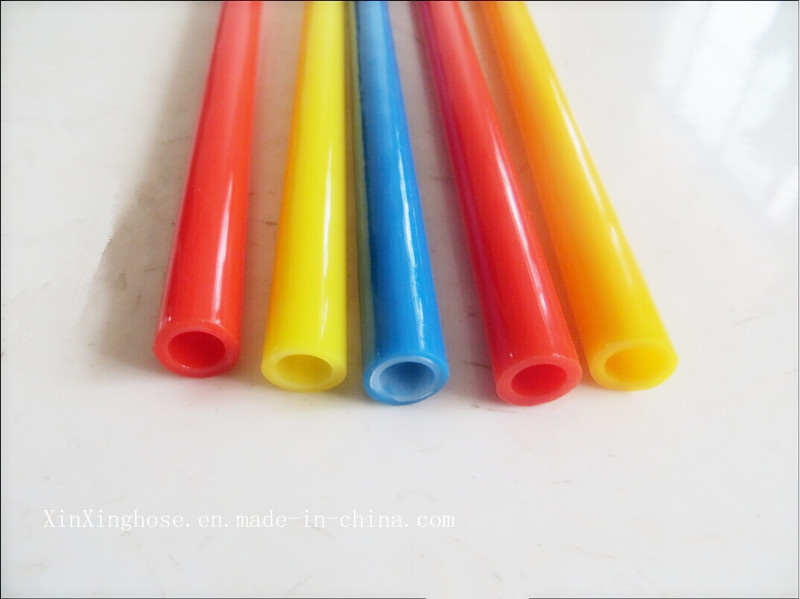

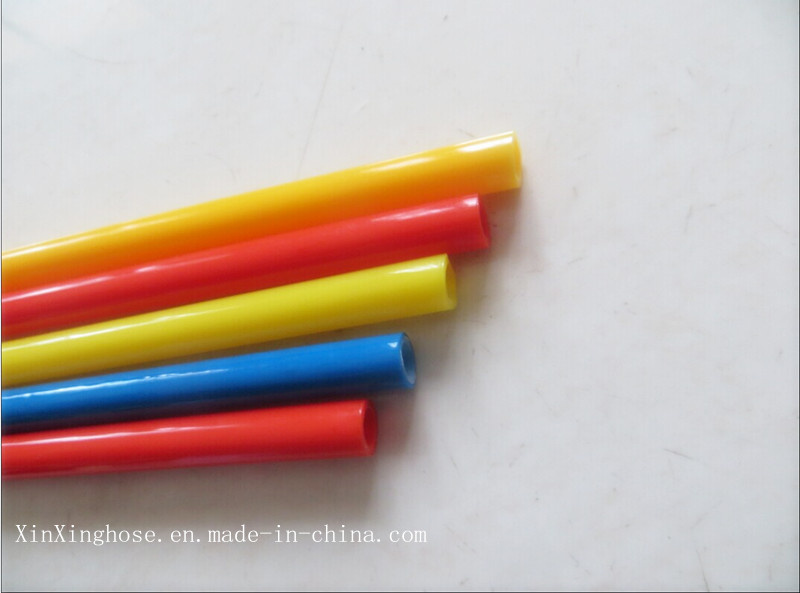

Product Description
Material:Nylon 6/Nylon 12/Nylon 11 Color:white /black/red/yellow/blue
Temperature Range:-40 to +120 Export Markets:Global
Product performance:Oil resistance, acid and alkali resistance, high pressure resistance
DN | Hose O. Dmm | WallThicknessmm | WorkingPressureMpa | Blasting Pressure Mpa | Tolerancemm |
Φ4 | 4 | 0.75 | 2.4 | 9.5 | ±0.1 |
Φ4 | 4 | 1 | 2.0 | 11.0 | ±0.1 |
Φ4.7 | 4.7 | 0.61 | 2.5 | 10.0 | ±0.1 |
Φ5 | 5 | 1 | 2.0 | 8.0 | ±0.1 |
Φ6 | 6 | 1.5 | 2.0 | 8.0 | ±0.1 |
Φ6 | 6 | 1.5 | 2.0 | 8.0 | ±0.1 |
Φ7 | 7 | 1 | 2.0 | 8.0 | ±0.1 |
Φ8 | 8 | 1 | 2.0 | 8.0 | ±0.1 |
Φ8 | 8 | 1.5 | 2.1 | 8.5 | ±0.15 |
Φ9 | 9 | 1.5 | 2.0 | 8.0 | ±0.15 |
Φ10 | 10 | 1 | 1.9 | 7.5 | ±0.15 |
Φ10 | 10 | 1.25 | 2.1 | 8.3 | ±0.15 |
Φ10 | 10 | 1.5 | 2.1 | 8.5 | ±0.15 |
Φ12 | 12 | 1.25 | 2.1 | 8.2 | ±0.15 |
Φ12 | 12 | 1.5 | 2.1 | 8.4 | ±0.15 |
Φ14 | 14 | 1 | 1.9 | 7.7 | ±0.15 |
Φ14 | 14 | 1.5 | 2.0 | 8.0 | ±0.15 |
Φ15 | 15 | 1 | 1.8 | 7.5 | ±0.15 |
Φ15 | 15 | 1.5 | 1.9 | 7.8 | ±0.15 |
Φ16 | 16 | 1.5 | 2.0 | 8.2 | ±0.15 |
Φ18 | 18 | 1 | 1.0 | 4.25 | ±0.15 |
Φ18 | 18 | 1.25 | 1.4 | 5.5 | ±0.15 |
Φ18 | 18 | 1.5 | 1.7 | 6.8 | ±0.15 |
Φ19 | 19 | 1.5 | 1.5 | 6.3 | ±0.15 |
Φ20 | 20 | 2 | 1.6 | 6.5 | ±0.15 |
Φ22 | 22 | 1.5 | 1.3 | 5.3 | ±0.15 |
Φ25 | 25 | 1.5 | 1.0 | 4.2 | ±0.15 |
Company Information
Ningjin Xinxing hose Co., Ltd. is the production of polyurethane series, nylon series hose hose is mainly a business, injection molding, casting products as a supplement.The company advanced equipment, exquisite technology, complete testing equipment, have the ability to develop new products.The company to the quality of culture of excellence, and strive to build first-class brand, with "honest and trustworthy, benefit sharing" business philosophy, and establish a good corporate image
Our Advantage
(1)We can do the designs according to customers' requirements.
(2)We can open customers' own mold as per their requirements.
(3)We can offer you a good after-sell service.
(4)Prompt delivery.
Quality Testing & Packing
(1)Quality test: 100% pressure test and leakage test before packing.
(2) packing details: standard export packing or according to customer's special requirements.
We can customize non-standard hose based on the customer's specific needs.
Welcome to come to consult the discussion!
Ningjin Xinxing hose Co., Ltd. is a new enterprise development of high performance resin hose
The products have been widely used in petroleum, chemical industry, engineering machinery manufacturing, coal mining, shipbuilding, aviation, automotive, medical equipment and other industries, is the hydraulic and mechanical equipment ideal pneumatic hose, is the most ideal equipment pressure hose, liquid, and powder delivery, high pressure spraying, high pressure cleaning, sand blasting and other fields.
The company has strong technical force and professional design production capacity, have established close cooperative relations with many domestic university and Research Institute, and constantly develop new practical quality products.
Our company supplys different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
