| Prod Model: |
FLDF-315 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia |
| Diameter: |
1/2" , 3/4" , 1" , (Optional) |
| Function: |
Automatic Control |
| Certification: |
CE |
| Task: |
Adjust |
| Structure: |
Combination |
| Signal: |
Continuous |
| Mathematical Model: |
Linear |
| Material: |
Aluminum Alloy |
| Customized: |
Non-Customized |
| Condition: |
New |
Product Description
Product Description

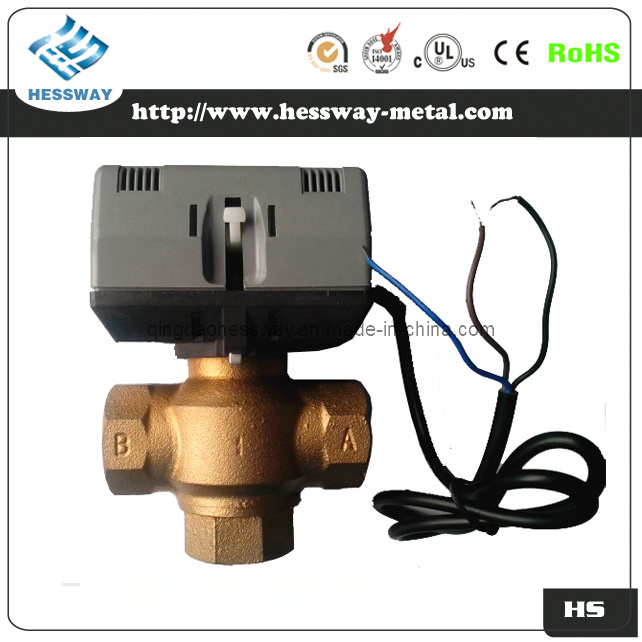

Electric Flow Control Valve with CE SIZE:1/2" , 3/4" , 1" , (Optional)
Used to control the flow of hot water,chill water in heating,cooling or air-conditioning applications,so as to control room temperature indirectlProduct
Characteristics
1.Motorized Valve(Two-way , Three-way) are made of Actuator and Valve Body.
2.It is set the limit relay contact inside to make the motor longer life;
3.The actuator and the valve body can be separated and connected in short time,in order to install it
more easily;
4.Provided with manual switch,the power will be recovered automatically when finishing the adjustment;
5.The configuration of the valve is unique,which can ensure the closeness of the valve
Technical indicators
Drive motor: hysteresis synchronous motor
Applicable medium: cold water, hot water
Connection line:3 extension lines
Body connection mode: in mid-december, pipe thread (can also be customized according to user demand)
Pieces of motor voltage and valve body to take over the form can be customized according to customer requirements
Material description
The valve body material: forged brass
Stem material: stainless steel (AISI302)
Sealing material: nitrile rubber (NBR)
Drive chassis: die casting aluminum alloy
Drive cover: flame retardant ABS engineering plastics
Drive working voltage | 12VAC 24VAC 110VAC 220VAC | Ambient temperature | 0°C~60°C |
| Power consumption | ≤ 5W | Applicable medium temperature | 1°C~95°C |
| Output torque | 1.5~6NM | Full stroke time "on" | 10s |
| Body pressure | 1.6 MPa | Full stroke time "off" | 5s |
| Allow differential pressure | ≤ 0.13 MPa | Connection line | 3 extension lines |
