Cold Rolling/Oxygen Free Copper
Product Description

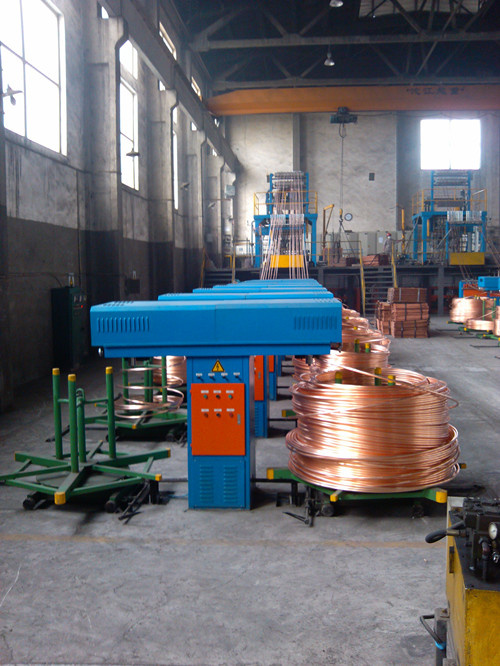

Oxygen Free Copper Rod Continuous Up-Casting Line & Cold Rolling Mill
IProcess Specification Put copper cathode over the furnace by the lifting system for baking→Adjust the feeding speed according to the casting speed. Feed the copper cathode into the melting furnace for melting (charcoal to be used for avoiding oxidization) → copper liquid flows into the transition part (charcoal is still needed to avoid oxidization) → Copper liquid flows into the holding furnace → Copper liquid flows into the crystallizer to be copper rods → copper rods enter into traction device for upward movement → Go through the output frame →copper rods go through the output frame (to separate each rod) → copper rods go through the tension frame ( to control the take-up speed) → copper rods go through the take-up machine,for coiling → Next process
IIMain Technical Data For The Equipment
No.
Name
specification
1
Model No
SH2417-I3
2
Annual capacity
12000tons
3
Furnace structure
body furnace (2 melting furnace,1 holding furnace)
4
Casting Strands
24
5
Casting rod diameter
17mm
6
Upward casting speed
0~1000mm/min
7
Annual working time
7920 hours
8
Liquid tracking precision
±2mm
9
Take-up coil standard
φ700mm×φ1500mm×1200mm
10
Copper melting velocity
1520kg/h
11
Copper melting power consumption
<350kwh/ton
12
Take-up form
manual adjust
13
Take-up plate driven approach
pushed by the copper rod
14
Material feeding method
whole piece of electrolytic copper cathode fed by electric hoist
15
Upward driven approach
driven by the AC servo motor, connected to the gapless synchronous cog blet
Rod clamping method
air clamping
Operation interface
data display, servo motor controlled by touch screen
IIIOther explanation 1. Requirement of raw material: 99.97% copper cathode The surface of the copper cathode should be clean, and there should be no electrolyte or greasy substance. There should be no "copper bean", if there is any, it must be removed . Both the surface and the edge should be smooth. If there is no mechanical feeding device for equipment, copper materials should be cut into small pieces for easy feeding.
2. Requirements of charcoal High-quality white charcoal (commonly known as steel charcoal, pear charcoal) Water content: 0.5~1% Other volatiles: ≤5% Charcoal particle size: 30~70mm Not allow sulfur, iron and charcoal had no calcination Fracture should be shiny, white light, sound crisp when breaks . Consumption:5kg/ton
3. Requirements of graphite flake Specification: 3299 or 5099 Granularity: 32 or 50 Require natural graphite flake Consumption: 0.5kg/ton
