| Prod Model: |
LLZ-1600-15 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

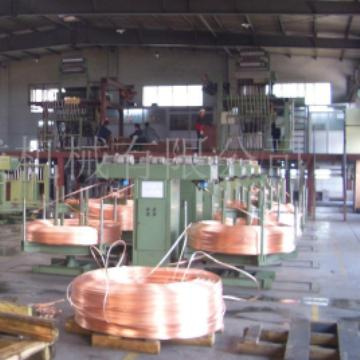

LLZ-1600-15 Al-Mg-Si, Al-Mg Alloy Rods Continuous Casting and Rolling Line:
1. The line adopts the advanced technology of the relative product of America SCR, France SCIM, and Italy PROPEZI, mainly to produce Mg-Al-Si rod with a dia. Of 9.5mm, and Mg-Al rod with a dia. Of 6.5mm which are used as electrical conductor of high intensity. These rods produced conform to the items of IEC, AST and GB, and have the competitive with the relative international products. The changed production line can be used to produce alloy rod which is used to produce rivets, or welding rod.
2. Induction heater meets the temperature requirement of the cast bar for rolling process. With the function of temperature riding, it can do heating and adjusting automatically.
3. Crystallizing wheel is in type of "H", on every side of which there is an adjustable nozzle spraying water to ensure the cast bar close and well distributed. The continuous rolling machine has a function of automatic feeding and rods stacking stop.
4. The production line is provide with the function and continuous quenching and fast cooling. The water pipeline makes a closed system by themselves with cooler, filter and indicator for main pipe pressing and temperature.
5. The transmission system is in type of DC motor fully digital speed adjusting. By adopting PLC anf touch screen for the complete line control, it can display the different kinds of temperatures, such as temperature of the cast bar, the beginning of rolling, final rolling emulsion, oil and water for quenching. Also it can check and display the running parameter of machines as well as indicate the breakdown.
6. The special Al-alloy continuous Casting and Rolling Line can be used to produce alloy rods, such as Al-Ti-B(grain refiner), Al-Ti-C(grain refiner), Al-Sr(modifier). There are product line which can be visited: Al-Ti-B alloy rod continuous casting and rolling line, Al-Ti-C alloy rod continuous casting and rolling line; Al-Sr alloy rod continuous casting and rolling line.
Shanghai Electrical Machinery Group Import & Export Co., Ltd. is the largest manufacturing and export base for small & medium-sized electric Machines in China. Founded in February 1956, as China's first specialized electric machine company, SEMC is now one of the national first-class big enterprise which has the right to deal with foreign trade of itself.
SEMC at present owns 25 factories and one science & education center (including a research institute and a vocational college) in which there are 16 state enterprise, 4 joint ventures and 5 collective enterprises, occupying a total area of 615, 000m³ With the floor space of 529, 000m² And the original valuse of fixed assets being RMB yuan 518 million. SEMC has 18, 000 employees, among whcih are 1, 422 technicians and engineers and 1, 719 administrative personnel, making up almost 7, 9% and 9.5% of the total staff members respectively.
SEMC has a long history, whose most factories have seventy or eightyyear's manufacturing experience. It has formed a huge family of products with 22 categories, 390 series and over 8, 000 specifications. Besides, the company produces lots of hi-tech products such as accelerator, driving mechanism for nuclear power station and so on. It boasts diversified products and its products have not only been sold and well received in domestic marker, but also in 69 countries and regions such as USA, Japan, Russia, France, Germany, etc. SEMC has established broad business links with many world-famous companies.
SEMC warmly welcomes both domestic and foreign customers to establish and develop business relationships and will assure you of the quality products and satisfactory services.
