Size:
50mm ~ 200mm
Working Pressure:
Low Pressure Pump
Position Of Pump Shaft:
Horizontal Pump
Impeller Number:
Single-Stage Pump
Influent Type Of Impeller:
Single Suction Pump
Pump Casing Combined:
Horizontal Pump
Product Description

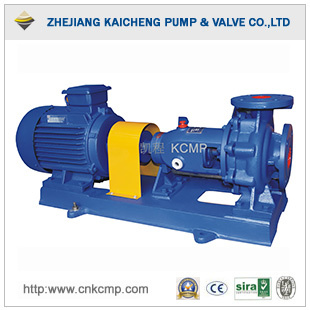

Packing Seal Clean Water Centrifugal Pump
Capacity: 8-460m3/h Head: 5-125m Speed:1450-2900r/min Material: Cast Iron
General : IS single stage single suction centrifugal clean water pump 1. Application : industry and city draining and the farmland irrigation. 2. Media : clean water or similar to clean water liquid with the 3. Max temperature is 80°C 4. Max inlet pressure is 0.6MPa.
Type description: IS100-65-200A IS-single stage single suction centrifugal clean water pump 100-the inlet diameter(mm) 65-the outlet diameter(mm) 200-the nominal name of the impeller(mm) A-A,B,C refer to the first, the second, the third trim after the impeller respectively.
Structure type : The IS single stage single suction centrifugal clean water pump is horizontal installation, the horizontal axial inlet and upward radial outlet.The structure of the pump is cantilever. It can take out the rotors parts without disassembling the inlet and outlet pipes when repairing. The pump is connected by the common flexible coupling or length flexible coupling with motor. The shaft sealing of the pump is soft packing sealing. The pump is the single-row radial ball bearing, dilute oil lubricate.
The rotating direction : Viewed from motor, the rotating direction of the pump is clockwise. The main parts materials: The materials of the flow parts are common gray casting iron. Supply range: Supply full set pump, motor, common foundation, coupling and the bottom valve, pressure back valve, sluice.
Type
Capacity
Head
Speed
Motor power
mm Size
m3/h
m
r/min
KW
Inlet
Outlet
IS50-32-125
12.5
20
2900
2.2
50
32
6.3
5
1450
0.55
50
32
IS50-32-160
12.5
32
2900
3
50
32
6.3
8
1450
0.55
50
32
IS50-32-200
12.5
50
2900
0.5
50
32
6.3
12.5
1450
0.75
50
32
IS50-32-250
12.5
80
2900
11
50
32
6.3
20
1450
1.5
50
32
IS65-50-125
25
20
2900
3
65
50
12.5
5
1450
0.55
65
50
IS65-50-160
25
32
2900
5.5
65
50
12.5
8
1450
0.75
65
50
IS65-40-200
25
50
2900
7.5
65
40
12.5
12.5
1450
1.1
65
40
IS65-40-250
25
80
2900
15
65
40
12.5
20
1450
2.2
65
40
IS65-40-315
25
125
2900
30
65
40
12.5
32
1450
4
65
40
IS80-65-125
50
20
2900
5.5
80
65
25
5
1450
0.75
80
65
IS80-65-160
50
32
2900
7.5
80
65
25
8
1450
1.5
80
65
IS80-50-200
50
50
2900
15
80
50
25
12.5
1450
2.2
80
50
IS80-50-250
50
80
2900
22
80
50
25
20
1450
3
80
50
IS80-50-315
50
125
2900
37
80
50
25
32
1450
5.5
80
50
IS100-80-125
100
20
2900
11
100
80
50
5
1450
1.5
100
80
IS100-80-160
100
32
2900
15
100
80
50
8
1450
2.2
100
80
IS100-65-200
100
50
2900
22
100
65
50
12.5
1450
4
100
65
IS100-65-250
100
80
2900
37
100
65
50
20
1450
5.5
100
65
IS100-65-315
100
125
2900
75
100
65
50
32
1450
11
100
65
IS125-100-200
200
50
2900
45
125
100
100
12.5
1450
7.5
125
100
IS125-100-250
200
80
2900
75
125
100
100
20
1450
11
125
100
IS125-100-315
200
125
2900
110
125
100
100
32
1450
15
125
100
IS125-100-400
100
50
1450
30
125
100
IS150-125-250
200
20
1450
18.5
150
125
IS150-125-315
200
32
1450
30
150
125
IS150-125-400
200
50
1450
45
150
125
IS200-150-250
400
20
1450
37
200
150
IS200-150-315
400
32
1450
55
200
150
IS200-150-400
400
50
1450
90
200
150
