| Price: | US $ 420/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | PDH |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: | Pdh Electric Hoist |
| Hook: | Heat Treated |
| Chain: | Fec or Made in China |
| Brake System: | Electromagnetic Brake |
| Over Load Limit: | Available |
| Trolley Type: | Available |
| Single Speed: | Yes |
| Double Speed: | Available |
| Low Headroom: | Available |
| Chain Bag: | Yes |
| Power Source: | Electric |
| Sling Type: | Chain |
| Application: | Lifting Equipment |
| Certification: | TUV |

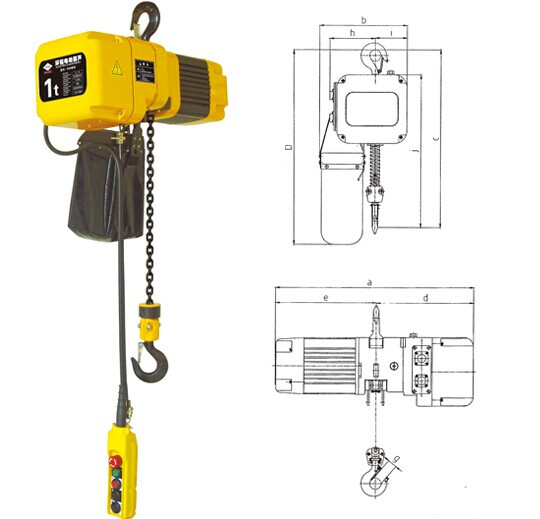

PDH Electric Chain Hoist
1. The introduction of PDH Electric Chain Hoist
1. Electric motor partial outer cover
They are made of high strength aluminum system through compression casting formation.
Features: Solid and light, Fast release heat, Continuous use, Enclosed structure. Can be used in the chemical plants, electroplating factories, and other places.
2. Side kind braking
This masterly structure ensure the hoist absolutly safty when the power off. And ensures it is safe when has excess load. Also it combine to the motor braking as the double brake system to strengthen security and durability.
3. Gear
The gear made of alloy steel and through the heat treatment
4. Antiphase protector
Advatages: When power-supply wiring mistake, the control circuit is unable to move.
5. Hooks
They are made by hot forging and heat treatment.
6. Chain
It is made of FEC80 ultra strong heat treatment alloy steel.
Advatages: It is safely approximately when used in the rain water, the sea water, under the chemical and other bad conditions.
7. ISO: M5 /FEM: 2AM Insulation grade: F
8. Protection class (hosit and push button): IP55
9. Powder supply: 3 phase, 200-600v, 50HZ
2. The Parameters of PDH Electric Chain Hoist as follow

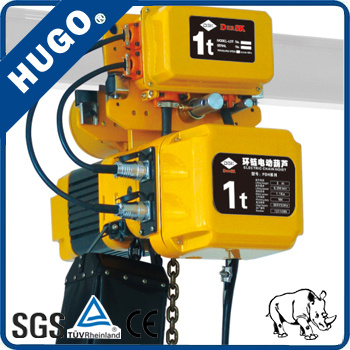

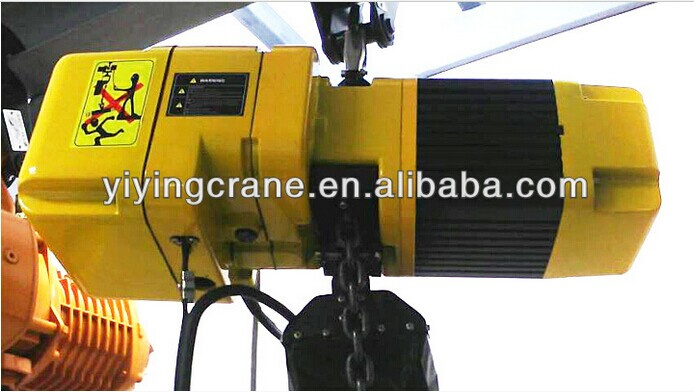

3. Detailed Pictures of PDH Electric Chain Hoist
We have specialized in machinery for more than 25 years, electric hoists, manual hoists, lever hoists, and so on, all of them is in our line. If you have any interest, please without hesitate contact us at once. Waiting for you.
|
Model Item |
PDH-A-0.5 | PDH-A-1 | PDH-A-2 | PDH-A-2.5 | PDH-A-3 | PDH-A-5 | ||
| Capacity ( t ) | 0.5 | 1 | 2 | 2.5 | 3 | 5 | ||
| Standard lifting height ( m ) | 3 | |||||||
| Lifting Speed ( m/min ) | 7.2 | 5.8 | 3.0 | 5.0 | 5.0 | 2.6 | ||
| Lifting Motor | Power (kw) | 8 | 8 | 14 | 7 | 10 | 5 | |
| Volt (V) | ||||||||
| Frequency (Hz) |
50 |
|||||||
| Chain Turns | 1 | 1 | 2 | 1 | 1 | 2 | ||
|
Chain specification mm |
Ø 6.3×19 | Ø8×24 | Ø8×24 | Ø11.2×34 | Ø11.2×34 | Ø11.2×34 | ||
| Test load (t) | 0.625 | 1.25 | 2.5 | 3.125 | 3.75 | 6.25 | ||
| Net Weight (kw) | 41 | 45 | 53 | 108 | 110 | 130 | ||
| Weight added with 1m higher (kg) | 1.1 | 1.4 | 2.8 | 2.8 | 2.8 | 5.6 | ||
