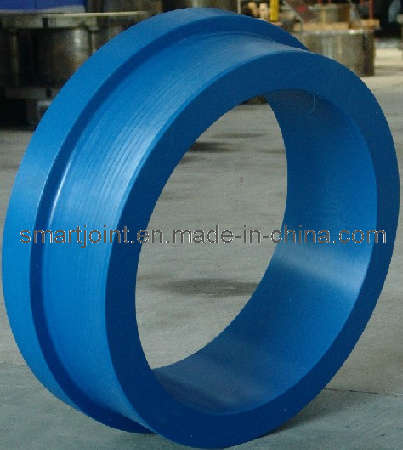

PE Fitting (1200mm) Large Size Flange

Name: PE Fitting (1200mm) Large Size Flange
Brand: china-castingforging.com
SKU: 672024132
Availability: InStock
Rating: 4.8 (145 reviews)

Price:	US $ 200/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Jilin Songjiang Smart Joint Co., Ltd.

Showroom Product Company Profile

Prod Model:	1200mm
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Standard:	DIN
Type:	Welding Flange
Manufacturing Way:	Casting
Material:	PE100

Product Description

Smart Joint starts fusion machine and PE fittings production since 1992.
Products are widely distributed all over the world.

We are dedicated to provide the excellent products and service to our customer, and making the high quality pipe line. Let the installation easier and faster is our target.

We take the customer's benefits is most important, the quality of our products is our life line.

After more than 8 years exporting, we have made so many friends and build the health relationships around the world. We are so proud that we are growing with friends together.

Smart Joint wants to find more partner, please contact for more info and FREE samples for evaluation.

Our major products includes:
1: A complete range of EF fittings(Advantaged products: EF coupler up to 1400mm, EF saddle up to 2500*1000mm, Small Tapping Tee)
2: A complete range of BF fittings( Advantaged products: Flange Stub up to 1600mm in different standard, tee/elbow up to 630mm, reducer/cap up to 1000mm)
3: A complete range of drainge fittings for toliet and kitchen
4: A complete range of butt fusion machine up to 2000mm( Specially developped for Australian and South Africa market FM225 and FM355, Advantaged products: Automatic Fusion Machine for gas industry)
5: A complete range of electrousion machine up to 1000mm( English, Russian, Spanish Operation)
6: overseas technical support and service.

Any interest, pls contact with us. or check our website www.smartjoint.net for more info.

Smart Joint developped full lines of PE flange stub from 40mm up to 1200mm with SDR11, SDR17.

We are HDPE fittings & fusion machine producer since 1992. We provide our customer a complete solution for PE pipe installation.

1: Butt fusion machine up to 2000mm
2: Electro-fusion machine up to 710mm
3: Butt fusion fitting up to 1200mm
4: Electro-fusion coupler up to 710mm

No.	DN	SDR	A	B	C	D	L	t
No.	DN	SDR	mm	mm	mm	mm	mm	mm
1	90	17	138	125	105	90	85	10
2	110	17	158	140	125	110	100	10
3	125	17	158	135	132	125	100	11
4	140	17	188	140	155	140	105	15
5	160	17	212	126	175	160	105	15
6	180	17	212	140	180	180	105	16
7	200	17	268	174	232	200	141	17
8	225	17	268	161	235	225	123	22
9	250	17	320	173	285	250	133	23
10	280	17	320	173	291	280	145	24
11	315	17	370	213	335	315	160	35
12	355	17	430	200	373	355	157	33
13	400	17	482	226	427	400	174	36
14	450	17	585	208	514	450	142	40
15	500	17	585	176	530	500	117	45
16	560	17	685	175	615	560	107	41
1	630	11	685	172	642	630	85	75
18	710	17	800	175	737	710	112	57
19	800	17	905	173	840	800	92	62
20	900	17	1005	175	944	900	85	82
21	1000	17	1110	170	1047	1000	65	90
22	1200	17	1280	181	1224	1200	80	92

No.	DN	SDR	A	B	C	D	L	t
No.	DN	SDR	mm	mm	mm	mm	mm	mm
1	40	11	78	80	50	40	50	7
2	50	11	86	94	61	50	64	7
3	63	11	102	93	75	63	63	8
4	75	11	122	103	89	75	73	10
5	90	11	138	125	105	90	80	12
6	110	11	158	140	125	110	95	15
7	125	11	158	135	132	125	95	17
8	140	11	188	130	155	140	100	20
9	160	11	212	126	175	160	100	21
10	180	11	212	140	180	180	100	25
11	200	11	268	174	232	200	135	27
12	225	11	268	161	235	225	118	31
13	250	11	320	173	285	250	125	34
14	280	11	320	173	291	280	140	38
15	315	11	370	213	335	315	155	43
16	355	11	430	200	373	355	152	48
17	400	11	482	226	427	400	168	54
18	450	11	585	208	514	450	135	61
19	500	11	585	176	530	500	110	68
20	560	11	685	175	615	560	100	76
21	630	11	685	172	642	630	110	86

Jilin Songjiang Smart Joint Co., Ltd was established in 1992.
We are specialised in fusion equipments and PE fittings. We can provide our customer with a complete solution for PE pipeline installation.

We are an ISO certified company. Fusion machine has CE certificate. HDPE fitting is going to be certified by DVGW Germany for both gas and water.
We have followed products:

Fusion Equipment
1: Hydraulic butt fusion machine up to 2000mm
2: Electro-fusion machine up to 800mm
3: Automatic butt fusion machine up to 315mm
4: Socket fusion kits up to 110mm
5: Other fusion tools

PE fitting

Spigot fitting up to 1200mm
Butt fusion reducer up to 1000mm
Butt fusion elbow up to 630mm
Butt fusion Tee up to 630mm
PE flange stub up to 1200mm

Electro-fusion fitting up to 800mm
Electro-fusion coupler up to 800mm
Electro-fusion tee, elbow, reducer up to 160mm
Electro-fusion saddle&Tapping

Sewage fitting for kitchen & Toliet
Irrigation fitting-PP compression fitting
