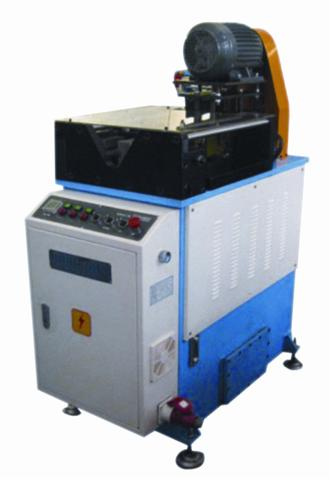

Pipe End Forming Machine
| Price: |
Negotiable |
| Min Order: |
1 |
Product Description
This machine is specially used for pipe end forming. Itis used for end expanding, sinking or sealing to meet requirement of production technology.
| Max pipe dia | Φ30mm |
| Max work thickness | 2.5mm |
| Work station | 1 |
| Work efficiency | 3—6sec/cycle |
| Electic control mode | PLC |
| Operation mode | Auto/Manual/Jog |
| Loading mode | manual |
| Driving mode | hydraulic |
| Work mode | cool upending and spinning |
| Heading travel | 100mm(adjustable) |
| Max clamping force | 4000kg |
| Max clamping travel | 50mm |
| Max stress | 4000kg |
| Tolerance of depth | 0.5mm |
| Tolerance of coaxial | 0.1mm |
| Power | 3 phase 350V50HZ |
| Hydro motor power | 3.75KW |
| Hydraulic system pressure | 8Mpa |
BRIEF: Our company lies in Pearl River Delta, Zhongshan City, Guangdong, China. Our factory is special in design and manufacture evaporator and condenser forming machine, pipe processing machine, motor producing machine, special machine for electronic machine. We can supply all the equipments according to the customer's requirement. We also have engineering and technical talents in the field of CNC control, engineering, PLC, servo, air power, hydraulic, sensor and CAD technology. We have ISO 9001 quality certificate and several patents. Our products also achieved many rewards.
MAIN PRODUCTS:
Evaporator & Condenser forming machine (special for air conditioner): Condenser bending machine, evaporator bending machine, evaporator cutting&forming machine, Hairpin bending machine, Short "U" bending machine, Automatic ring machine, Welding machine, Pipe expanding machine and so on.
Tube processing machine: CNC bending machine, copper tube chipless bending machine, pipe end processing machine, "T" hole processing machine, CNC spinning & pressing machine.
Special machine for motor produce:
Stator blur-removing machine, welding machine, pressing machine, and so on.
Special machine for electronic factory: Full automatic welding producing line, package machine for electronic components.
Other industrial equipment\Automobile steering system\Automobile toolings
Main customer
Gree, Midea, Changhong, Haier, Hisense, Sanhua, Electra, Rowa, Weiling, Xinchang, Yuetu, Guangzhou Honda, Samsung, Panasonic, Hualiang, Brazil, Israel, Viet Nam, Thailand, Pakistan.
4. Technical equipment:
4.1 Processing Machine:
4.1.1 Processing Machines of our company: Lathe 4, grinder machine 2, common milling machine 3, NC milling machine 1, Drilling machine 4, tooling grinder machine 1, welding machine 6, slotting machine 1, cutting machine 1, sawing machine 2.
4.1.2 Complement in our industrial zone:
A. Forging factory B. Special hydraulic system (machinery) factory C. Special factory for machining, grinder, milling, drilling cutting and so on. D. Special machine for NC machine and NC grinder machine
In our industry zone, complement equipment is complete and comprehensive machine capability is strong.
4.2 experiment & testing machine
Triple coordinate testing machine 1 set, single coordinate tester: 1 set, test projector 1 set, testing platform: 1 set, assembly platform: 1 set, program appliance: 1, roughness apparatus: 1, hardness apparatus: 1, vibration-removal press machine: 1, oscilloscope: 1, transistor meter.
4.3 office equipment
Computer: 26, lap computer, 10, printer: 5, copy machine: 2, Digital Camera: 2, Camera: 1, graph plotter 1, others 15.
4.4 transport equipment
Freight carrier: 1, car 3, fork truck 1, crane: 3.
5 technical staff
Machinery engineer: 11. (senior engineer 2)
Electrical engineer: 5 (senior engineer 1)
6 Production capability: Production value RMB30, 000, 000 per year
