| Prod Model: |
VTP32T/11-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mechanical Seal: |
Yes |
| Outlet Dia: |
32mm~250mm |
| Power: |
1.1kw~132kw |
Product Description

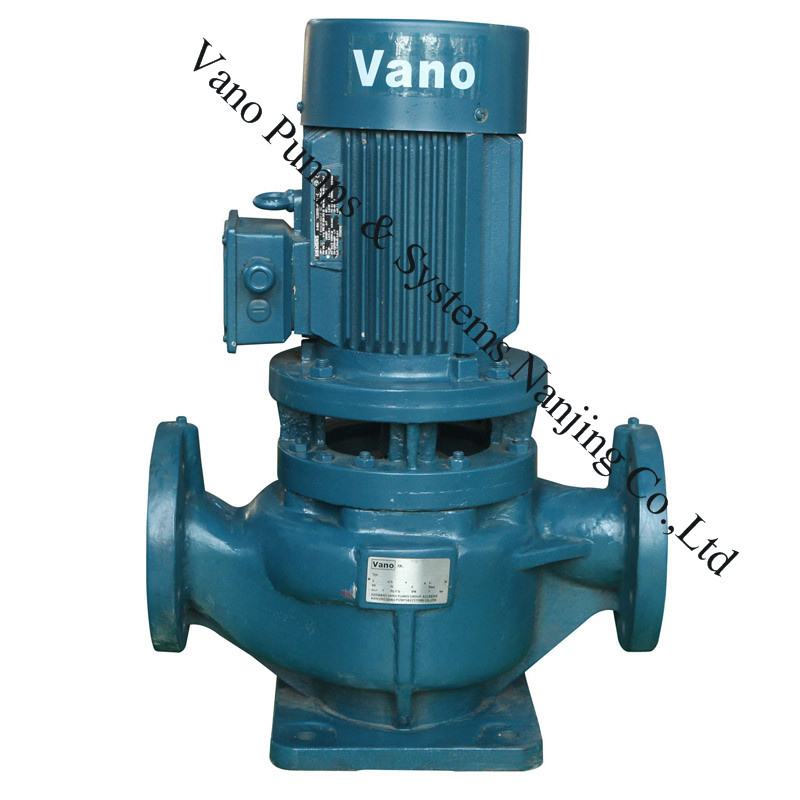

VTP series pipeline pumps are single-stage suction centrifugal pump with flange connection in both inlet and outlet, they are design by excellent performance hydraulic model, smooth channel ,less friction and high efficiency thanks to fine component casting.
Technical？Features？:？？？？？？？？？？
？？ * Max.？Q？:？120m3/h
？？ *？Max.？H:？？90m
？？ *？Liquid？Temperature？:-15ºC~+110ºC
？ ？* System？Pressure:12？bar？or？16bar？customized
？？？* Voltag:1~220/3~380V？,or？customerzied？
？ ？* Material？:Cast？Iron？
？
Application？:
？？？* heating and air-conditioning system's cold and hot water circulation;
？？ * water supply in civil use , industrial and agriculture;
？？？* water system in rural area;？
？？ *？boiler water supply;？
？
？？？？？
|
No. |
Component Name |
Material |
|
1 |
Pump Body |
HT200 ( cast iron) |
|
2 |
Impeller |
HT200/0Cr18Ni9 |
|
3 |
Pump Head |
HT200 |
|
4 |
Mechanical Seal |
Ceramics/graphite |
|
5 |
Guard plate |
Stainless steel |
|
6 |
Shaft |
stainless steel |
|
7 |
Deflation Bolt |
Copper H62 |
|
8 |
O ring |
NBR |
|
9 |
Nut |
Stainless steel |
|
10 |
Coupling |
Carbon Steel |
Nanjing E-commercial Fluid Technology Co., Ltd. is a company specializing in manufacturing, researching and selling of various water pumps based in Zhongshan Science & Technology Park, Liuhe District, Nanjing, China. The company was established in 2006 and as the growth of company and production, Nanjing Vano has its new garden-style factory Oct, 2013, which has greatly improve its production capacity and service.
Nanjing E-commercial, as an enterprise certifized by ISO9001 and ISO14001, adheres to first- rate German engineering technology and advanced design concept, provides multi-services in water and energy industries; Meanwhile, devoteing himself to researching and manufacturing pump products. Moreover, Nanjing Vano provides more confortable, more eco-friendly living enviroment by technology innovation, high quality products and flexible service.
Nanjing E-commercial provides high cost-effective and customized products, they are widely used in water supply of building, HVAC, water discharging, enviromental industries, fire-flighting, municipal engineering, water treatment and heavy industry.
