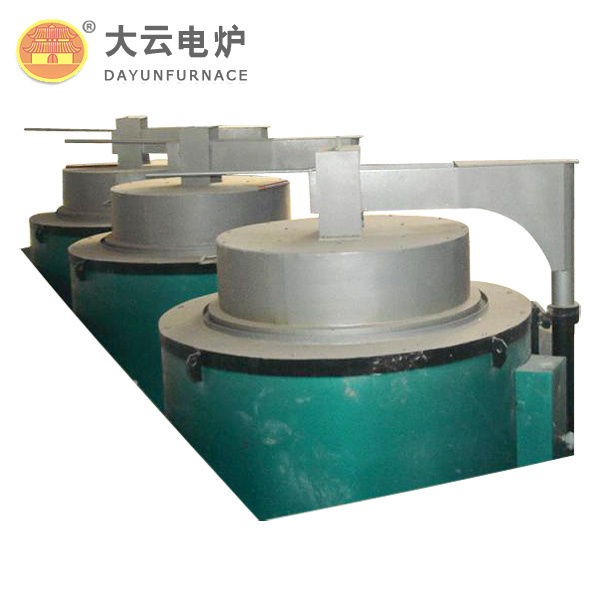

Pit Type Quenching Furnace

Pit Type Quenching Furnace
Price: Negotiable
Trade Terms: FOB,CIF
Min Order: 1set
Pay Type: L/C,T/T
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Deformation Temperature: Hot Forging
Molding Style: Forging
Molding Technics: Pressure Casting
Casting Method: Special Casting

Product Description

Application:
The quenching furnace is mainly used for heat treatment of annular parts.
Technical parameters
1). Rated power: 560KW± 10%
2). Rated temperature: 1000 degree celsius
3). Rated voltage: 380V 3P 50Hz
4). Effective working size: Outer diameter: 4300mm, inner diameter: 1800mm; Height: 1000mm;
5). Control accuracy: Plus/minus 1 degree celsius;
6). Furnace temperature evenness: Plus/minus 10 degree celsius;
7). Heating zone: 8 zones
8). Heating components connection method: YY
9). Control temperature method: PID control
Structure
1). The furnace is comprised of furnace body, 1 movable furnace cover, and control system.
2). The furnace cover is moved with the channel steel and guidance rail.
3). Heating components: 0C25AL5 high resistance wires
4). The refractory lining for the shell is made of pure fiber cotton. The furnace bottom is built with heavy refractory bricks for supporting the weight of workpieces.
To meet different requirements, we offer tailor-made service to our customer.

Model
Rated Power
(KW)
Power Rated Temperature
(degree celcius)
rack size
(mm)
phase voltage
(V)
RJ2-25-6 25 3 380 650 Φ 400× 500
RJ2-35-6 35 3 380 650 Φ 500× 650
RJ2-55-6 55 3 380 650 Φ 700× 900
RJ2-75-6 75 3 380 650 Φ 950× 1220
The company is located in the south of Tai Lake, where is the hinterland of "Yangtze River Delta". Shanghai in east, Hangzhou in south, and where is the convenient way of Su, Wan Zhe three provinces, and 318 National Road runs through the company.

The company has twenty years history, which is specialized in design and manufacture industrial heat treatment furnace. Our company is called the leading enterprise. The company area is known as "the hometown of electric furnace".

For many years, Huzhou technology bureau rated as hi-tech enterprise. The bank has been awarded AAA grade enterprise. The Huzhou industrial and commercial bureau has been rated AA-level "Credible" unit. The brand is well-known trademarks. Through the ISO9001: 2000 international quality management system certification.
