| Prod Model: |
Barrel Inner Diameter 120mm - 350mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Barrel Inner Diameter: |
120mm-350mm |
| Type: |
Sheet Extruder |
| Screw: |
Single-Screw |
| Automation: |
Automatic |
| Computerized: |
Computerized |
| Plastic Processed: |
PVC |
Product Description

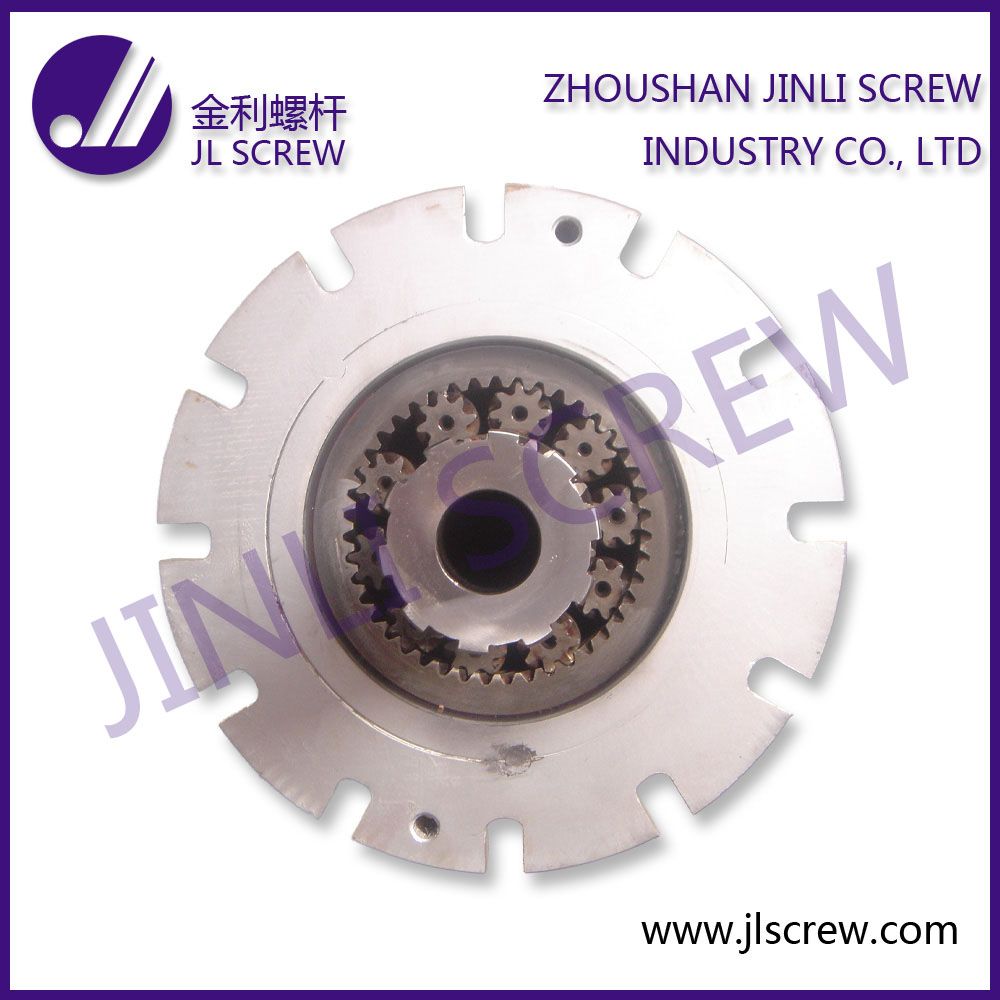

We can produce Planetary Screw & Barrel with a wide range sizes of barrel inner diameter, from ø 120mm to ø 350mm. All Planetary Screws & Barrels are made of high quality steel, 38CrMoAlA and 42CrMo, to ensure products have excellent fatigue strength. Sure, good product cann't be without good technics. We adopt advanced processing technics, such as heat treatment, high-frequency quenching, ionic nitriding treatment and so on. These important technics are the key to having good hardness, fine surface roughness and excellent linearity.
Our reliable and helpful screw & barrel is your best choice!
________________________________________________________________________________________
Terms and Conditions:
Means of transport: Ocean, Air, Express
Production time: About 20-30 days after we receive the advanced payment
Production Process:
Receiving orders — > Designing & Drawing confirmation — > Blanking Thermal refining — > Heat treatment — > Rough Turning — > Polishing — > Drilling for barrel — > Semi Finishing Machining — > Bimetallic welding — > Centrifugal casting for barrel — > Polishing — > Nitriding treatment(120 hours) or High frequency quenching — > Hard-chrome plating — > O. D. Grinding — > Honing for barrel — > Alignment — > Polishing — > Inspecting — > Packing & Shipping
________________________________________________________________________________________
Technical Information:
|
Specification: |
|
Barrel Inner Diameter: Φ 120 - 350mm |
|
|
|
Base Materials |
|
1. 38CrMoAlA (JIS SACM645) |
|
2. 42CrMo (AISI4140) |
|
|
|
Bimetallic Alloy Materials: |
|
1. Ni -based alloy |
|
2. Tungsten carbide |
|
|
|
Processing Technics: |
|
1. Heat treatment |
|
2. High-frequency quenching |
|
3. Nitriding treatment |
|
4. Ionic nitriding treatment |
|
5. Bimetallic alloy welding |
|
|
|
Technical Parameter: |
|
Nitriding layer depth: 0.3 - 0.7mm |
|
Nitriding hardness: 850 - 950HV |
|
Nitriding brittleness: ≤Grade 1 |
|
Surface roughness: Ra0.4 |
|
Linearity of screw: 0.015mm |
Zhoushan Jinli Screw Industry Co., Ltd was established in the year of 1998, we are a professional manufacturer of designing, researching and manufacturing all kinds of screws, barrels and other accessories for plastic and rubber machinery.
Our company is located in Zhoushan city, it covers an area of 12000sqm and has over 100 employees. We are well equipped with a variety of advanced machines, experienced R&D team, strict quality control system and perfect after-sale service. These conditions are ensuring us best quality and creating more and more long-term customers.
In order to keep high quality, we built quality control system strictly follow ISO9001: 2008 international Quality System and kept effective operating. As a result of our high quality products and outstanding customer services, we have gained a global sales network reaching Middle East, Southeast Asia, Eastern Europe, Africa, South America etc.
With the JinLi spirit of "based on sincerity, build a win-win situation", in the past twenty years, we developed together with customers. We believe our unremitting efforts will help us win greater markets and play a bigger role in this field in the future.
