| Prod Model: |
KM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Suitable Bottle Size: |
100ml-25L |
| Name: |
Pet Bottle Blow Molding Machine |
| Market: |
Pet Bottle Blow Molding Machine Market |
| Certificate: |
CE and ISO |
| After Sales Service: |
Engineers Available to Service Overseas |
| Service: |
Accept Special Design |
| Warranty: |
12 Months |
| Type: |
Extrusion Blow Molding Machine |
| Raw Material: |
PET |
| Making Method Of Parison: |
Stretch Blow |
| Automation: |
Automatic |
| Computerized: |
Computerized |
| Certification: |
ISO9001:2008 |
Product Description

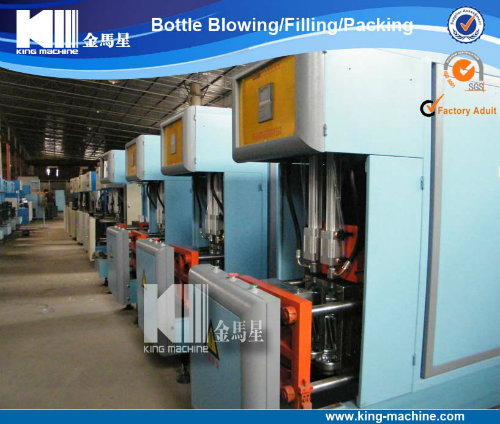

Plastic Bottle Blowing Making Machine China
Semi Automatic Bottle Blow Moulding Machine
Adopt the new type double bend arm and four pull rod-clamping structure(won the patent). Cross direction; Middle mould board is move parallel; The distance between two mold board is adjusted by the chain wheel. Thus the clamping force is very strong.
The machine frame is produced by the whole complete casting bottom, so that the machine is firm and running stable.
Adopt the straight slide way, reduce the friction and lengthen the life of the machine.
Double start working button, which is designed for avoiding for you injury.
Power saving design that can increase your profits.
The single direction of pre-form placing and bottle picking, which increase the output.
Sepregate type air controlling system, which is designed for avoiding waste pollution.
The stretching air cylinder is adjusted parallel from front to back, from left to right freely by regulator.
| Main parameter: |
| Model | KM-8Y |
| Container | Product material | PET |
| Volume | 0.1L-2L |
| Theoretical output | 800PCS/H |
| Preform length | 15mm-350mm |
| Preform inner diameter | φ5mm-38mm |
| Moulding | Max.mould plate Dimenstion(L x W) | 350x380mm |
| Max.mould thickness | 180mm |
| Clamping force | 45KN |
| Mould opening stroke | 160mm |
| Machine size and weight | Main machine (L x W x H) | 160x60x161KM |
| Main machine weight | 500Kg |
| Heater (L x W x H) | 187x63x145KM |
| Heater weight | 250Kg |
| Power | 17.5kw |
Zhangjiagang King Machine Co., Ltd. is a group company located in Zhangjiagang city Nanfeng industrial town, we have more than 15years experiences on beverage machinery and plastic machines.
We devote ourselves to the development, research and production of plastic machine and liquid food and beverage packing and filling industry and automatic blow molding machine in China.
Our Main products including: Mineral water and purified water producing line. Carbonated beverage producing line. 3 gallons& 5gallons producing line. Flat and tube UHT device, and CIP system. All the products are sold well in every province and city of the whole country and also exported to about thirty countries and areas with strong technical force, advanced equipment, scientific management system and perfect after-sales service.
Our Main Products Likes:
1000-15000bph water productione line
1000-15000bph juice production complete line
1000-15000bph carbonated drink production line
1000-15000bph wine bottling line
1000-9000tin cans/hr
5gallon bottle filling line
Stand alone machines also available
Welcome Customers Visit Our Company.
