| Prod Model: |
MR2015-015 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa |
| Type: |
Auto Bumper |
| Bumper Position: |
Front Bumper |
| High Precision: |
Long Life |
| Competitive Price: |
Short Lead Time |
| Material: |
Plastic |
Product Description
Basic Description

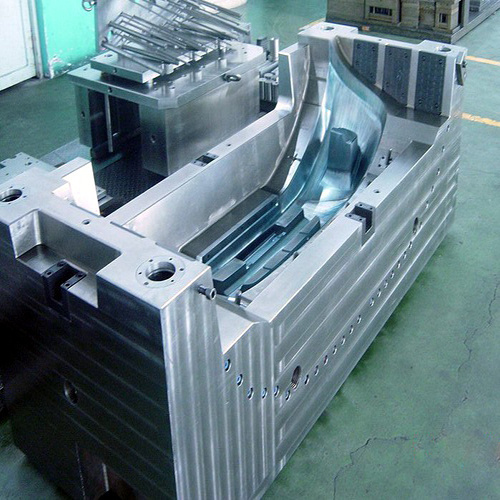

Injection mould for Auto part
Mould base: Hasco, DME, LKM etc.
Mould steel: S136, SKD61, NAK80, 718, P20, etc.
Mould life: vary with cavity &core steel, 300,000shots to 1,000,000 shots
Packaging: wooden case
Design software: NX_UG, Pro/E, Moldflow, AutoCAD
Surface treatment: Per customer's requirement
Gate: Side Gate, Sub Gate, Direct Gate, Hook Gate, Pin Point Gate, etc.
Plastic Material: ABS, ABS+PC, PP, PS, POM, PVC, TPE, TPU, PBT, PPE,Acetal,PA6.6, PA6, PA6.6+30GF,etc.
Mould doff way: doff plate, ejectors, air valves, hydraulic cylinder
Mould making procedure
1.Receiving infotrmation from customers(concept,sample,physical model,2D or 3D data)
2.Transfroming the infomation into 3D data modle by means of CAD system
3.To fine correct product design with 3D model assembly and product injection technique analysis
4.KBE system and CAE analysis assistance mould design optimization
5.Standard parts are purchased from qualified provider
6.CNC Milling and EDM manufacturing
7.Non-standard parts are manufactured by the qualified partner
8.The core and cavity moulds are p0olished and checking the parts of moulds from supplier and partner to ensure the quality them.
9.All qualified parts after achining and polishing work are being assembled
10.Mould-Trial and few samples produced
11.Injectiion sample delivery
12.Customer's opinion
13.Mould's final treatment
14.Providing all the injection moulding process paramenters and technical guides for customers
15.Moulds delivered and customer services provided as agreed
Our competitiveness
1.Plastic Injection Mold and molding service
2. We are manufacturer, so we have competitive price.
3. Diversified rich experienced skilled workers, so we have reliability quality
4, Design: we use the most advanced mould design software Auto CAD, UG...
5. Continuance service and support.
6. Equipment: High Precision CNC, High Speed Miller, Driller, EDM, EDW,
Grinding Machine, Engraving Machine, Injection Machine.
7. Our products possess the advantages of high precision long life and short cycle
With reasonable price, prompt delivery.
8. Mould design is subject to customers requirements.
9. Heat treatment of mould can be provided including quencher, nitridation,
FAQS on mould making
Q. I have an idea for a new product, but don't know if it can be manufactured. Can you help?
A. Absolutely, our skilled and experienced engineering team can quickly help you transform your idea into real drawings through AutoCad and UG software.
If required, we can supply you prototype sample at very low cost so that you can feel and touch your idea through the real product.
Q. My components have already been developed on CAD. Can you use the drawings?
A. Yes! DWG, DXF, IGES, Solidworks and Rhino files can all be used to generate quotes, models and mould tools - this can save time and money in producing your parts.
Q. Can I test my idea/component before committing to mould tool manufacture?
A. Yes, we can use CAD drawings to make models for design and functional evaluations.
Q. What type of plastic is best for my design/component?
A. Materials selection depends on the application of your design and the environment in which it will function. We will be happy to discuss the alternatives and suggest the best material.
Q. What type of mould tool do I need?
A. Mould tools can be either single cavity (one part at a time) or multi-cavity (2,4, 8 or 16 parts at a time). Single cavity tools are generally used for small quantities, up to 10,000 parts per year whereas multi-cavity tools are for larger quantities. We can look at your projected annual requirements and recommend which would be best for you.
Q.Ok, I've decided to go ahead with my project. How long will it take to get my parts?
A. It can take about 5 weeks to have the mould tool manufactured depending on the part's complexity and the number of impressions (single or multi). After we have received final approval by you of the new tool, you can expect delivery of parts within 3-5 days.
MR Mould Introduction
With over tens of years experience in the plastic industry, Mingrui Mould Co., Ltd has become a one-stop source for all your custom injection molding needs. No matter what your need is, if it's plastic, we can help. If you can dream it, we can build it.
From the simplest to the most technical of parts, we can assist you in your product design and your tooling choice. Furthermore, our extensive experience in plastic (Nylon, ABS, HDPE, PVC, PET, Polycarbonate etc.), enable us to assist you in making the ideal plastic resin choice for your parts.
Our tooling department conceives and manufactures custom quality molds that are built to last. A combination of our experienced molding team, our extensive support equipment and our up-to-date molding machines (with tonnage ranging from 28 to 1600 tons), allow us to produce parts molded of the most basic commodity materials to the most technical of engineering grades.
Our ability to mold on time, consistent, precise, quality parts at a competitive price has enabled us to attain an important customer base in the electronics, telecommunications, packaging and sporting equipment industries. For further information, please do not hesitate to contact us.
Since 2002, Mingrui Mould Co.,Ltd has been a specialist in the custom molding of plastic injection molded products. Our number one priority is customer satisfaction, which we achieve by molding on time consistent quality parts, at a competitive price.
Everyday we strive to achieve excellence in the plastic injection molding industry.
Second Operations: Pad-printing, Silk Printing, Spray painting , Ultrasonic welding, Part Assembly.
With over tens of years experience in the plastic industry, Mingrui Mould Co., Ltd has become a one-stop source for all your custom injection molding needs. No matter what your need is, if it's plastic, we can help. If you can dream it, we can build it.
From the simplest to the most technical of parts, we can assist you in your product design and your tooling choice. Furthermore, our extensive experience in plastic (Nylon, ABS, HDPE, PVC, PET, Polycarbonate etc. ), enable us to assist you in making the ideal plastic resin choice for your parts.
Our tooling department conceives and manufactures custom quality molds that are built to last. A combination of our experienced molding team, our extensive support equipment and our up-to-date molding machines (with tonnage ranging from 28 to 1600 tons), allow us to produce parts molded of the most basic commodity materials to the most technical of engineering grades.
Our ability to mold on time, consistent, precise, quality parts at a competitive price has enabled us to attain an important customer base in the electronics, telecommunications, packaging and sporting equipment industries. For further information, please do not hesitate to contact us.
Since 2002, Mingrui Mould Co., Ltd has been a specialist in the custom molding of plastic injection molded products. Our number one priority is customer satisfaction, which we achieve by molding on time consistent quality parts, at a competitive price.
Everyday we strive to achieve excellence in the plastic injection molding industry.
Second Operations: Pad-printing, Silk Printing, Spray painting, Ultrasonic welding, Part Assembly.
